Order no.: 0162610

ESP-232/WS

Weatherproof 2-way PA wall speaker

100 V PA speaker with excellent sound quality
13 cm polypropylene mid-bass driver and dome tweeter
4 power taps
Power selector switch with 8 Ω operating position
Excellent efficiency for such a compact speaker
White plastic version with white-painted aluminium grille, modern design
Supplied with matching metal wall brackets

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

continue

About

Weatherproof 2-way PA wall speaker

100 V PA speaker with excellent sound quality
13 cm polypropylene mid-bass driver and dome tweeter
4 power taps
Power selector switch with 8 Ω operating position
Excellent efficiency for such a compact speaker
White plastic version with white-painted aluminium grille, modern design
Supplied with matching metal wall brackets

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Specifications

Active/passive	passive
Transmission technology	100 V or low-impedance
Total power rating	50 W
Power rating (RMS)	30/20/10/5 W (100 V)25 W (8 Ω)
Impedance	8 Ω

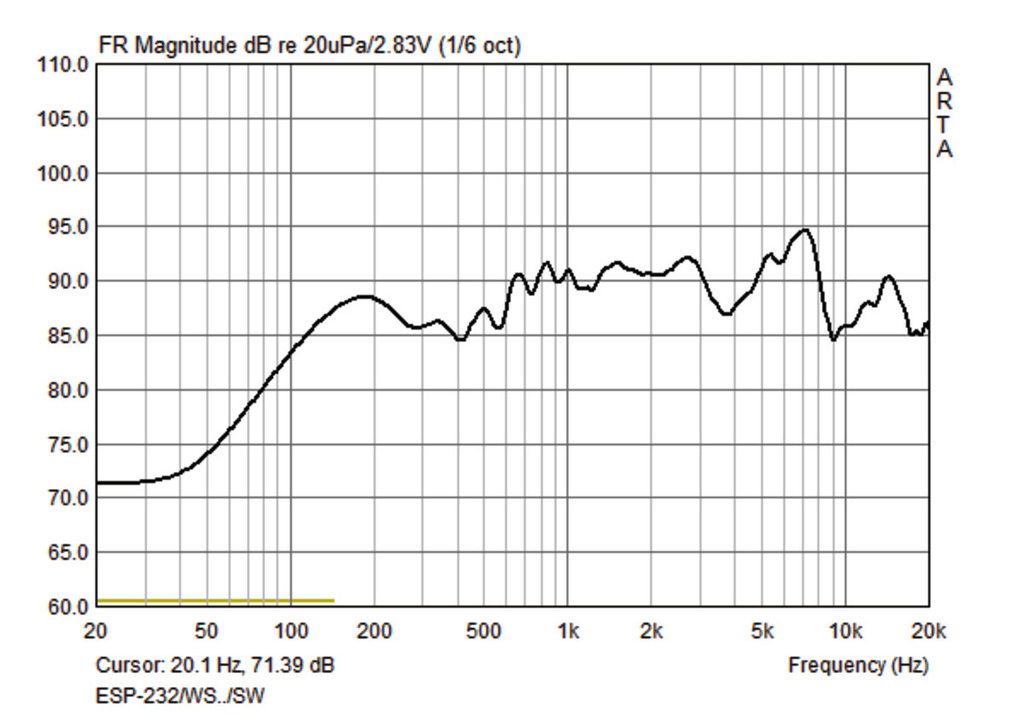

Frequency range	75-20,000 Hz
Number of speakers	2
Speaker size	13 cm (5")
SPL	89 dB

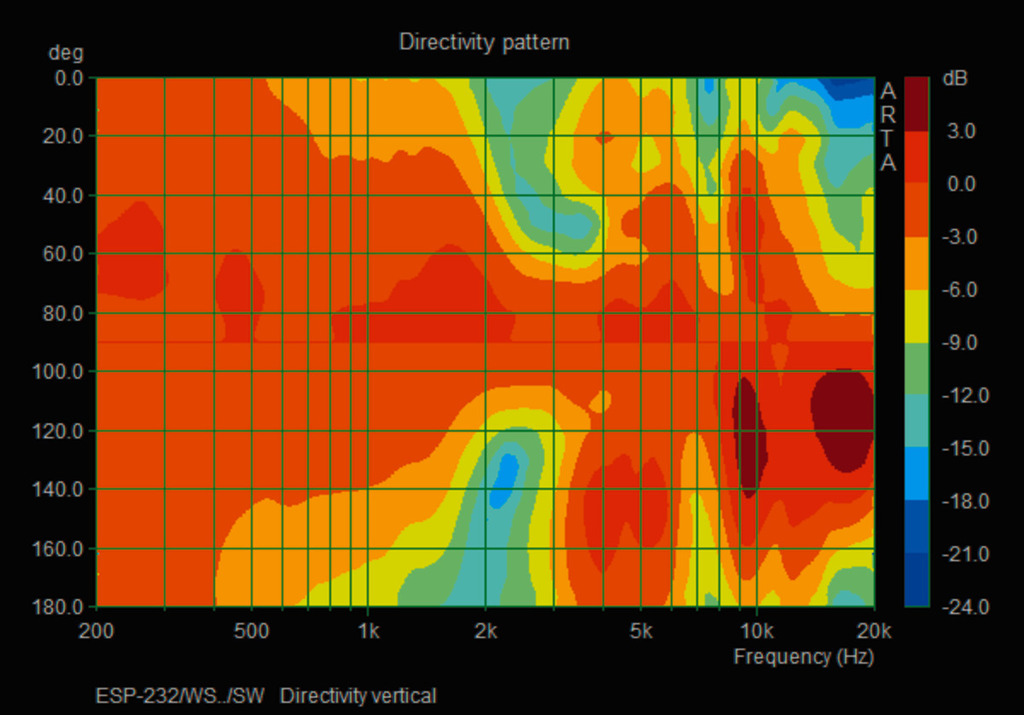

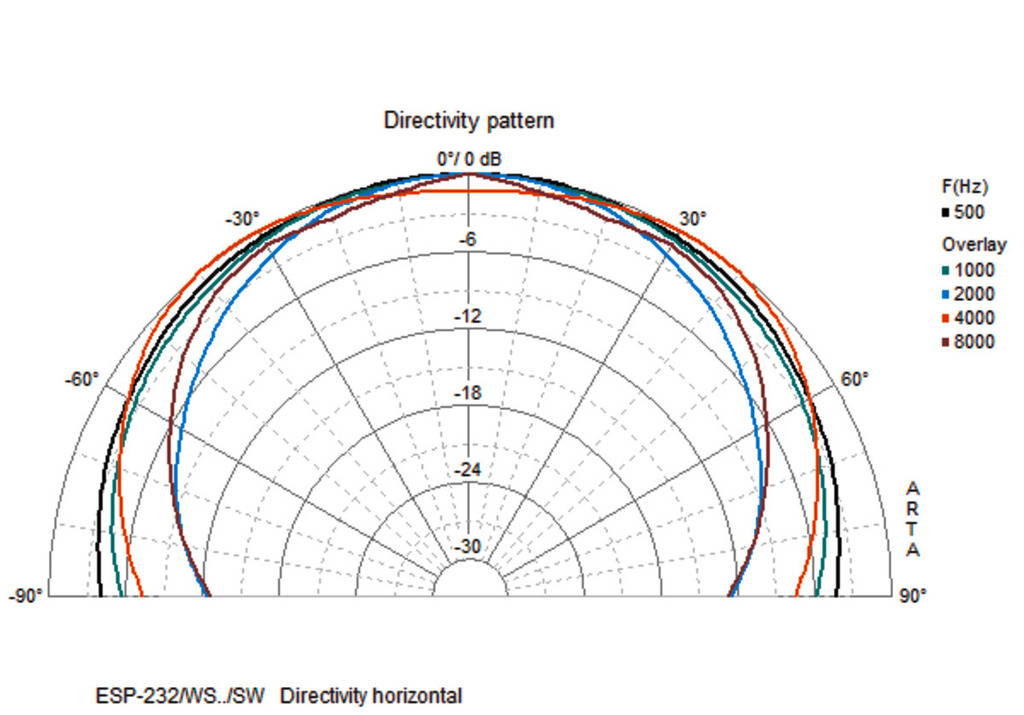

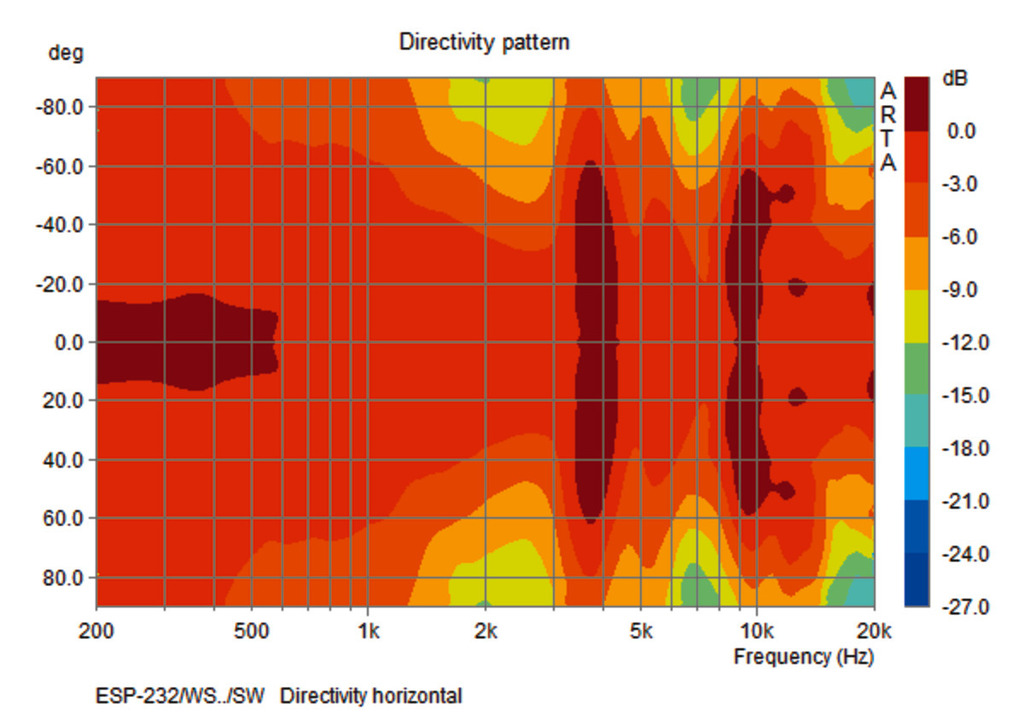

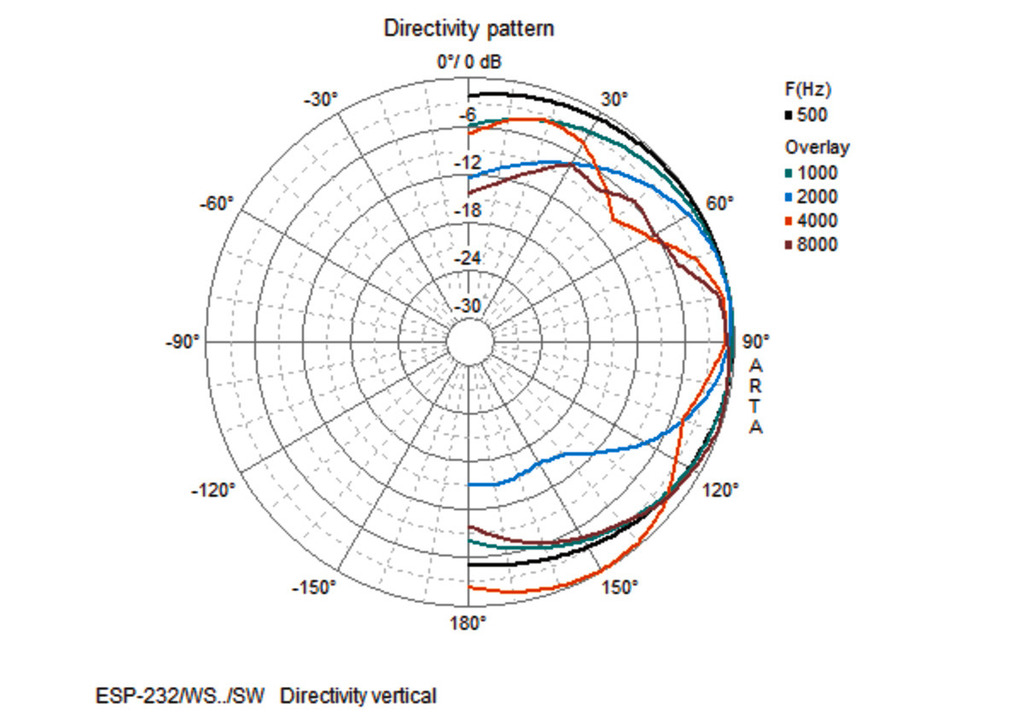

Radiation angle/beam angle	H: 120°/V: 100°
Radiation angle, horizontal	120°
Radiation angle, vertical	100°
Housing material	plastic
Colour	white
Mounting device	mounting bracket
Protection class	IP55
Admiss. ambient temp.	-20 °C to +50 °C
Dimensions	160 x 260 x 180 mm
Width	160 mm
Height	260 mm
Depth	180 mm
Weight	2.3 kg
Inputs	spring-load. speaker term.
Packaging dimensions (W x H x L)	0.205 x 0.19 x 0.3 m
Gross weight	2.8 kg
Net weight	2.44 kg

EAN code	4007754212945
Net weight	2.44 kg
