Order no.: 0163400

EX-40/4

P430 P1990
Order no.: 0163400

EX-40/4

Audio exciter/resonator, 20 W, 4 Ω (/4)
Excitors are suitable for reproducing music and speech via surfaces capable of vibrating. They are simply stuck onto doors, closet doors, shelves, table tops, lightweight partition walls, ceiling panels or a wide variety of other surfaces that can be set into vibration, and, together with these surfaces, produce an impressive sound throughout the entire room.
  • Depending on the mounting surface, very wide-band reproduction with astonishing richness of sound
  • High sound quality
  • High power capability
  • Suitable for discreet sound reinforcement, e.g. on doors, closets, shelves and glass panes
  • Supplied with a 3M adhesive pad
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
continue

About

Audio exciter/resonator, 20 W, 4 Ω (/4)
Excitors are suitable for reproducing music and speech via surfaces capable of vibrating. They are simply stuck onto doors, closet doors, shelves, table tops, lightweight partition walls, ceiling panels or a wide variety of other surfaces that can be set into vibration, and, together with these surfaces, produce an impressive sound throughout the entire room.
  • Depending on the mounting surface, very wide-band reproduction with astonishing richness of sound
  • High sound quality
  • High power capability
  • Suitable for discreet sound reinforcement, e.g. on doors, closets, shelves and glass panes
  • Supplied with a 3M adhesive pad
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Specifications

Impedance (Z) 4 Ω
Transmission technology cable
Frequency range fx-20,000 Hz
Resonant frequency (fs) 300 Hz
Power rating (RMS) 20 W
Peak music power output (MAX) 40 W
Max. rated SPL no data
Voice coil diameter Ø 32 mm
Voice coil former Kapton

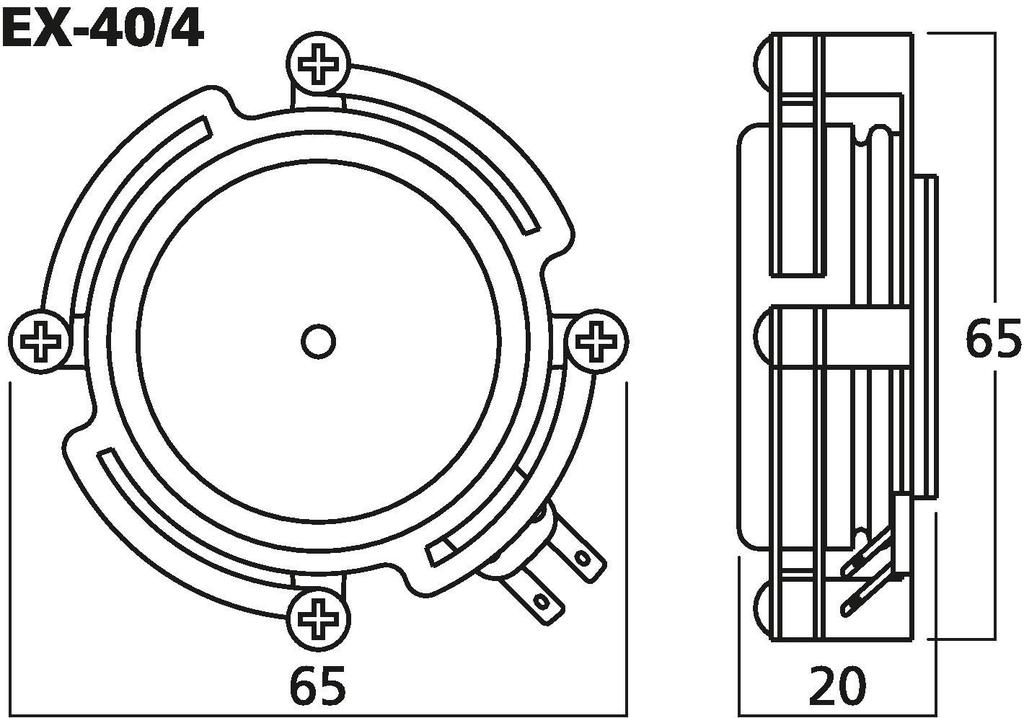

Dimensions Ø 61 mm x 20 mm
Outside diameter Ø 61 mm
Width 61 mm
Height 61 mm
Depth 20 mm
Colour black/silver
Admiss. ambient temp. 0-40 °C
Weight 0.129 kg
Packing unit 1
Packaging dimensions (W x H x L) 0.08 x 0.033 x 0.08 m
Gross weight 0.144 kg
Net weight 0.129 kg
EAN code 4007754253726
Net weight 0.129 kg
