Order no.: 0257620

RACK-15NV

P1380

Order no.: 0257620

RACK-15NV

Equipment rack, 15 RU,

for 482 mm (19") devices.

Sheet steel version
Light grey powder coating (RAL 7035)

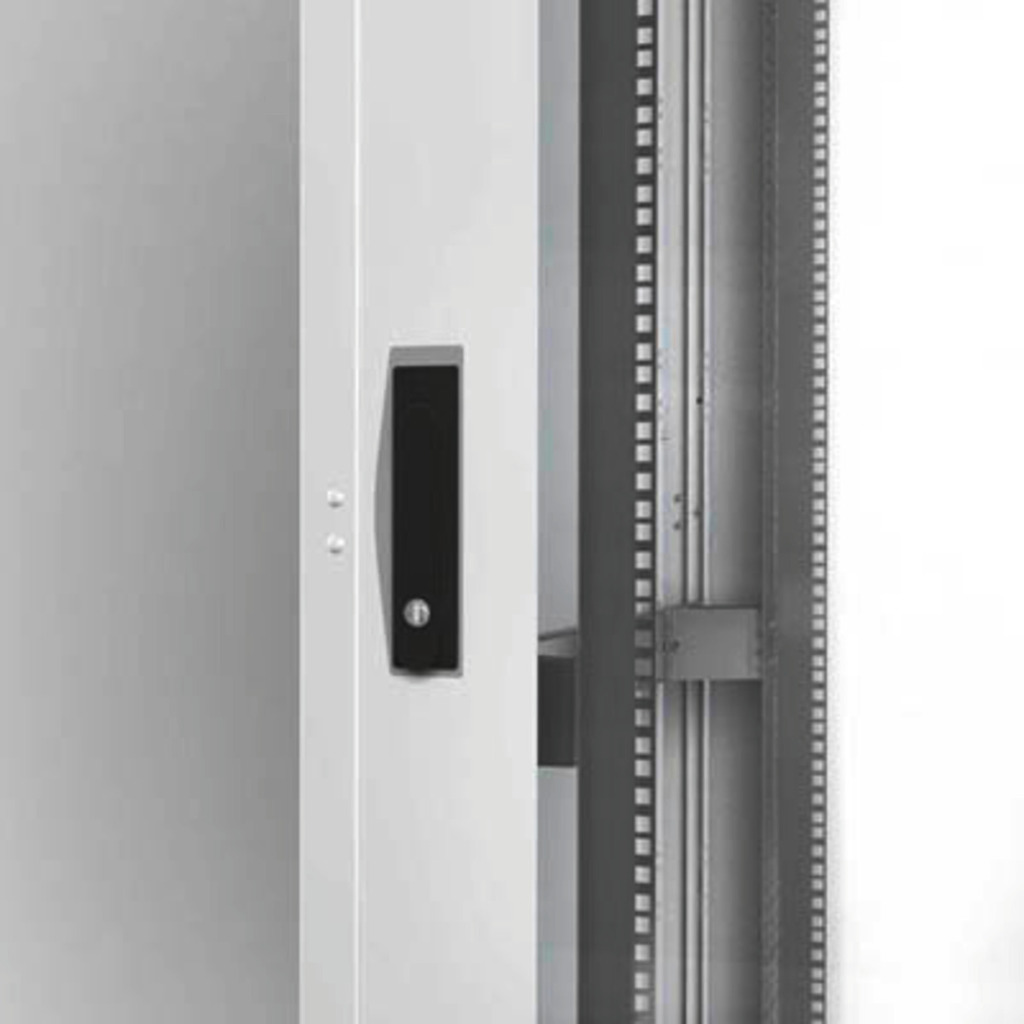

Front door with safety glass and lockable swinghandle
Hinges can easily be changed for door to be opened to the left or to the right
Side walls and rear wall can be removed and locked
Supplied with earthing set, 4 levelling feet and 28 mounting kits

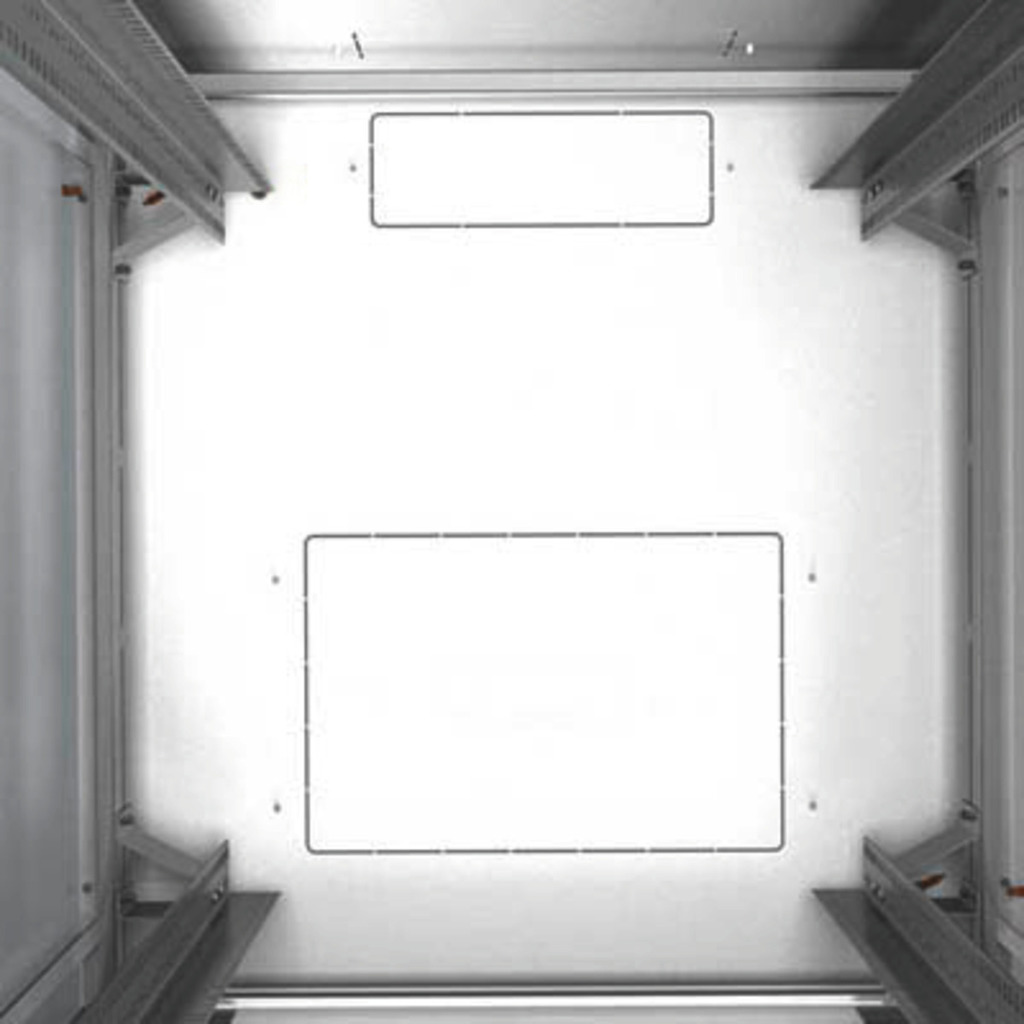

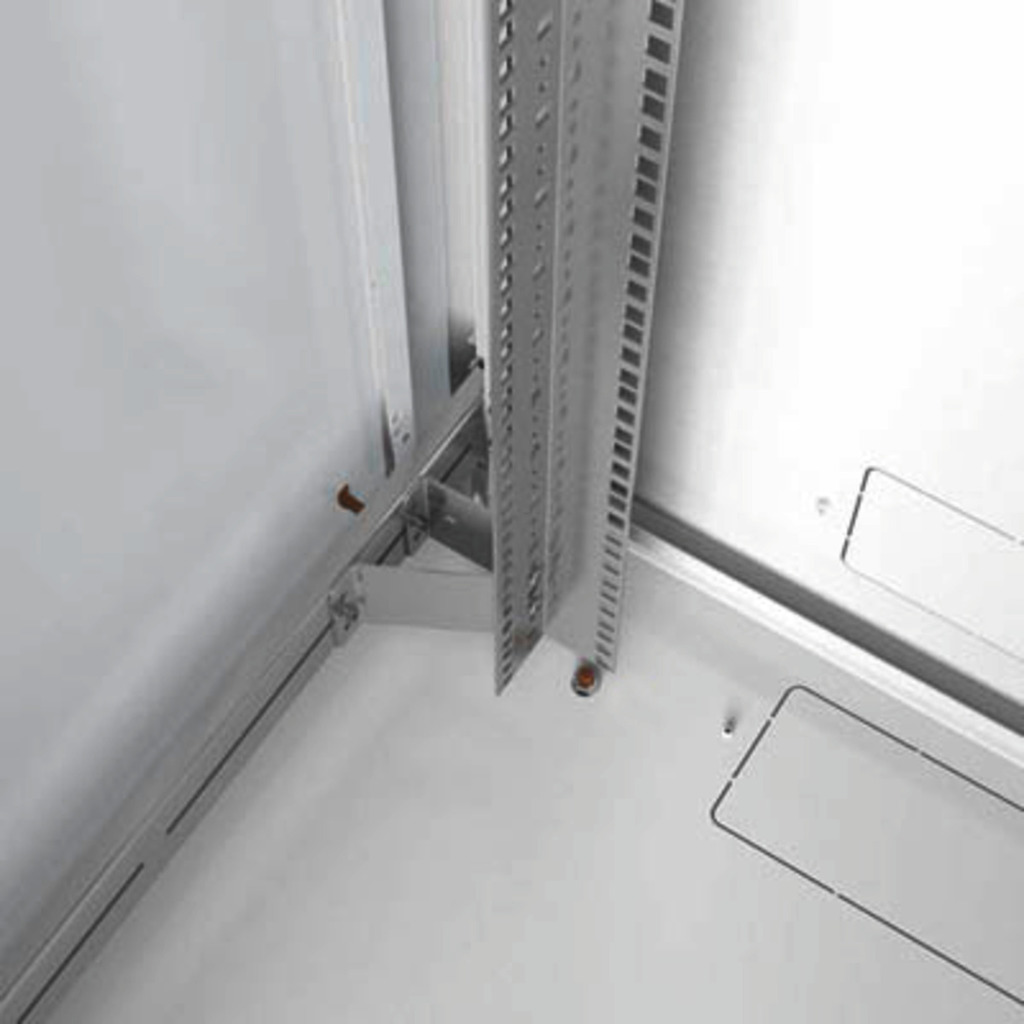

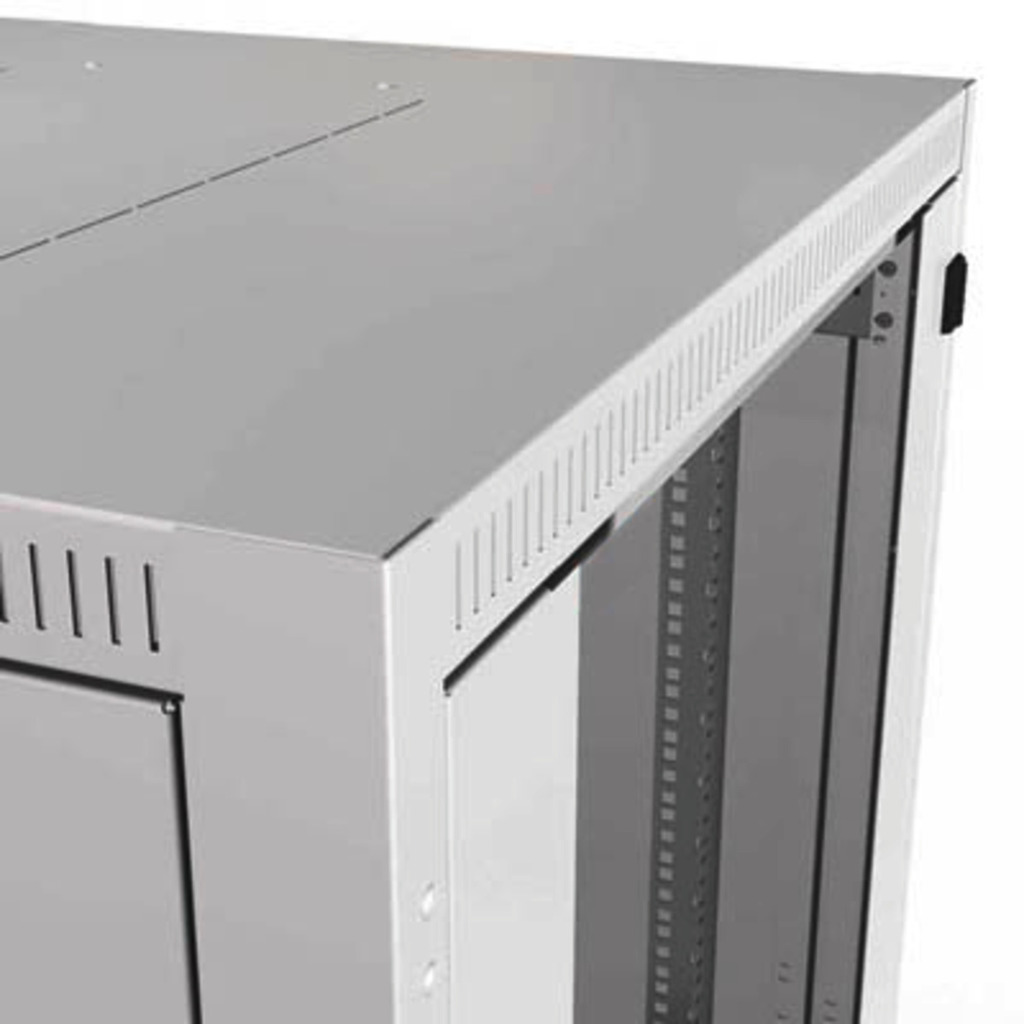

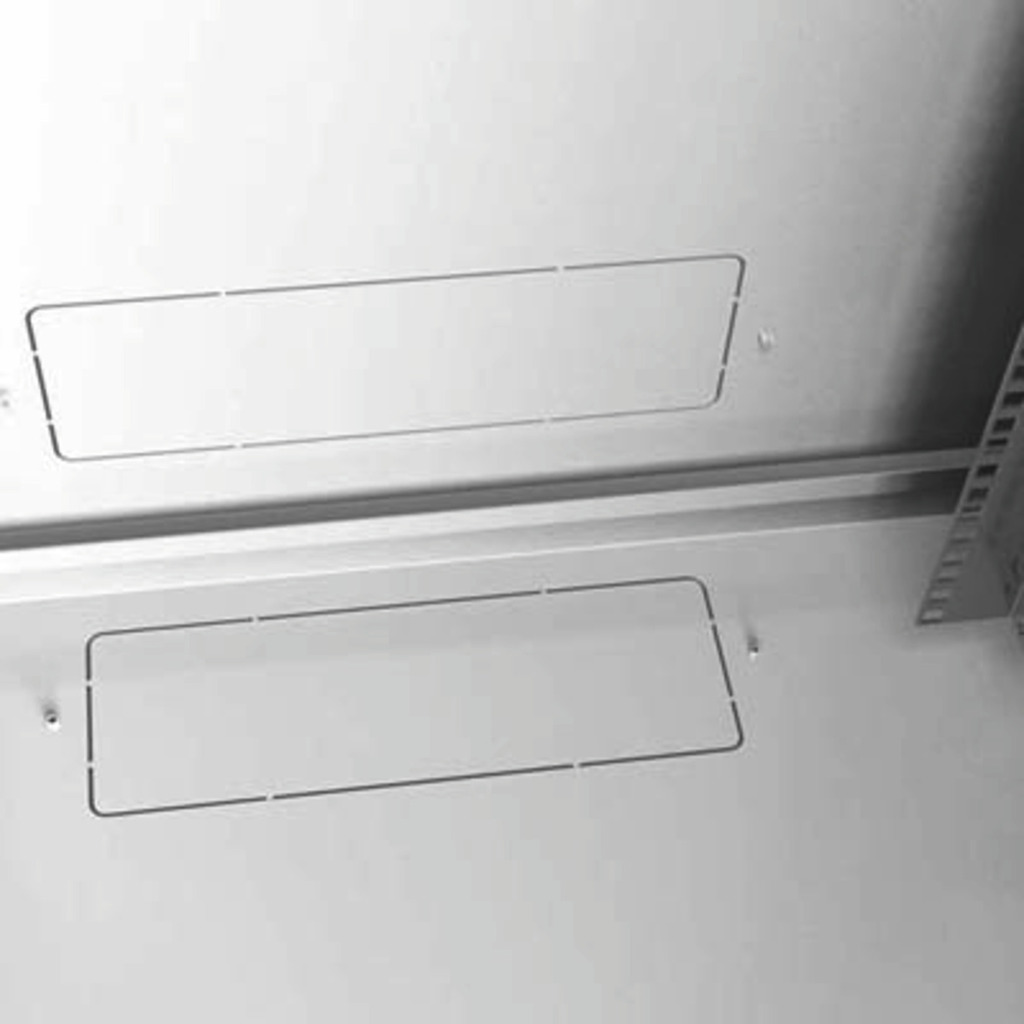

Image similar.

continue

About

Equipment rack, 15 RU,

for 482 mm (19") devices.

Sheet steel version
Light grey powder coating (RAL 7035)
Front door with safety glass and lockable swinghandle
Hinges can easily be changed for door to be opened to the left or to the right
Side walls and rear wall can be removed and locked
Supplied with earthing set, 4 levelling feet and 28 mounting kits

Image similar.

Specifications

Intended use/capacity	equipment cabinet, rack
Size	482 mm (19")
Rack units, RU	15
Colour	light grey (RAL 7035)
Version	stand-alone
Material	sheet steel, 1.5 mm
Mounting accessories	earthing set, 28 mounting kits
Usable depth	590 mm
Outside dimensions	600 x 778 x 600 mm
Width	600 mm
Height	778 mm
Depth	600 mm
Max. load capacity	300 kg
Weight	38 kg

EAN code	4007754250947
Net weight	38 kg
