Order no.: 0333050

AH-102/SW

Order no.: 0333050

AH-102/SW

Utility Cases Extruded u-shaped profile with insertion grooves for printed circuits Exchangeable front panel with protective foil, 1.5 mm aluminium sheet metalMat black ABS plastic side covers Material surface: black Total height: 36.5 mm

continue

About

Utility Cases

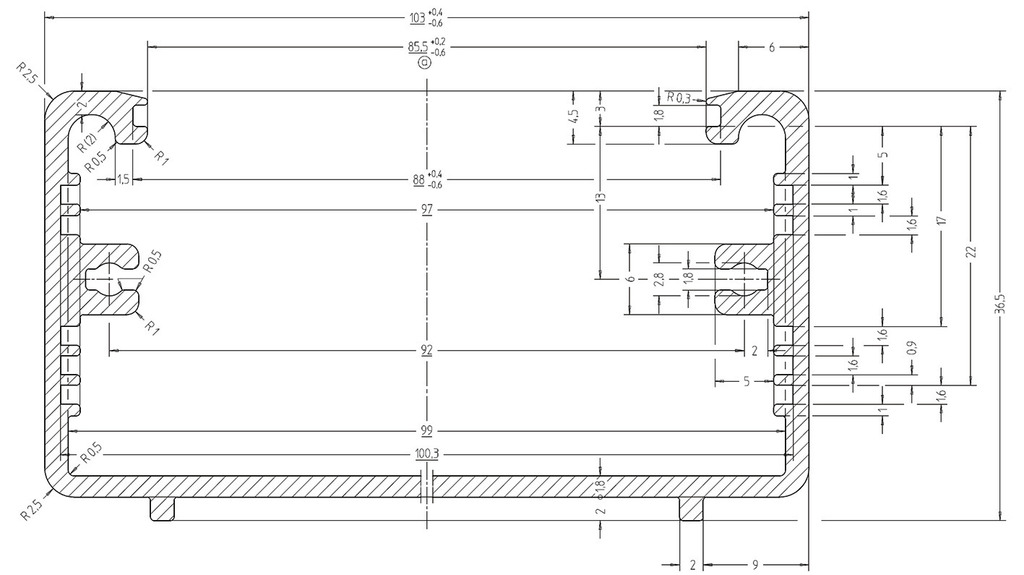

Extruded u-shaped profile with insertion grooves for printed circuits
Exchangeable front panel with protective foil, 1.5 mm aluminium sheet metal
Mat black ABS plastic side covers
Material surface: black
Total height: 36.5 mm

Specifications

Intended use	case
Material	aluminium sheet, ABS plastic, black
Dimensions	103 x 36.5 x 167 mm
Width	103 mm
Height	36.5 mm
Length	167 mm
PCB dimensions	100 x 160 mm
Weight	248 g
