Order no.: 0330090

AH-62

Order no.: 0330090

AH-62

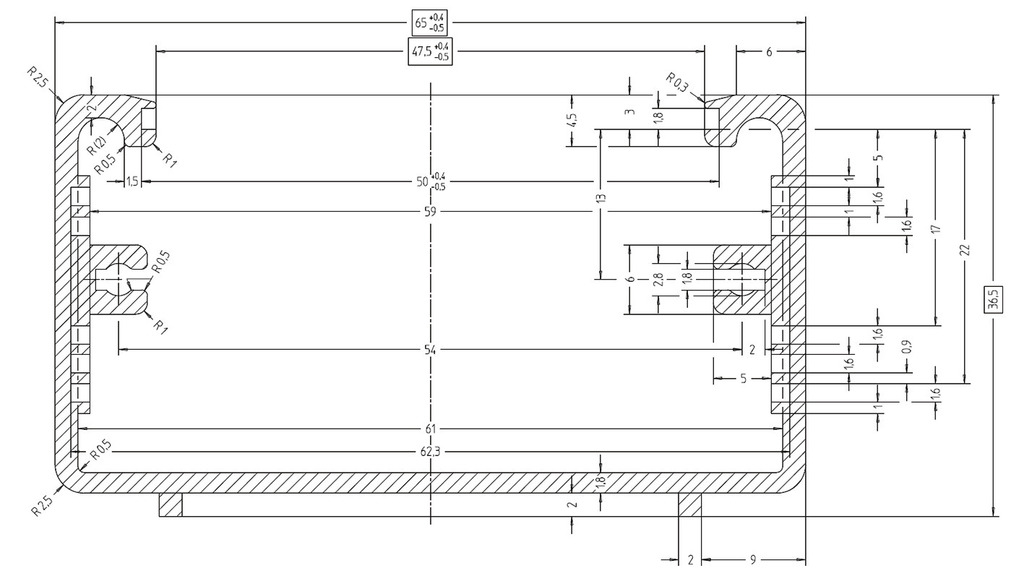

Utility case Extruded u-shaped profile with insertion grooves for printed circuits Exchangeable front panel with protective foil, 1.5 mm aluminium sheet metal Mat black ABS plastic side covers Material surface: anodised and mat etchedTotal height: 36.5 mm

continue

About

Utility case

Extruded u-shaped profile with insertion grooves for printed circuits
Exchangeable front panel with protective foil, 1.5 mm aluminium sheet metal
Mat black ABS plastic side covers
Material surface: anodised and mat etched
Total height: 36.5 mm

Specifications

Intended use	case
Material	aluminium sheet, ABS plastic
Dimensions	65 x 36.5 x 167 mm
Width	65 mm
Height	36.5 mm
Length	167 mm
PCB dimensions	62 x 160 mm
Weight	189 g
