Order no.: 0110210

AT-52H

Order no.: 0110210

AT-52H

L-pad attenuator
  • Level control for speakers of medium power capability
  • Mono version
  • With push-on knob
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
continue

About

L-pad attenuator
  • Level control for speakers of medium power capability
  • Mono version
  • With push-on knob
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Specifications

Impedance 8 Ω ± 20%
Channels mono
Attenuation 0 dB to ∞ dB
Attenuation direction counterclockwise
Turning angle 300° ± 5°
Power rating 50 W
Admiss. ambient temp. 0-40 °C

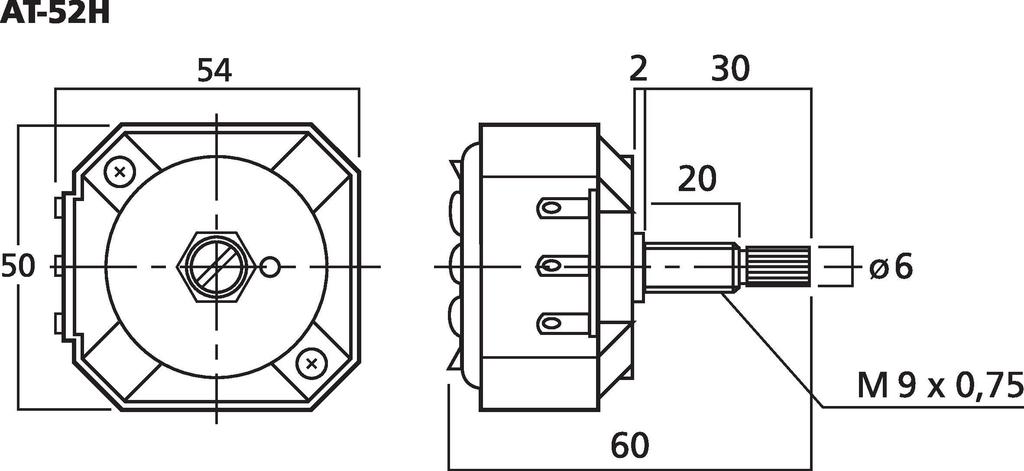

Dimensions see drawing
Weight 89 g
EAN code 4007754188615
Net weight 0.089 kg
