Order no.: 0110260

AT-62H

Order no.: 0110260

AT-62H

L-pad attenuator
  • High-performance level control
  • Plastic carrier
  • Mono version
  • With push-on knob
  • Thread length: 10 mm
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
continue

About

L-pad attenuator
  • High-performance level control
  • Plastic carrier
  • Mono version
  • With push-on knob
  • Thread length: 10 mm
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Specifications

Impedance 8 Ω ± 20%
Channels mono
Attenuation 0 dB up to ∞ dB
Attenuation direction counterclockwise
Turning angle 300° ± 5°
Power rating 100 W
Admiss. ambient temp. 0-40 °C

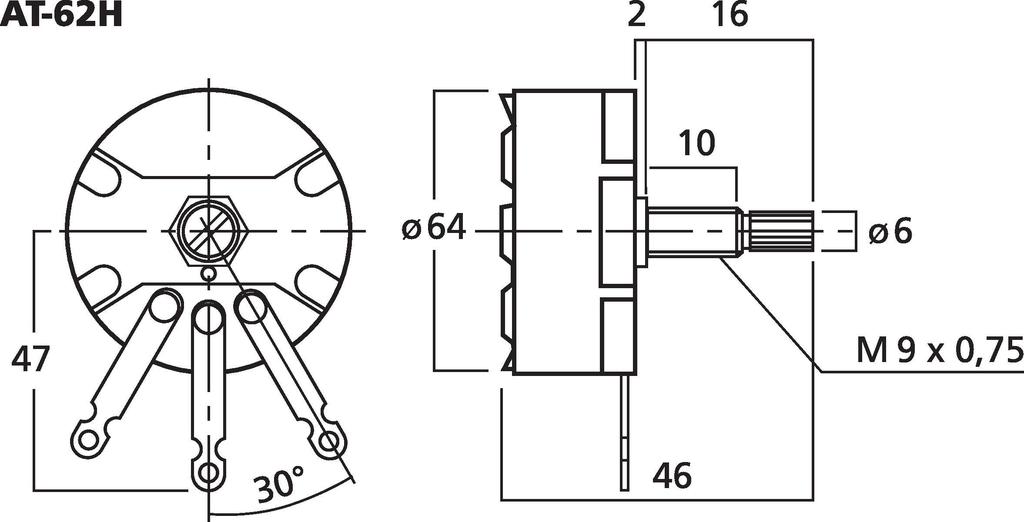

Dimensions see drawing
Weight 119 g
EAN code 4007754188639
Net weight 0.119 kg
