Order no.: 0110580

AT-62SK

Order no.: 0110580

AT-62SK

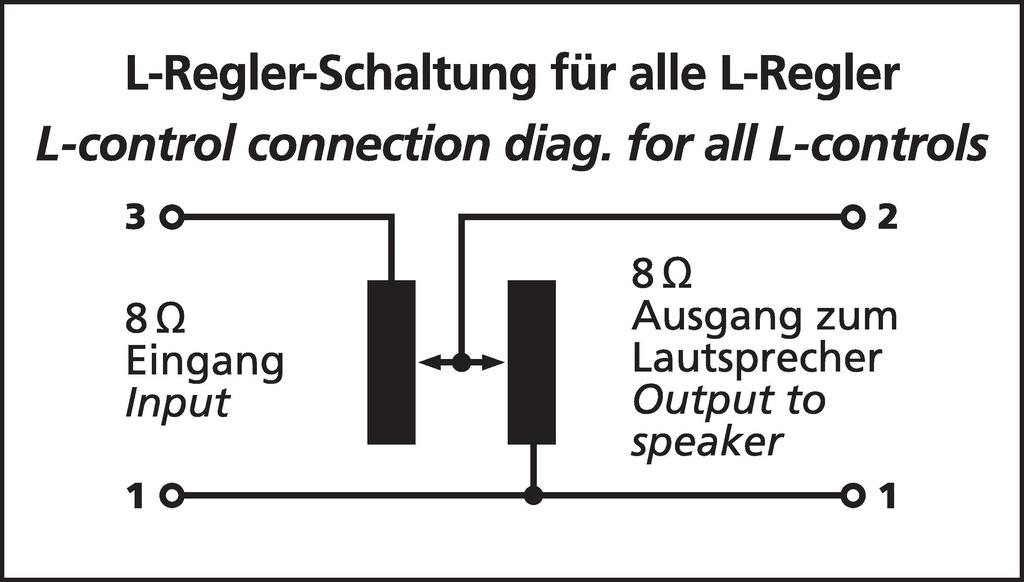

L-pad attenuator
  • High-performance level control
  • Plastic carrier
  • Mono version
  • With push-on knob
  • Thread length: 19 mm
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
continue

About

L-pad attenuator
  • High-performance level control
  • Plastic carrier
  • Mono version
  • With push-on knob
  • Thread length: 19 mm
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

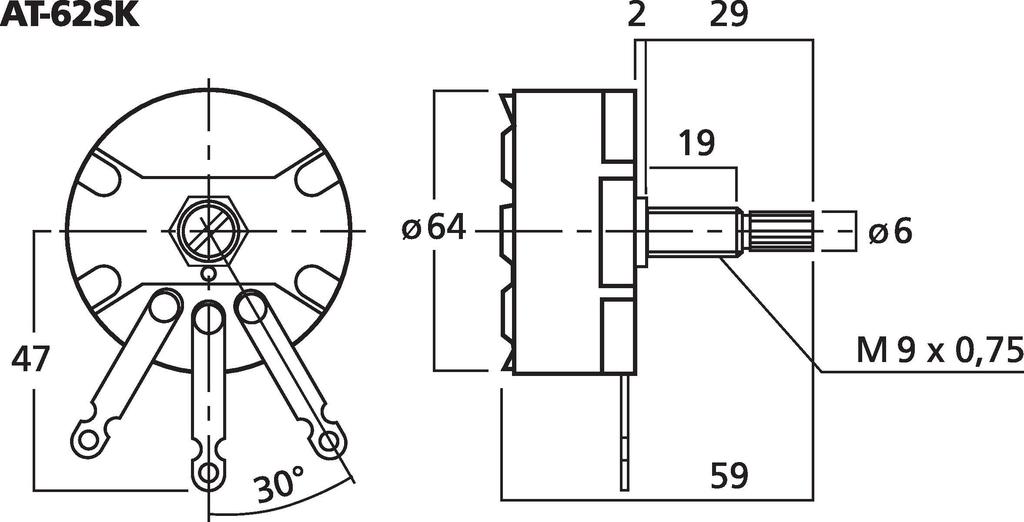

Specifications

Impedance 8 Ω ± 20%
Channels mono
Attenuation 0 dB to ∞ dB
Attenuation direction counterclockwise
Turning angle 300° ± 5°
Power rating 100 W MAX
Admiss. ambient temp. 0-40 °C
Weight 127 g
EAN code 4007754188646
Net weight 0.127 kg
