Order no.: 0253310

ATS-12HT

Order no.: 0253310

ATS-12HT

Hand-held microphone with integrated transmitter Matching the 16-channel mono PLL audio transmission system of the ATS-10 series and ATS-16R Electret microphone cartridge, cardioid polar pattern 16 selectable channels Pilot tone Mute function Push-to-talk function Adjustable transmitting power (high: ≤ 10mW/low: ≤ 1 mW) Operating range: approx. 50 m LCD for indicating channel and battery status Power supply via 2 x 1.2 V NiMH rech. battery AA size (not supplied) Dimensions: Ø 35 mm x 200 mm Weight: 93 g Licence-free in the EU.

continue

About

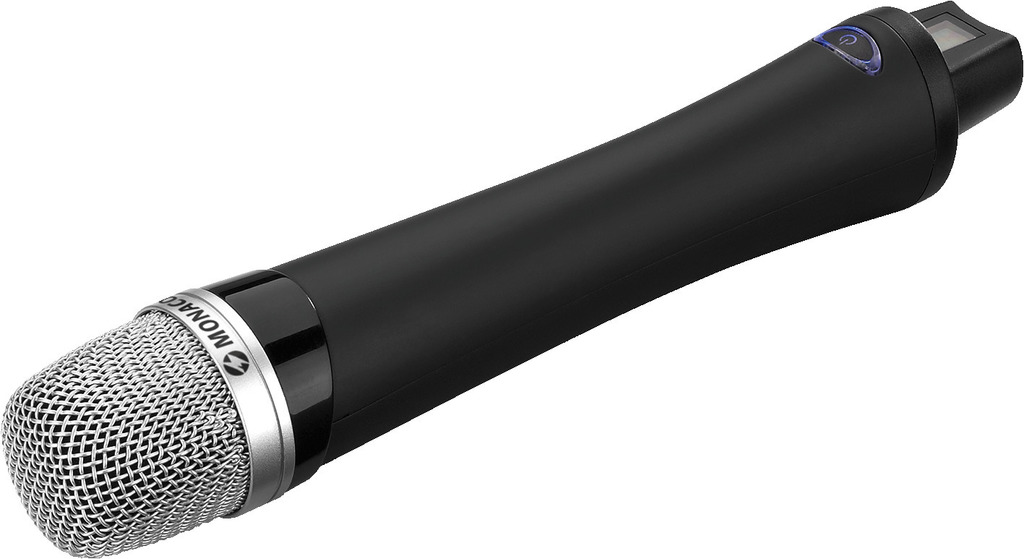

Hand-held microphone with integrated transmitter

Matching the 16-channel mono PLL audio transmission system of the ATS-10 series and ATS-16R
Electret microphone cartridge, cardioid polar pattern
16 selectable channels
Pilot tone
Mute function
Push-to-talk function
Adjustable transmitting power (high: ≤ 10mW/low: ≤ 1 mW)
Operating range: approx. 50 m
LCD for indicating channel and battery status
Power supply via 2 x 1.2 V NiMH rech. battery AA size (not supplied)
Dimensions: Ø 35 mm x 200 mm
Weight: 93 g

Licence-free in the EU.

Specifications

Description	hand-held microphone transmitter
Transmission method	wireless
Polar pattern	cardioid
System	electret
Carrier frequency range	863-865 MHz
Transmitting power	≤10 mW/≤1 mW
Power supply	2 x 1.2 V NiMH rech. batt. AA size
Operating time	12 h/15 h
Admiss. ambient temp.	0-40 °C
Dimensions	Ø 35 mm x 200 mm
Weight	93 g
Packing dimensions (W x H x L)	0.045 x 0.045 x 0.21 m
Gross weight	0.13 kg
Net weight	0.093 kg
