Order no.: 0257110

ATS-22R

Order no.: 0257110

ATS-22R

16-channel Digital Voice Transmission System, 863-865 MHz Suitable as a tour guide system, trainer/student system and for any other application in which a certain voice source is to be distributed to one or more receivers High resistance to interference due to digital transmisison Parallel operation of up to 4 different channels possible without any interference Licence-free in the EU 16-channel miniature receiver, with intercom function. Intercom function with transmitter ATS-22T via push-button Built-in microphone Supplied with matching clip-on earphone Switches off automatically after not receiving an input signal for 20 minutes (power-saving function) LCD for indicating channel, carrier signal, volume and battery status Power supply via integrated rech. lithium battery (3.7 V/600 mAh) Micro USB charging connection for ATS-12CB, ATS-35CB or USB charger, available at option Dimensions: 40 x 87 x 12 mm Licence-free in the EU.

About

16-channel Digital Voice Transmission System, 863-865 MHz
  • Suitable as a tour guide system, trainer/student system and for any other application in which a certain voice source is to be distributed to one or more receivers
  • High resistance to interference due to digital transmisison
  • Parallel operation of up to 4 different channels possible without any interference
  • Licence-free in the EU

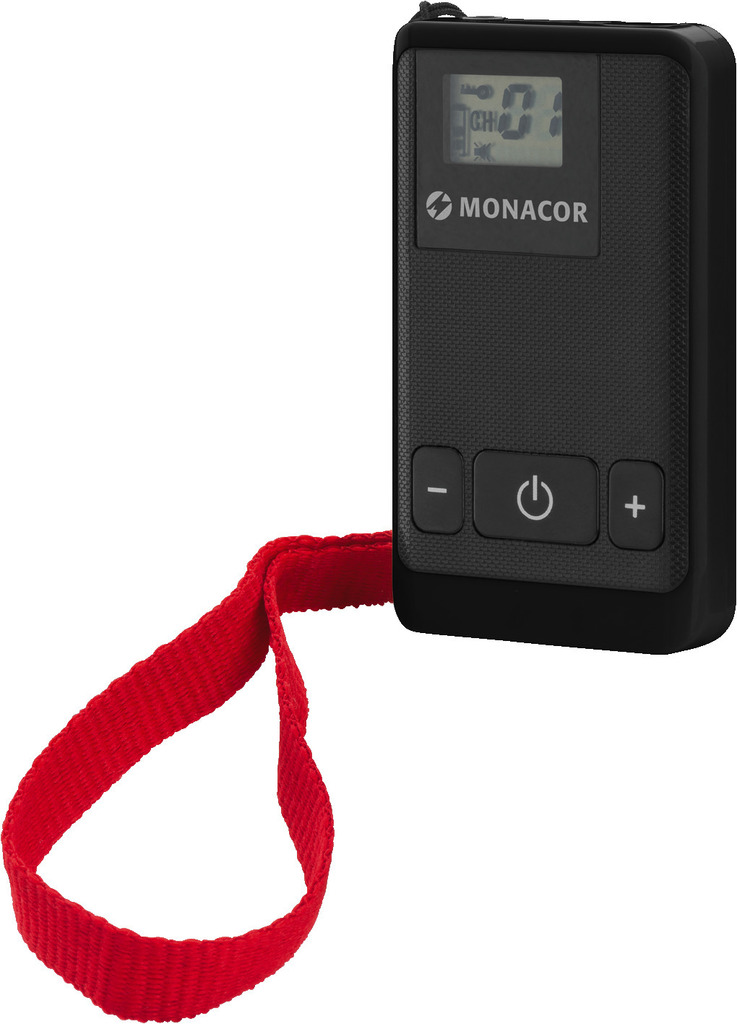

16-channel miniature receiver,
with intercom function.
  • Intercom function with transmitter ATS-22T via push-button
  • Built-in microphone
  • Supplied with matching clip-on earphone
  • Switches off automatically after not receiving an input signal for 20 minutes (power-saving function)
  • LCD for indicating channel, carrier signal, volume and battery status
  • Power supply via integrated rech. lithium battery (3.7 V/600 mAh)
  • Micro USB charging connection for ATS-12CB, ATS-35CB or USB charger, available at option
  • Dimensions: 40 x 87 x 12 mm

Licence-free in the EU.

Specifications

Description 16-channel digital miniature receiver
Carrier frequency range 863-865 MHz
Admiss. ambient temp. 0-40 °C
Power supply receiver integrated rech. lithium batt. (3.7 V/600 mAh)
Width receiver 40 mm
Height receiver 87 mm
Depth receiver 12 mm
Weight receiver 37 g
Connections receiver 3.5 mm jack (earphone),

micro USB charging port
