Order no.: 0179040

AUDIOPOINT-3

Order no.: 0179040

AUDIOPOINT-3

Audio streamer AUDIOPOINT-3 allows you to stream analogue audio signals, such as live audio, music or speech, with low latency to multiple portable devices and is ideally suited for the application in houses of worship, museums, lecture halls, schools and at trade shows or conferences. 50 users max. at the same time (up to 250 users after licence upgrade)2 mono audio input channels Audio format: PCM/24 kHz/16 bits/mono No cloud server required Compatible with standard Wi-Fi routers Automatic detection and dynamic list of channels available (feature also available when using multiple devices) Easy installation, programming via web browser, access via IP address Free apps for Android and iOS are available from the respective store

About

Audio streamer

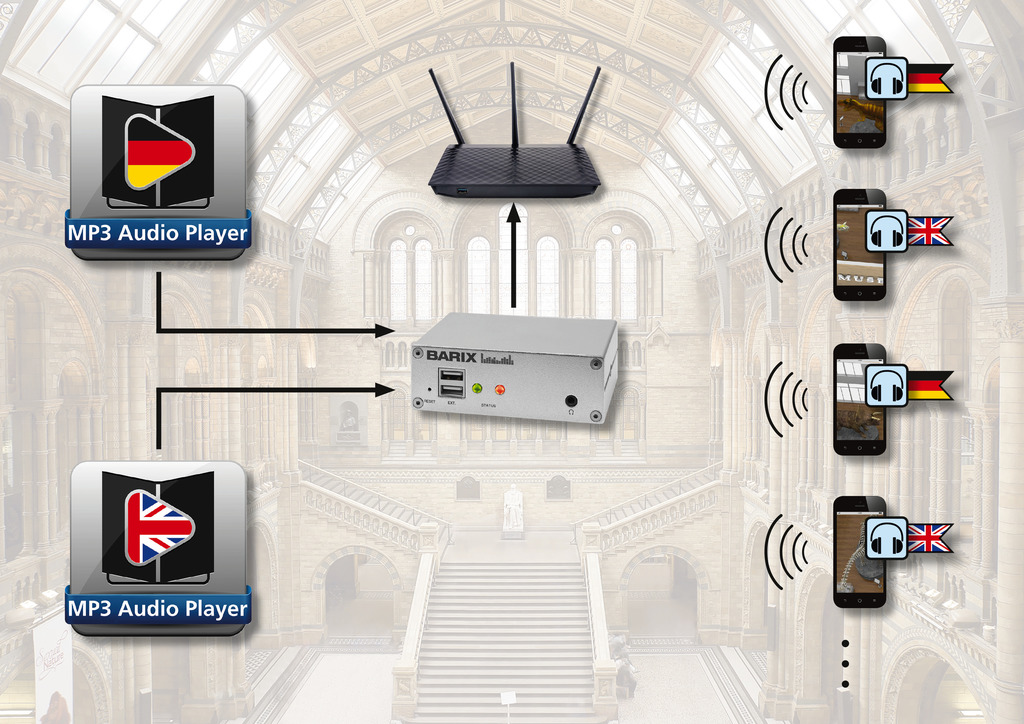

AUDIOPOINT-3 allows you to stream analogue audio signals, such as live audio, music or speech, with low latency to multiple portable devices and is ideally suited for the application in houses of worship, museums, lecture halls, schools and at trade shows or conferences.
  • 50 users max. at the same time (up to 250 users after licence upgrade)
  • 2 mono audio input channels
  • Audio format: PCM/24 kHz/16 bits/mono
  • No cloud server required
  • Compatible with standard Wi-Fi routers
  • Automatic detection and dynamic list of channels available (feature also available when using multiple devices)
  • Easy installation, programming via web browser, access via IP address
  • Free apps for Android and iOS are available from the respective store

Specifications

Description audio streamer
Nominal value 240 kbps streaming
Colour silver
Material aluminium
Power supply encl. power supply
Dimensions 118 x 40 x 85 mm
Weight 265 g
Connections 2 x RCA,

1 x RJ45 (LAN),

1 x RS232,

2 x USB,

3.5 mm jack (headphones)

Packing unit 1
Packing dimensions (W x H x L) 0.115 x 0.06 x 0.17 m
Gross weight 0.51 kg
Net weight 0.435 kg
Sampling rates 24 kHz
Resolution 16 Bit
