Order no.: 1001069

CDX1-1425/8

Order no.: 1001069

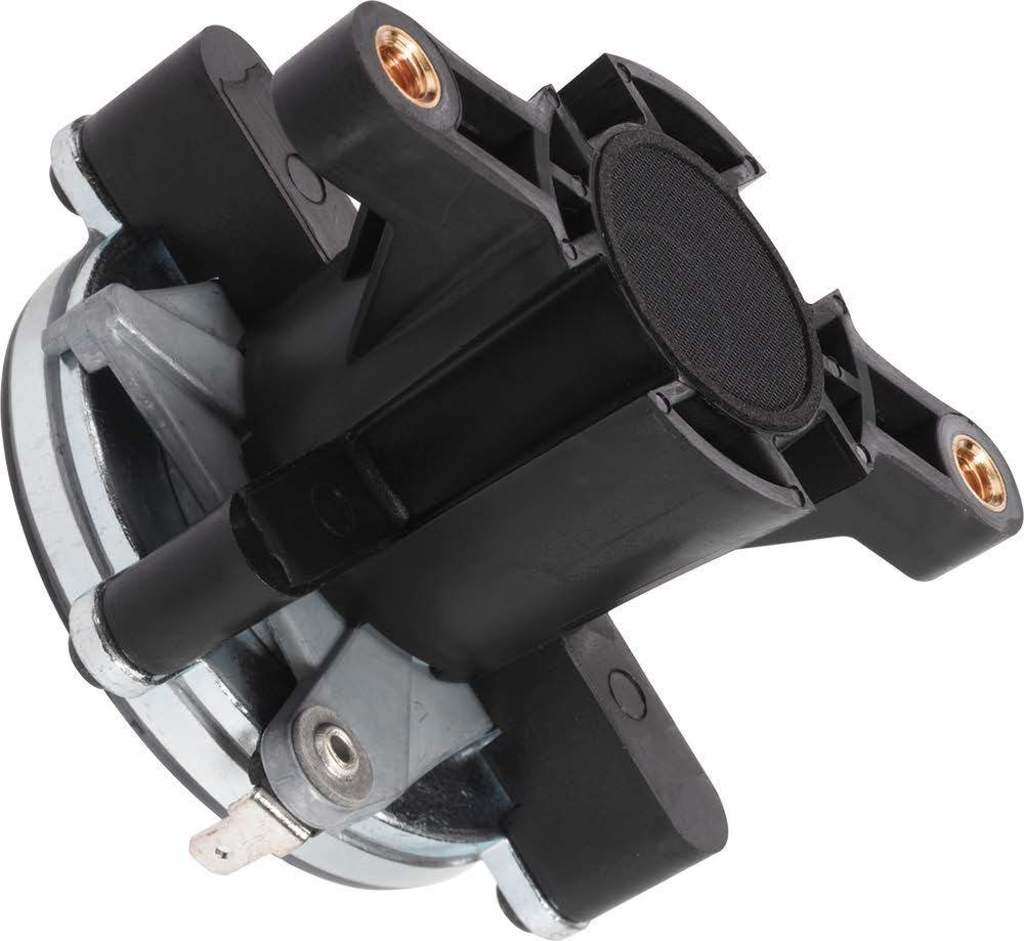

PA horn driver, 25 W, 8 Ω

High-quality 25 mm (1") compression driver with 35 mm (1.4") voice coil and ferrite magnet
Aluminium cone with elastomer surround
Inductance copper coil for an improved RF performance
Recommended crossover frequency: 2,500 Hz (12 dB/oct.)
2-hole screw mounting

Manufacturer information:

Celestion International Ltd
Claydon Business Park, Great Blakenham,
Ipswich
Suffolk IP6 0NL
United Kingdom
info@celestion.com

Importer:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Deutschland
info@monacor.com

continue

PA horn driver, 25 W, 8 Ω

High-quality 25 mm (1") compression driver with 35 mm (1.4") voice coil and ferrite magnet
Aluminium cone with elastomer surround
Inductance copper coil for an improved RF performance
Recommended crossover frequency: 2,500 Hz (12 dB/oct.)
2-hole screw mounting

Manufacturer information:

Celestion International Ltd
Claydon Business Park, Great Blakenham,
Ipswich
Suffolk IP6 0NL
United Kingdom
info@celestion.com

Importer:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Deutschland
info@monacor.com

Impedance (Z)	8 Ω
Transmission technology	cable

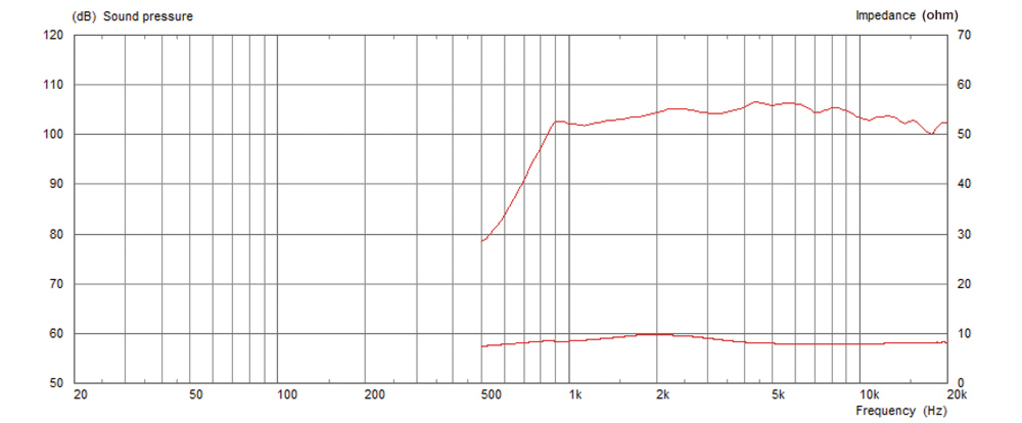

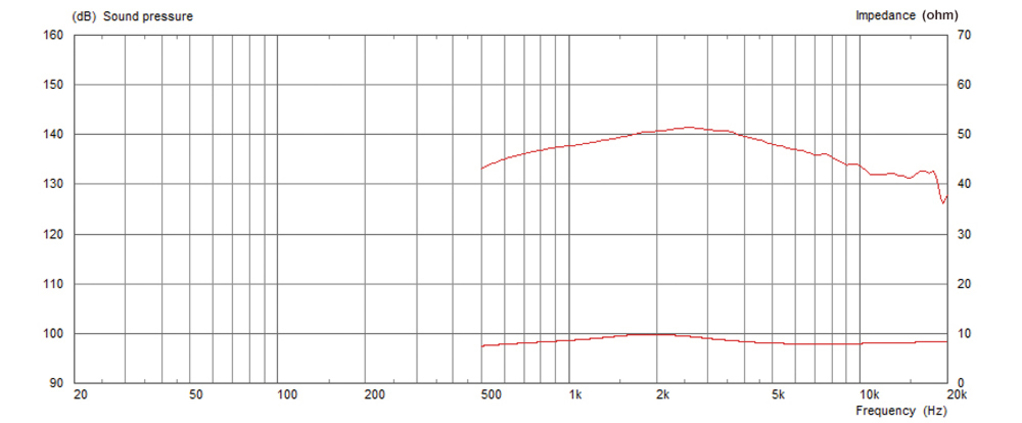

Frequency range	2,000-20,000 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.)	2,500 Hz
Power rating (RMS)	25 W
Peak music power output (MAX)	50 W
SPL	108 dB/W/m
Voice coil diameter	Ø 35 mm
Voice coil material	flat copper-coated aluminium wire
Outlet	Ø 25 mm
Mounting cutout	dep. on horn
Mounting depth	dep. on horn
Mounting hole diameter	Ø 76 mm (2x M6)
Dimensions	Ø 90 mm x 58 mm
Outside diameter	Ø 90 mm
Width	Ø 90 mm
Height	Ø 90 mm
Depth	58 mm
Colour	black/silver
Admiss. ambient temp.	0-40 °C
Weight	0.42 kg
Packing unit	1
Type of speaker	1"
Packaging dimensions (W x H x L)	0.09 x 0.08 x 0.09 m
Gross weight	0.45 kg
Net weight	0.42 kg
