Order no.: 1001070

CDX1-1430/8

Order no.: 1001070

CDX1-1430/8

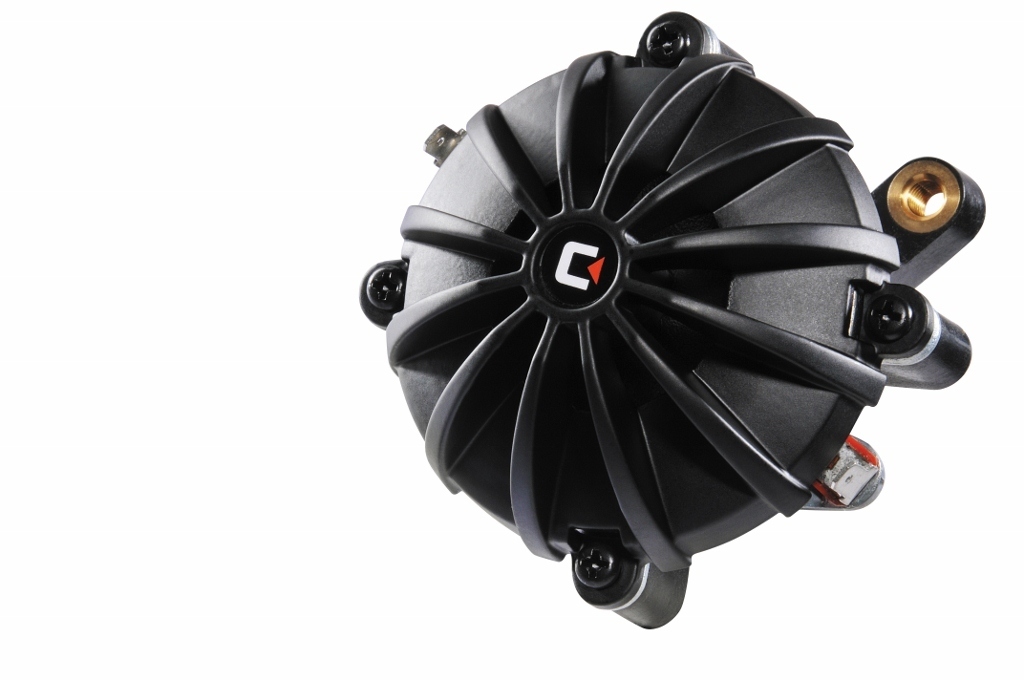

PA horn driver, 50 W, 8 Ω
  • 25 mm (1") horn driver
  • Standard 2-hole screw mounting
  • Neodymium drive system with cooling
  • Wide and extra linear frequency response
  • Very high sound pressure level with lowest distortions
  • From approx. 3,000 Hz already, this driver provides a very high-quality sound in 2-way arrangements, even with 38 cm (15") bass speakers
  • Compatible with various horns, including MRH-180
Manufacturer information:
Celestion International Ltd
Claydon Business Park, Great Blakenham,
Ipswich
Suffolk IP6 0NL
United Kingdom
info@celestion.com

Importer:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Deutschland
info@monacor.com

About

PA horn driver, 50 W, 8 Ω
  • 25 mm (1") horn driver
  • Standard 2-hole screw mounting
  • Neodymium drive system with cooling
  • Wide and extra linear frequency response
  • Very high sound pressure level with lowest distortions
  • From approx. 3,000 Hz already, this driver provides a very high-quality sound in 2-way arrangements, even with 38 cm (15") bass speakers
  • Compatible with various horns, including MRH-180
Manufacturer information:
Celestion International Ltd
Claydon Business Park, Great Blakenham,
Ipswich
Suffolk IP6 0NL
United Kingdom
info@celestion.com

Importer:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Deutschland
info@monacor.com

Specifications

Impedance (Z) 8 Ω
Transmission technology cable
Frequency range 20-20,000 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.) 2,500 Hz
Power rating (RMS) 50 W
Peak music power output (MAX) 100 W
SPL 108 dB/W/m
Voice coil diameter Ø 35 mm
Voice coil material copper-coated aluminium
Outlet Ø 25 mm
Mounting cutout dep. on horn
Mounting depth dep. on horn
Mounting hole diameter Ø 76 mm (2x M6)
Dimensions Ø 90 mm x 58 mm
Outside diameter Ø 90 mm
Width Ø 90 mm
Height Ø 90 mm
Depth 58 mm
Colour black
Admiss. ambient temp. 0-40 °C
Weight 0.47 kg
Packing unit 1
Type of speaker 1"
Packaging dimensions (W x H x L) 0.13 x 0.08 x 0.11 m
Gross weight 0.5 kg
Net weight 0.42 kg
EAN code 739894536752
Net weight 0.42 kg
