Order no.: 1001072

CDX1-1731/8

Order no.: 1001072

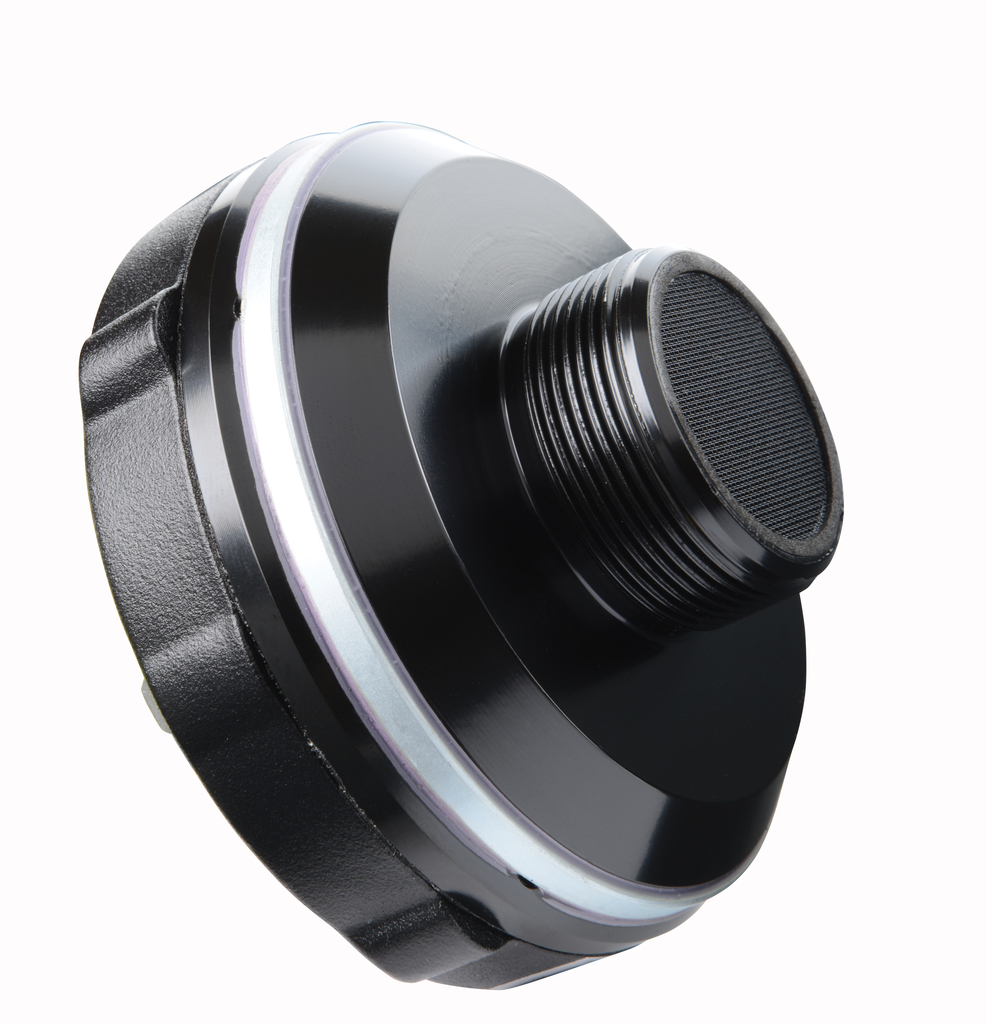

PA horn driver, 40 W, 8 Ω

High-quality 25 mm (1") compression driver with 44 mm (1.75") voice coil and neodymium magnet
One-piece PETP film cone and surround
Sound castle cone arrangement
Recommended crossover frequency: 2,200 Hz (12 dB/oct.)
35 mm standard thread

Manufacturer information:

Celestion International Ltd
Claydon Business Park, Great Blakenham,
Ipswich
Suffolk IP6 0NL
United Kingdom
info@celestion.com

Importer:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Deutschland
info@monacor.com

continue

PA horn driver, 40 W, 8 Ω

High-quality 25 mm (1") compression driver with 44 mm (1.75") voice coil and neodymium magnet
One-piece PETP film cone and surround
Sound castle cone arrangement
Recommended crossover frequency: 2,200 Hz (12 dB/oct.)
35 mm standard thread

Manufacturer information:

Celestion International Ltd
Claydon Business Park, Great Blakenham,
Ipswich
Suffolk IP6 0NL
United Kingdom
info@celestion.com

Importer:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Deutschland
info@monacor.com

Impedance (Z)	8 Ω
Transmission technology	cable

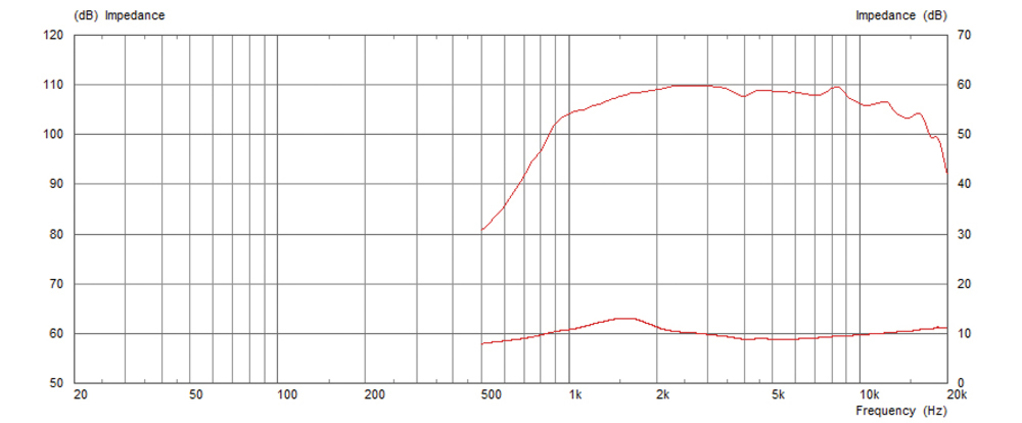

Frequency range	1,200-20,000 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.)	2,200 Hz
Power rating (RMS)	40 W
Peak music power output (MAX)	80 W
SPL	110 dB/W/m
Voice coil diameter	Ø 44 mm
Voice coil material	flat copper-coated aluminium wire
Voice coil former	PETP
Mounting cutout	dep. on horn
Mounting depth	dep. on horn
Dimensions	Ø 88.5 mm x 55 mm
Outside diameter	Ø 88.5 mm
Width	Ø 88.5 mm
Height	Ø 88.5 mm
Depth	55 mm
Colour	black
Admiss. ambient temp.	0-40 °C
Weight	0.65 kg
Packing unit	1
Type of speaker	1"
Packaging dimensions (W x H x L)	0.105 x 0.075 x 0.13 m
Gross weight	0.75 kg
Net weight	0.651 kg
