Order no.: 0032330

CF-120M/BB

Order no.: 0032330

CF-120M/BB

Axial fan
  • Ball bearing
  • Black aluminium housing
Manufacturer information:
SUNON
No. 30, Ln. 296, Xinya Rd
Qianzhen Dist.
Kaohsiung City 806
Taiwan
sunon@sunon.com
continue

About

Axial fan
  • Ball bearing
  • Black aluminium housing
Manufacturer information:
SUNON
No. 30, Ln. 296, Xinya Rd
Qianzhen Dist.
Kaohsiung City 806
Taiwan
sunon@sunon.com

Specifications

Air flow rate 190 m3/h
Power supply ˜ 230 V/50 Hz/22 W
Starting voltage ~ 185 V
Max. noise level 45 dB
Admiss. ambient temp. -10-+70 °C

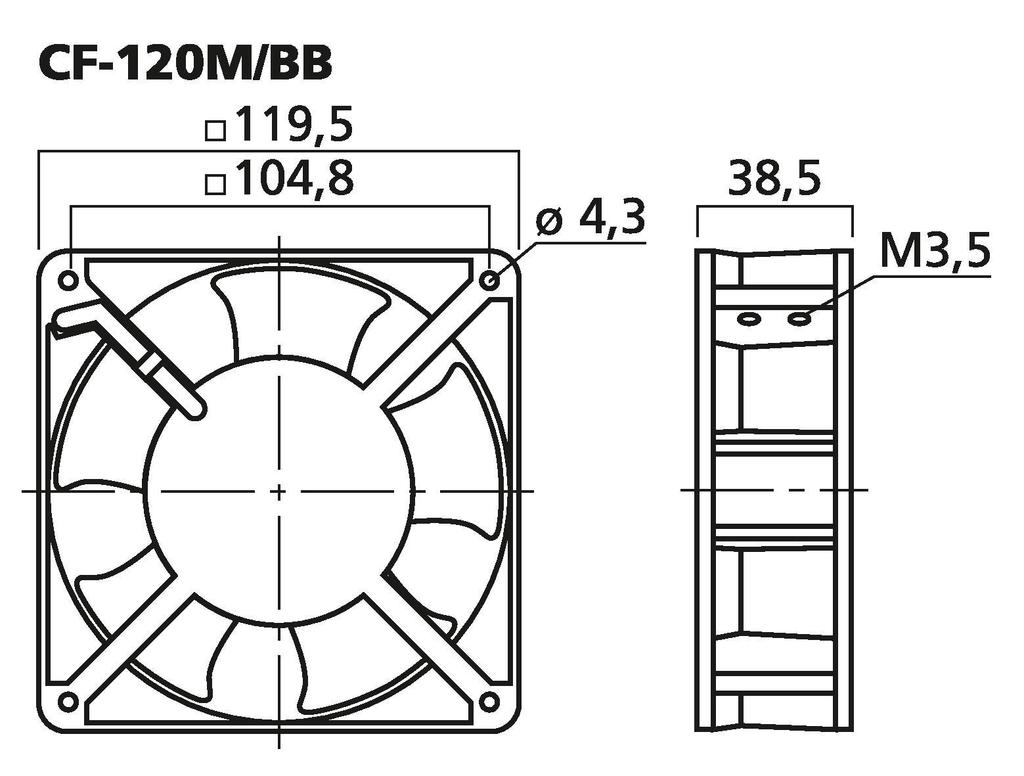

Dimensions 120 x 120 x 38 mm
Weight 510 g
EAN code 4007754249538
Net weight 0.51 kg
