Order no.: 0032350

CF-80P/VB12V

Order no.: 0032350

CF-80P/VB12V

Axial fan
  • Patented Vapo bearing with MagLev® motor
  • Black plastic housing
Manufacturer information:
SUNON
No. 30, Ln. 296, Xinya Rd
Qianzhen Dist.
Kaohsiung City 806
Taiwan
sunon@sunon.com
continue

About

Axial fan
  • Patented Vapo bearing with MagLev® motor
  • Black plastic housing
Manufacturer information:
SUNON
No. 30, Ln. 296, Xinya Rd
Qianzhen Dist.
Kaohsiung City 806
Taiwan
sunon@sunon.com

Specifications

Air flow rate 56 m3/h
Power supply DC 12 V/90 mA/1.1 W
Starting voltage DC 4.5 V
Max. noise level 28 dB
Admiss. ambient temp. -10-+70 °C

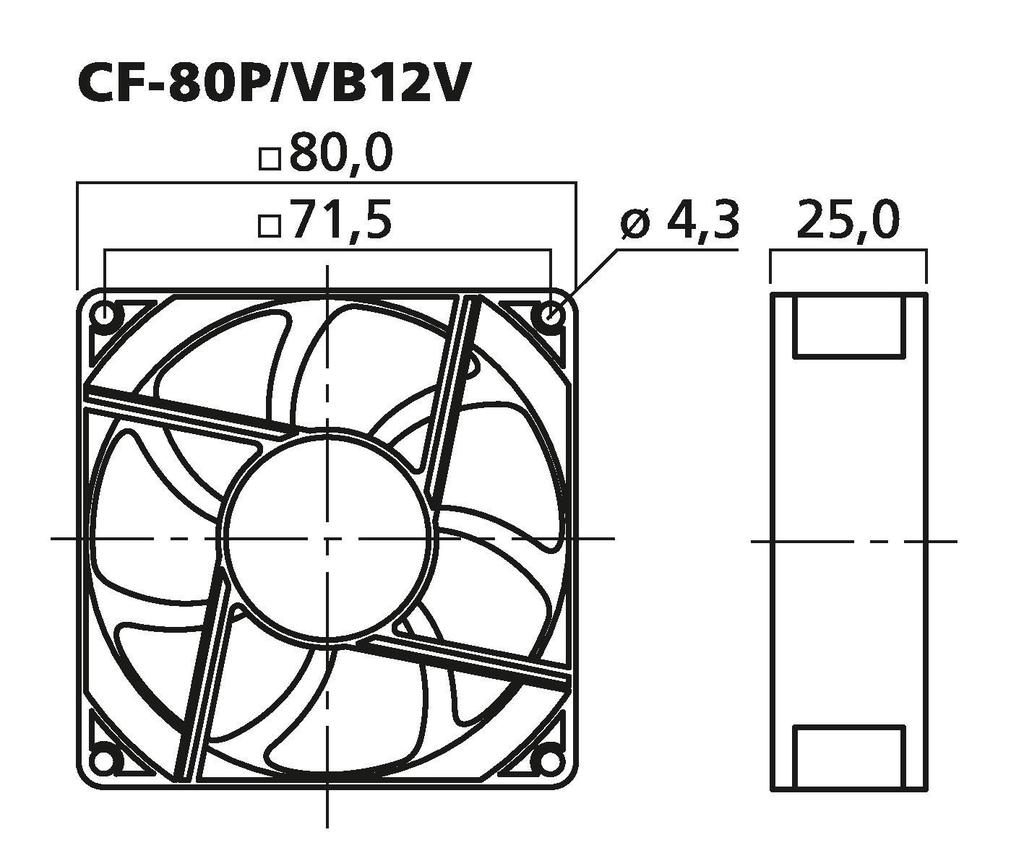

Dimensions 80 x 80 x 25 mm
Weight 77 g
EAN code 4007754249552
Net weight 0.077 kg
