Order no.: 0235950

CM-125IF

Order no.: 0235950

Electret lavalier microphone,

miniature version.

High-quality microphone cartridge with omnidirectional polar pattern
Excellent sound characteristics
Removable clip and 1.4 m connection cable
4-pole mini XLR inline jack for connection to a pocket transmitter of the IN/PT/UF series
4-pole mini XLR inline jack can be unscrewed from the cable
Supplied with bag and windshield

Manufacturer information:

JTS PROFESSIONAL CO., LTD.
No. 148, Gongye 9th Rd., Dali Dist.
41280 Taichung City
Taiwan
jts@jts.com.tw

EU-Representative:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

continue

Electret lavalier microphone,

miniature version.

High-quality microphone cartridge with omnidirectional polar pattern
Excellent sound characteristics
Removable clip and 1.4 m connection cable
4-pole mini XLR inline jack for connection to a pocket transmitter of the IN/PT/UF series
4-pole mini XLR inline jack can be unscrewed from the cable
Supplied with bag and windshield

Manufacturer information:

JTS PROFESSIONAL CO., LTD.
No. 148, Gongye 9th Rd., Dali Dist.
41280 Taichung City
Taiwan
jts@jts.com.tw

EU-Representative:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Description	lavalier microphone
Transmission method	cable
Polar pattern	omnidir.
System	electret

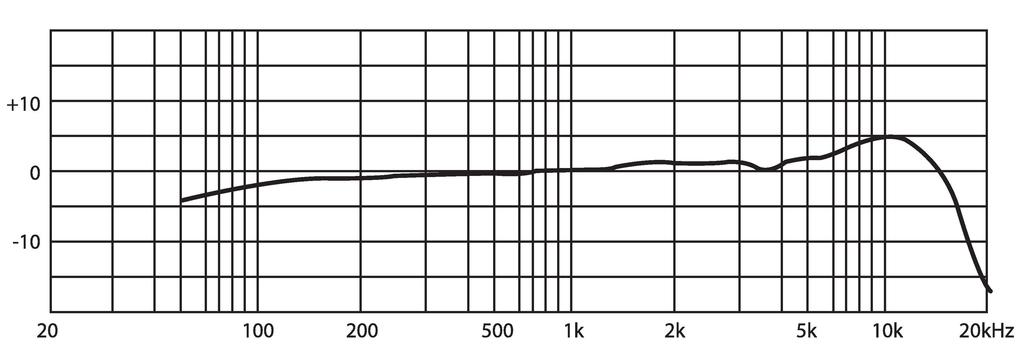

Audio frequency range	50-18,000 Hz
Nominal impedance	4.4 kΩ
Sensitivity	22 mV/Pa
Max. sound pressure	130 dB
Power supply	pocket transmitter of the IN/PT/UF series or PS-500
Admiss. ambient temp.	0-40 °C
Weight	15 g
Connection	4-pole mini XLR
Packaging dimensions (W x H x L)	0.06 x 0.11 x 0.11 m
Gross weight	0.174 kg
Net weight	0.073 kg
