Order no.: 0236430

CM-214F

Order no.: 0236430

CM-214F

Electret headband microphone

Omnidirectional polar pattern allows for microphone to be positioned slightly next to the mouth in an unobtrusive way instead of directly in front of the mouth
Ultra-light and adjustable headband
Replaceable connection cable
Secure fit, very comfortable to wear
Drip ring protects cartridge from moisture and ensures a long operating life
For connection to the pocket transmitters of the IN/PT/UF series with 4-pole mini XLR connection cable
Connection cable 801TG with 3.5 mm plug for use with our tour guide systems is available at option
Supplied with bag and windshield

Manufacturer information:

JTS PROFESSIONAL CO., LTD.
No. 148, Gongye 9th Rd., Dali Dist.
41280 Taichung City
Taiwan
jts@jts.com.tw

EU-Representative:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

continue

About

Electret headband microphone

Omnidirectional polar pattern allows for microphone to be positioned slightly next to the mouth in an unobtrusive way instead of directly in front of the mouth
Ultra-light and adjustable headband
Replaceable connection cable
Secure fit, very comfortable to wear
Drip ring protects cartridge from moisture and ensures a long operating life
For connection to the pocket transmitters of the IN/PT/UF series with 4-pole mini XLR connection cable
Connection cable 801TG with 3.5 mm plug for use with our tour guide systems is available at option
Supplied with bag and windshield

Manufacturer information:

JTS PROFESSIONAL CO., LTD.
No. 148, Gongye 9th Rd., Dali Dist.
41280 Taichung City
Taiwan
jts@jts.com.tw

EU-Representative:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Specifications

Description	headband microphone
Transmission method	cable
Polar pattern	omnidir.
System	electret

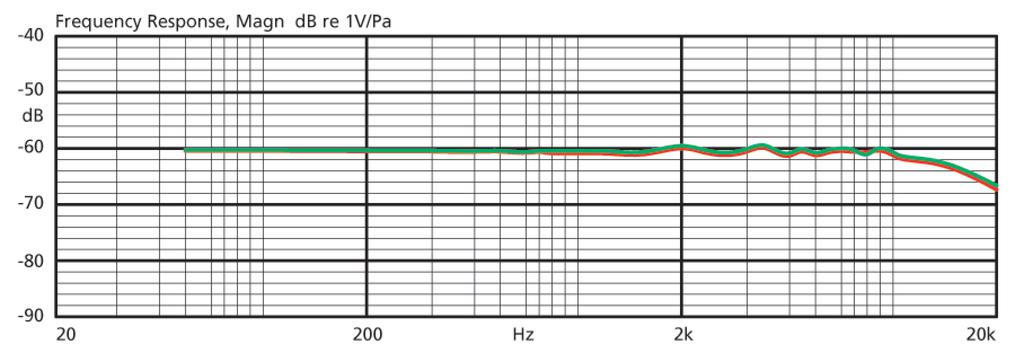

Audio frequency range	60-15,000 Hz
Nominal impedance	2.2 kΩ
Sensitivity	10 mV/Pa
Max. sound pressure	130 dB
Power supply	pocket transmitter IN/PT/UF series or PS-500
Admiss. ambient temp.	0-40 °C
Weight	40 g
Connection	cable with 4-pole mini XLR (optional 3.5 mm stereo plug, 3-pole mini XLR or 4-pole Hirose connector)
Packaging dimensions (W x H x L)	0.145 x 0.1 x 0.185 m
Gross weight	0.184 kg
Net weight	0.046 kg

EAN code	4007754242942
Net weight	0.046 kg

Downloads

Accessories for CM-214F

Order no.: 0236120

801C3

Connection cable, 1.5 m

Description:
connection cable

Colour:
beige

Suitable for:
CM-801F, CM-804IF, CM-214F, CM-214ULF, CM-235IF, CM-235IB, CX-500FHW

Order no.: 0236120

801C3

Connection cable, 1.5 m

Order no.: 0237240

801C3/B

Connection cable

Description:
connection cable

Colour:
black

Suitable for:
CM-801F, CM-804IF, CM-214F, CM-214ULF, CM-235IF, CM-235IB, CX-500FHW

Order no.: 0237240

801C3/B

Connection cable

Order no.: 0069240

801C4

Connection cable, 1.5 m

Description:
connection cable

Colour:
beige

Suitable for:
CM-801F, CM-804IF, CM-214F, CM-214ULF, CM-235IF, CM-235IB, CX-500FHW

Order no.: 0069240

801C4

Connection cable, 1.5 m

Order no.: 0069410

801C4/B

Connection cable

Description:
connection cable

Colour:
black

Suitable for:
CM-801F, CM-804IF, CM-214F, CM-214ULF, CM-235IF, CM-235IB, CX-500FHW

Order no.: 0069410

801C4/B

Connection cable

Order no.: 0236530

801CR

Connection cable, 1.5 m

Description:
connection cable

Colour:
beige

Suitable for:
CM-801F, CM-804IF, CM-214F, CM-214ULF, CM-235IF, CM-235IB, CX-500FHW

Order no.: 0236530

801CR

Connection cable, 1.5 m

Order no.: 0237250

801CR/B

Connection cable, 1.5 m

Description:
connection cable

Colour:
black

Suitable for:
CM-801F, CM-804IF, CM-214F, CM-214ULF, CM-235IF, CM-235IB, CX-500FHW

Order no.: 0237250

801CR/B

Connection cable, 1.5 m

Order no.: 0236110

801CS

Connection cable, 1.5 m

Description:
connection cable

Colour:
beige

Suitable for:
CM-801F, CM-804IF, CM-214F, CM-214ULF, CM-235IF, CX-500FHW

Order no.: 0236110

801CS

Connection cable, 1.5 m

Order no.: 0237260

801CS/B

Connection cable, 1.5 m

Description:
connection cable

Colour:
black

Suitable for:
CM-801F, CM-804IF, CM-214F, CM-214ULF, CM-235IF, CX-500FHW

Order no.: 0237260

801CS/B

Connection cable, 1.5 m

Order no.: 1000746

801TG

Connection cable, 1.5 m, right-angle plug

Description:
connection cable

Colour:
beige

Suitable for:
CM-801F, CM-804IF, CM-214F, CM-214ULF, CM-235IF, CX-500FHW, TG-98TA/5, TG-10T/1, KA-10/1PACK, ATS-10TM, ATS-16T, ATS-20T, ATS-42T, ATS-50T, ATS-60T, WAP-8

Order no.: 1000746

801TG

Connection cable, 1.5 m, right-angle plug
