Order no.: 0236450

CM-214ULF

Order no.: 0236450

CM-214ULF

Electret headband microphone

Transparent sound
Adjustable headband, comfortable to wear
Highly resistant to acoustic feedback due to cardioid polar pattern
Replaceable connection cable
Flexible cartridge arm for exact positioning of cartridge, thus providing an optimum sound with an unobtrusive appearance
Connection cable with strain relief, screwed-on
Integrated drip ring protects the cartridge from moisture
Supplied with a 4-pole mini XLR connection cable for connection to pocket transmitters of the IN/PT/UF series
Connection cable 801TG with 3.5 mm plug for use with our tour guide systems is available at option
Supplied with bag and windshield

Manufacturer information:

JTS PROFESSIONAL CO., LTD.
No. 148, Gongye 9th Rd., Dali Dist.
41280 Taichung City
Taiwan
jts@jts.com.tw

EU-Representative:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

continue

About

Electret headband microphone

Transparent sound
Adjustable headband, comfortable to wear
Highly resistant to acoustic feedback due to cardioid polar pattern
Replaceable connection cable
Flexible cartridge arm for exact positioning of cartridge, thus providing an optimum sound with an unobtrusive appearance
Connection cable with strain relief, screwed-on
Integrated drip ring protects the cartridge from moisture
Supplied with a 4-pole mini XLR connection cable for connection to pocket transmitters of the IN/PT/UF series
Connection cable 801TG with 3.5 mm plug for use with our tour guide systems is available at option
Supplied with bag and windshield

Manufacturer information:

JTS PROFESSIONAL CO., LTD.
No. 148, Gongye 9th Rd., Dali Dist.
41280 Taichung City
Taiwan
jts@jts.com.tw

EU-Representative:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Specifications

Description	headband microphone
Transmission method	cable
Polar pattern	cardioid
System	electret

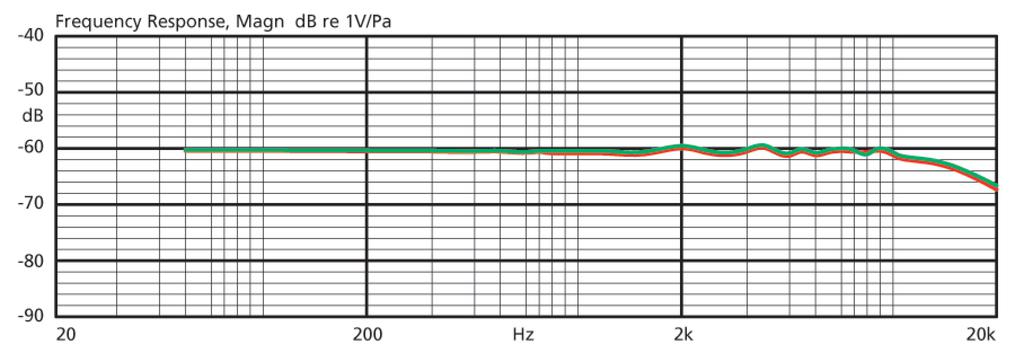

Audio frequency range	100-18,000 Hz
Nominal impedance	1.5 kΩ
Sensitivity	1.8 mV/Pa
Max. sound pressure	120 dB
Power supply	pocket transmitter IN/PT/UF series or PS-500
Admiss. ambient temp.	0-40 °C
Weight	44 g
Connection	4-pole mini XLR (optional: 3.5 mm stereo plug, 3-pole mini XLR or 4-pole Hirose connector)
Packaging dimensions (W x H x L)	0.145 x 0.1 x 0.185 m
Gross weight	0.189 kg
Net weight	0.048 kg

EAN code	4007754242966
Net weight	0.048 kg

Downloads

Accessories for CM-214ULF

Order no.: 0236120

801C3

Connection cable, 1.5 m

Description:
connection cable

Colour:
beige

Suitable for:
CM-801F, CM-804IF, CM-214F, CM-214ULF, CM-235IF, CM-235IB, CX-500FHW

Order no.: 0236120

801C3

Connection cable, 1.5 m

Order no.: 0237240

801C3/B

Connection cable

Description:
connection cable

Colour:
black

Suitable for:
CM-801F, CM-804IF, CM-214F, CM-214ULF, CM-235IF, CM-235IB, CX-500FHW

Order no.: 0237240

801C3/B

Connection cable

Order no.: 0069240

801C4

Connection cable, 1.5 m

Description:
connection cable

Colour:
beige

Suitable for:
CM-801F, CM-804IF, CM-214F, CM-214ULF, CM-235IF, CM-235IB, CX-500FHW

Order no.: 0069240

801C4

Connection cable, 1.5 m

Order no.: 0069410

801C4/B

Connection cable

Description:
connection cable

Colour:
black

Suitable for:
CM-801F, CM-804IF, CM-214F, CM-214ULF, CM-235IF, CM-235IB, CX-500FHW

Order no.: 0069410

801C4/B

Connection cable

Order no.: 0236530

801CR

Connection cable, 1.5 m

Description:
connection cable

Colour:
beige

Suitable for:
CM-801F, CM-804IF, CM-214F, CM-214ULF, CM-235IF, CM-235IB, CX-500FHW

Order no.: 0236530

801CR

Connection cable, 1.5 m

Order no.: 0237250

801CR/B

Connection cable, 1.5 m

Description:
connection cable

Colour:
black

Suitable for:
CM-801F, CM-804IF, CM-214F, CM-214ULF, CM-235IF, CM-235IB, CX-500FHW

Order no.: 0237250

801CR/B

Connection cable, 1.5 m

Order no.: 0236110

801CS

Connection cable, 1.5 m

Description:
connection cable

Colour:
beige

Suitable for:
CM-801F, CM-804IF, CM-214F, CM-214ULF, CM-235IF, CX-500FHW

Order no.: 0236110

801CS

Connection cable, 1.5 m

Order no.: 0237260

801CS/B

Connection cable, 1.5 m

Description:
connection cable

Colour:
black

Suitable for:
CM-801F, CM-804IF, CM-214F, CM-214ULF, CM-235IF, CX-500FHW

Order no.: 0237260

801CS/B

Connection cable, 1.5 m

Order no.: 1000746

801TG

Connection cable, 1.5 m, right-angle plug

Description:
connection cable

Colour:
beige

Suitable for:
CM-801F, CM-804IF, CM-214F, CM-214ULF, CM-235IF, CX-500FHW, TG-98TA/5, TG-10T/1, KA-10/1PACK, ATS-10TM, ATS-16T, ATS-20T, ATS-42T, ATS-50T, ATS-60T, WAP-8

Order no.: 1000746

801TG

Connection cable, 1.5 m, right-angle plug
