Order no.: 0235970

CM-235IF

Order no.: 0235970

CM-235IF

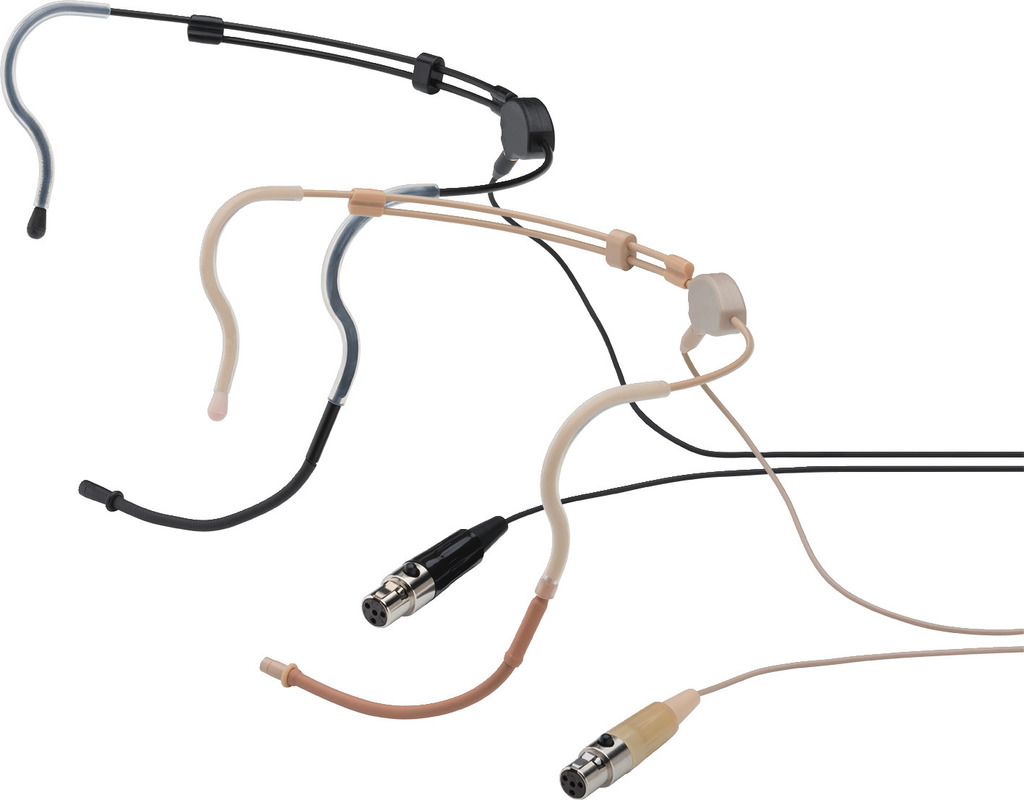

Electret headband microphone

High-quality microphone cartridge with omnidir. polar pattern
Very comfortable to wear
Adjustable headband
Replaceable connection cable
Suitable for children
Highly flexible gooseneck cartridge arm
Drip ring (protects cartridge from moisture)
4-pole mini XLR inline jack for connection to pocket transmitters of the IN/PT/UF
Connection cable 801TG with 3.5 mm plug for use with our tour guide systems is available at option
Supplied with bag and windshield

Manufacturer information:

JTS PROFESSIONAL CO., LTD.
No. 148, Gongye 9th Rd., Dali Dist.
41280 Taichung City
Taiwan
jts@jts.com.tw

EU-Representative:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

continue

About

Electret headband microphone

High-quality microphone cartridge with omnidir. polar pattern
Very comfortable to wear
Adjustable headband
Replaceable connection cable
Suitable for children
Highly flexible gooseneck cartridge arm
Drip ring (protects cartridge from moisture)
4-pole mini XLR inline jack for connection to pocket transmitters of the IN/PT/UF
Connection cable 801TG with 3.5 mm plug for use with our tour guide systems is available at option
Supplied with bag and windshield

Manufacturer information:

JTS PROFESSIONAL CO., LTD.
No. 148, Gongye 9th Rd., Dali Dist.
41280 Taichung City
Taiwan
jts@jts.com.tw

EU-Representative:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Specifications

Description	headband microphone
Transmission method	cable
Polar pattern	omnidir.
System	electret

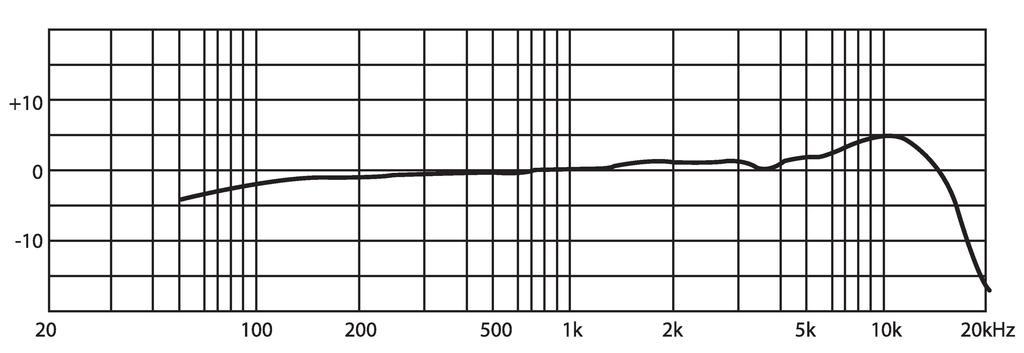

Audio frequency range	50-18,000 Hz
Nominal impedance	1.8 kΩ
Sensitivity	2.2 mV/Pa
Max. sound pressure	130 dB
Power supply	pocket transmitter IN/PT/UF series or PS-500
Admiss. ambient temp.	0-40 °C
Weight	17 g
Connection	4-pole mini XLR (optional: 3.5 mm stereo plug, 3-pole mini XLR or 4-pole Hirose connector)
Packaging dimensions (W x H x L)	0.145 x 0.1 x 0.185 m
Gross weight	0.208 kg
Net weight	0.047 kg

EAN code	4007754248098
Net weight	0.047 kg
