Order no.: 1001035

CM-304SP

Order no.: 1001035

CM-304SP

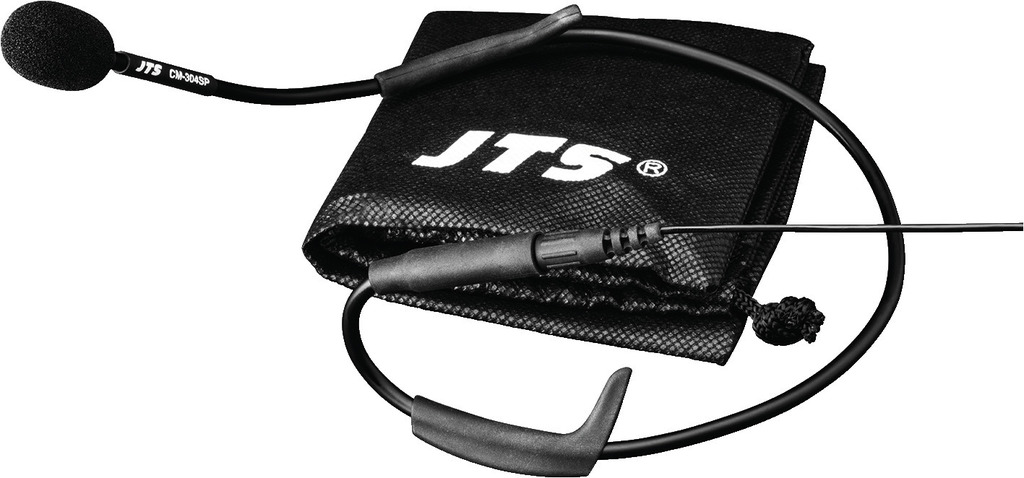

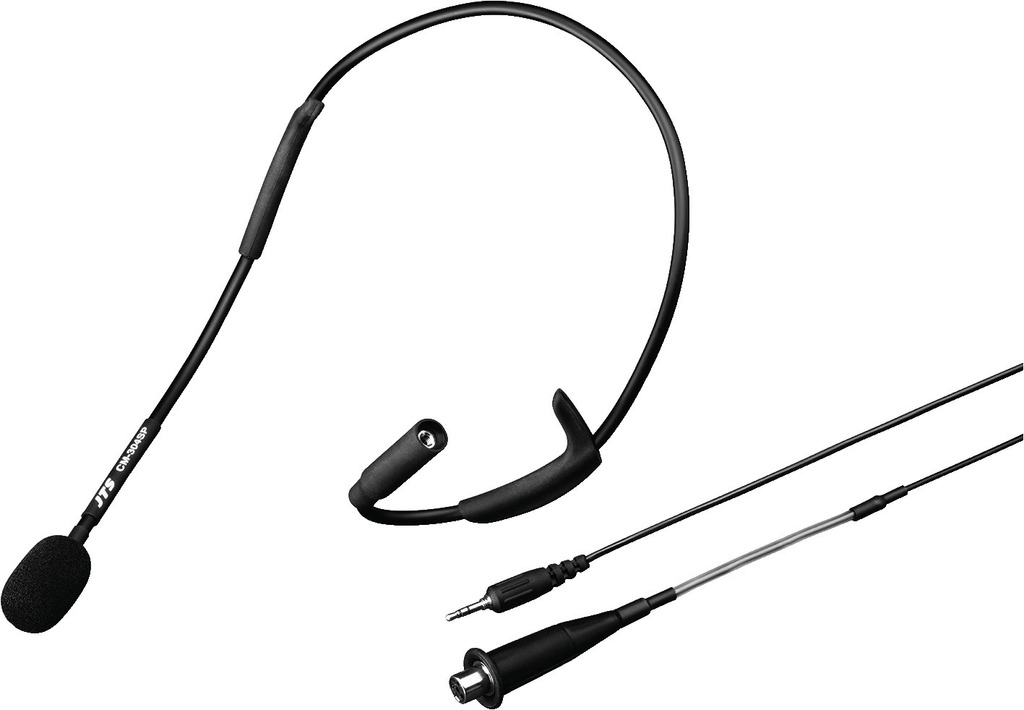

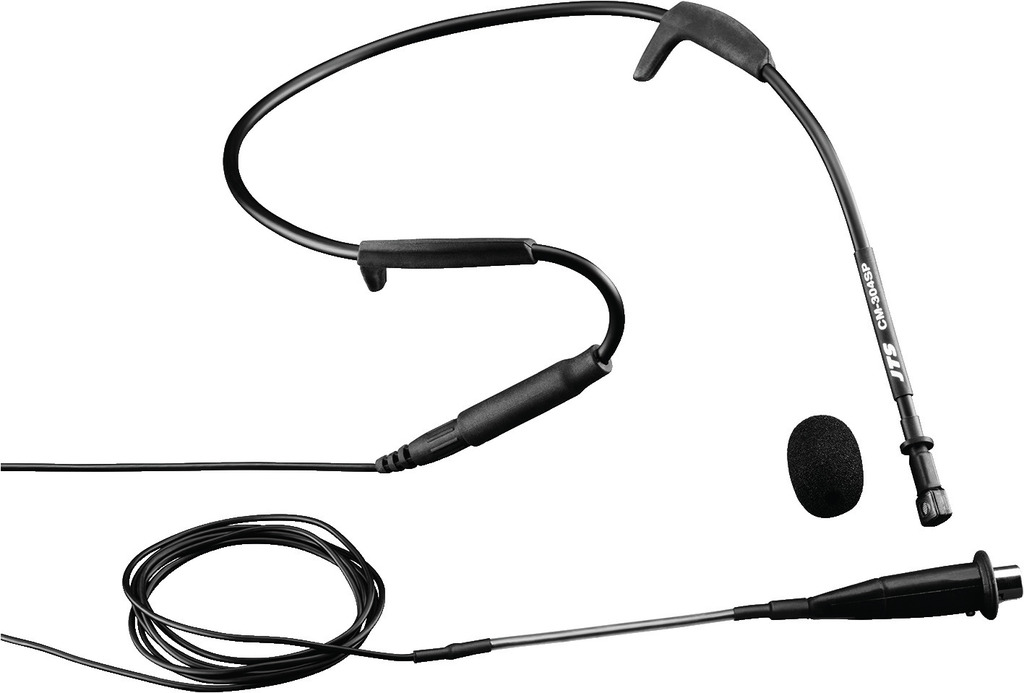

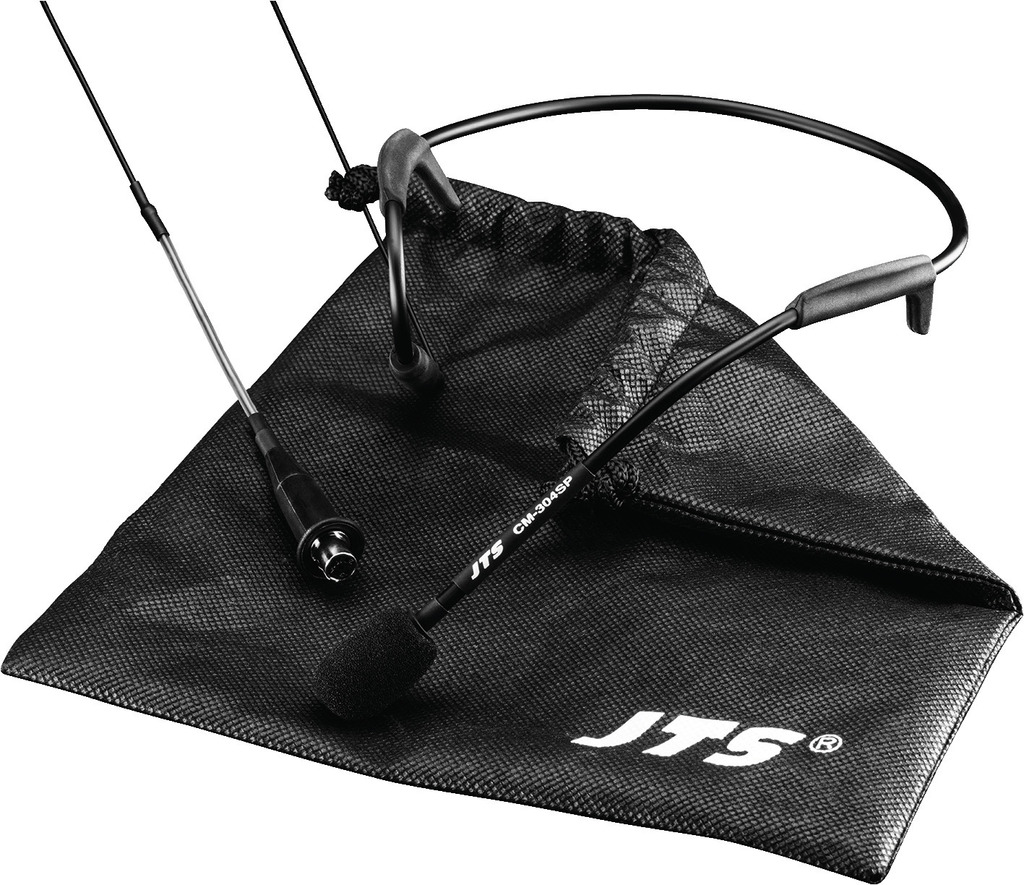

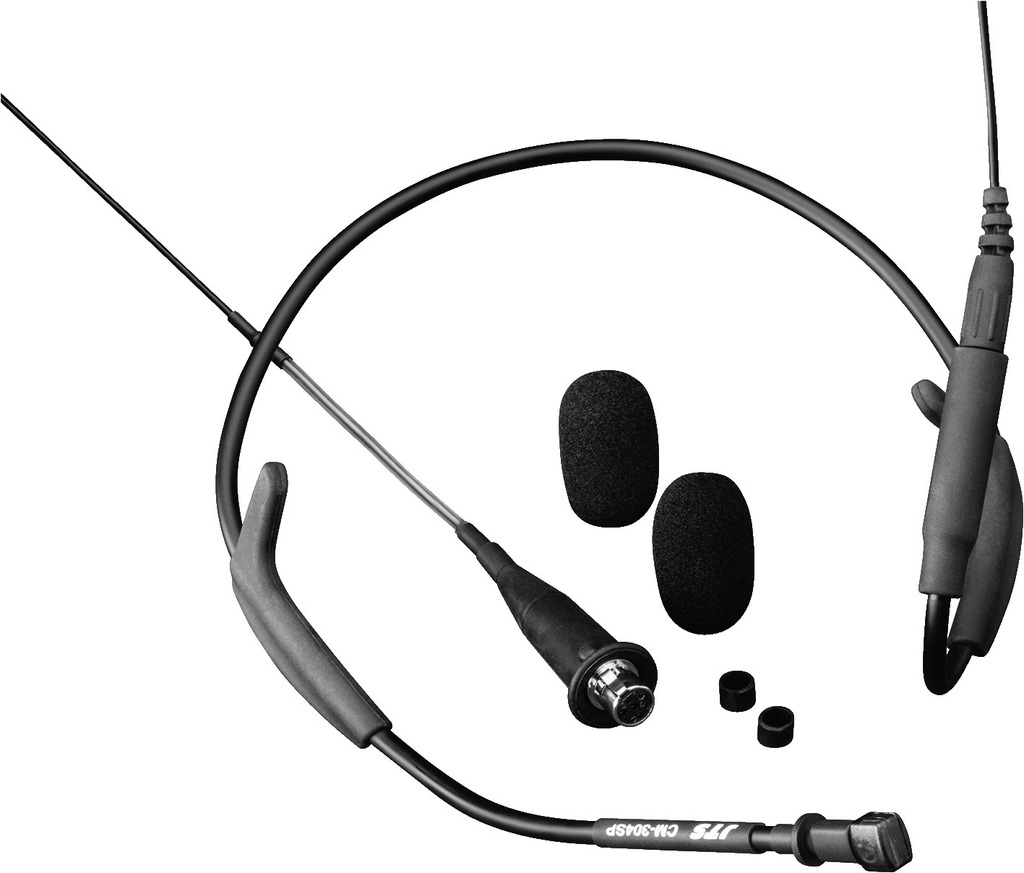

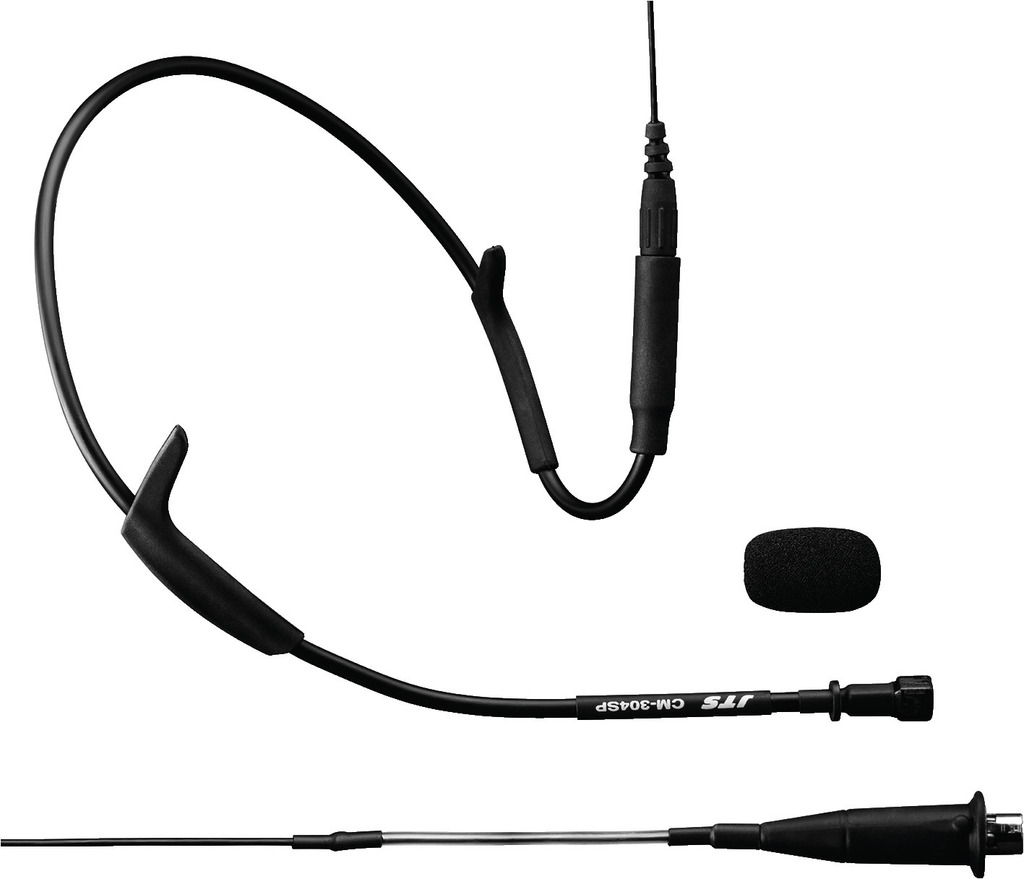

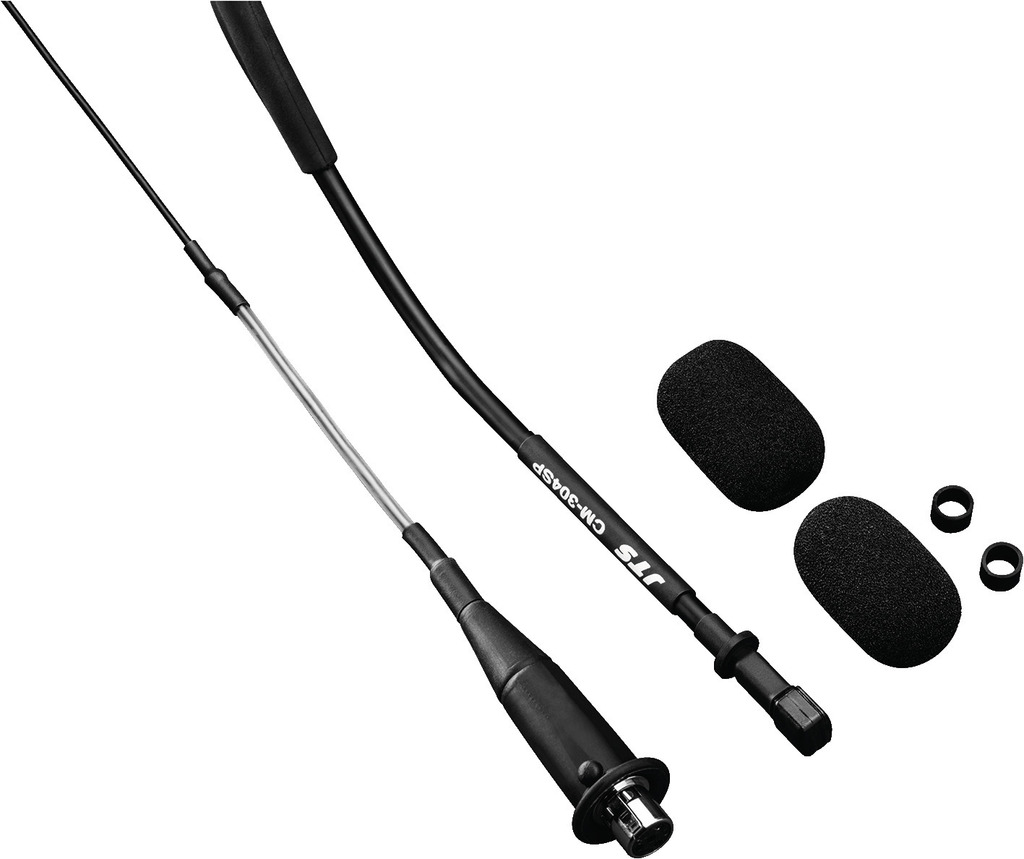

Electret headband microphone, for fitness and aerobics. Back electret microphone cartridge with omnidirectional polar pattern Splashproof Drip ring (additionally protects cartridge from moisture) Flexible cartridge arm Very comfortable to wear due to adjustable headband Secure fit even during strenuous applications, e.g. aerobics or spinning Headband microphone with 2.5 mm inline jack Removable 1.5 m connection cable with 2.5 mm plug with thread and 4-pole mini XLR Connection to phantom power supply adapter (MA-500) or pocket transmitter from JTS (1.5-9 V), available at option Rubber bushing for protecting the connector to be plugged into the pocket transmitter from moisture

About

Electret headband microphone,
for fitness and aerobics.
  • Back electret microphone cartridge with omnidirectional polar pattern
  • Splashproof
  • Drip ring (additionally protects cartridge from moisture)
  • Flexible cartridge arm
  • Very comfortable to wear due to adjustable headband
  • Secure fit even during strenuous applications, e.g. aerobics or spinning
  • Headband microphone with 2.5 mm inline jack
  • Removable 1.5 m connection cable with 2.5 mm plug with thread and 4-pole mini XLR

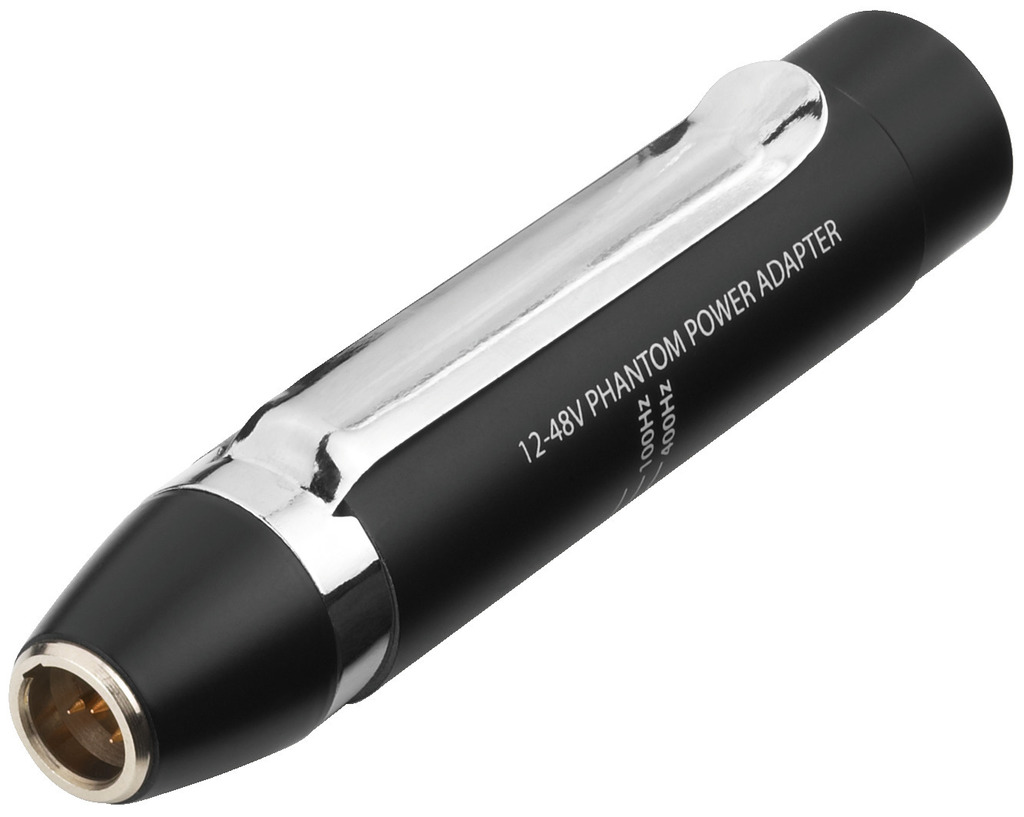

  • Connection to phantom power supply adapter (MA-500) or pocket transmitter from JTS (1.5-9 V), available at option
  • Rubber bushing for protecting the connector to be plugged into the pocket transmitter from moisture

Specifications

Description headband microphone
Transmission method cable
Polar pattern omnidirectional
System back elecret
Audio frequency range 50-20,000 Hz
Nominal impedance 1.8 kΩ
Sensitivity 22.4 mV/Pa
Max. sound pressure 130 dB
Power supply 1.5-9 V
Admiss. ambient temp. 0-40 °C
Weight 44 g,

30 g (w/o cable)

Cable 1.5 m
Connection 4-pole mini XLR
Packing dimensions (W x H x L) 0.187 x 0.1 x 0.143 m
Gross weight 0.185 kg
Net weight 0.069 kg

Accessories for CM-304SP

Order no.: 0259612
UHF PLL audio transmission set, incl. transmitter E-7TB/5 and receiver...
Order no.: 0259612
UHF PLL audio transmission set, incl. transmitter E-7TB/5 and receiver...
