Order no.: 0234580

CM-502

Order no.: 0234580

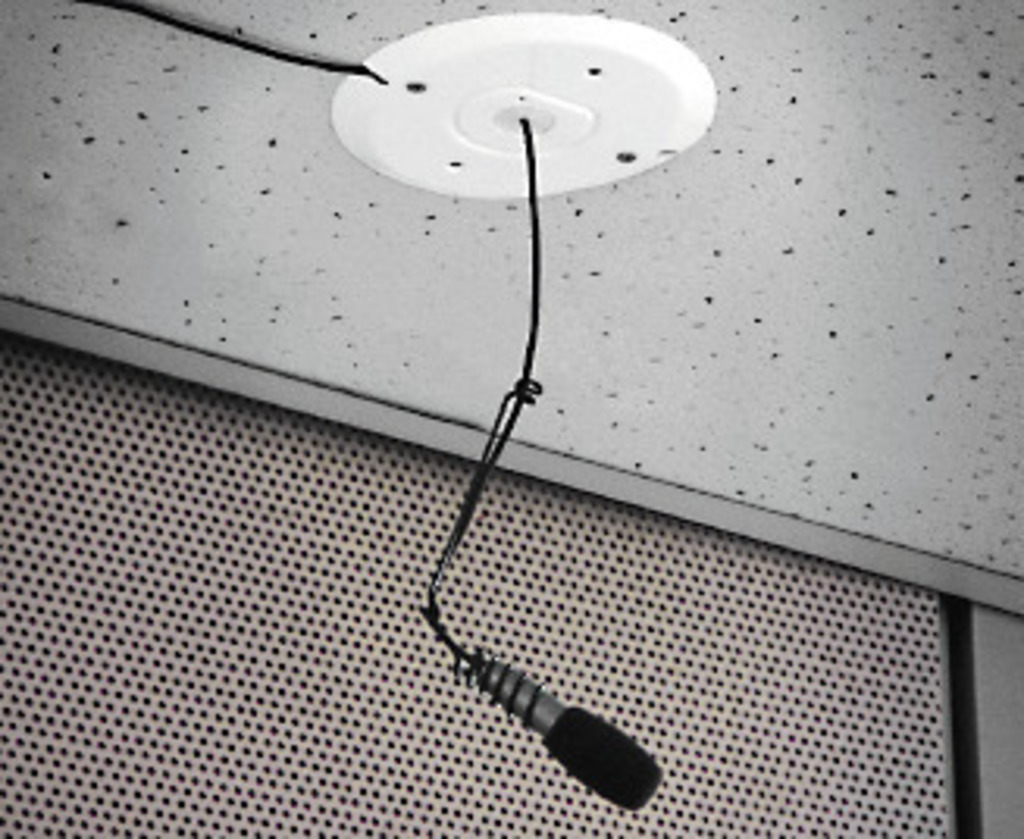

Electret hanging overhead microphone

For suspended installations, particularly in areas where direct microphone pickup is undesirable for visual or functional reasons, e.g. when recording choirs or on theatre and school stages
Black version
Microphone cartridge with supercardioid polar pattern
Integrated phantom power adapter
Easy installation and alignment thanks to the included ceiling mounting plate and spring clip
Supplied with a windshield

Manufacturer information:

JTS PROFESSIONAL CO., LTD.
No. 148, Gongye 9th Rd., Dali Dist.
41280 Taichung City
Taiwan
jts@jts.com.tw

EU-Representative:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

continue

Electret hanging overhead microphone

For suspended installations, particularly in areas where direct microphone pickup is undesirable for visual or functional reasons, e.g. when recording choirs or on theatre and school stages
Black version
Microphone cartridge with supercardioid polar pattern
Integrated phantom power adapter
Easy installation and alignment thanks to the included ceiling mounting plate and spring clip
Supplied with a windshield

Manufacturer information:

JTS PROFESSIONAL CO., LTD.
No. 148, Gongye 9th Rd., Dali Dist.
41280 Taichung City
Taiwan
jts@jts.com.tw

EU-Representative:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Description	overhead hanging microphone
Transmission method	cable
Polar pattern	supercardioid
System	electret
Audio frequency range	100-18,000 Hz
Nominal impedance	220 Ω
Sensitivity	4 mV/Pa
Max. sound pressure	125 dB
Power supply	DC 12-48 V, phantom power
Housing material	metal
Admiss. ambient temp.	0-40 °C
Weight	190 g
Cable	7.5 m
Connection	XLR, bal.
Packaging dimensions (W x H x L)	0.155 x 0.065 x 0.16 m
Gross weight	0.425 kg
Net weight	0.29 kg
