Order no.: 0233990

CM-502WT

Order no.: 0233990

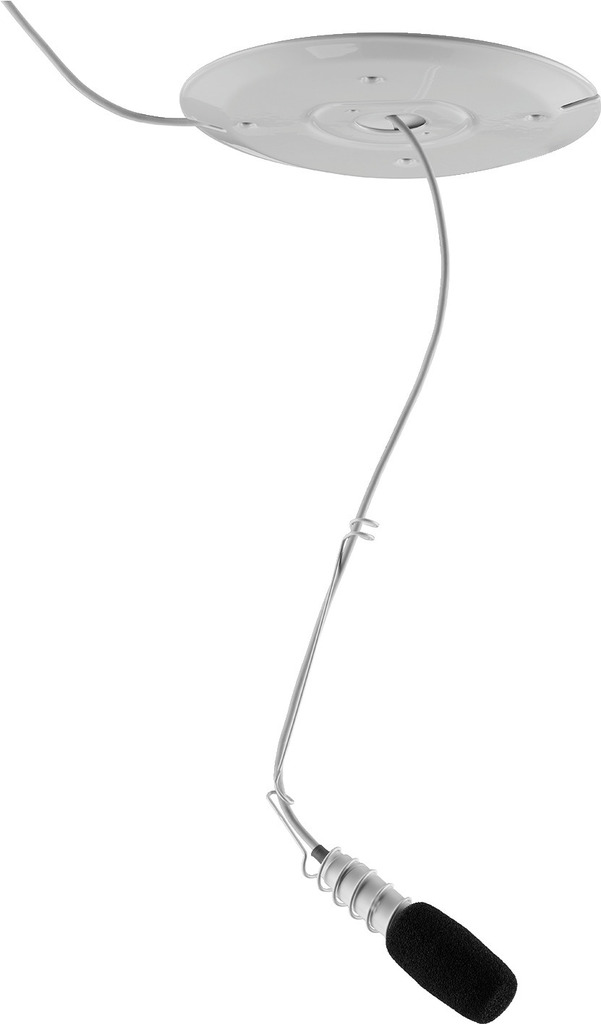

Overhead hanging electret microphones

For suspended installations, especially suitable for applications in which a direct microphonic effect is undesired for optical or operational reasons, e.g. sound pickup of choirs or on theatre stages or school stages
Microphone cartridge with supercardioid polar pattern
Integrated phantom power supply adapter
Easy installation and alignment due to supplied mounting plate for ceiling suspension and spring holder
Supplied with windshield

CM-502WT: white version

Manufacturer information:

JTS PROFESSIONAL CO., LTD.
No. 148, Gongye 9th Rd., Dali Dist.
41280 Taichung City
Taiwan
jts@jts.com.tw

EU-Representative:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

continue

Overhead hanging electret microphones

For suspended installations, especially suitable for applications in which a direct microphonic effect is undesired for optical or operational reasons, e.g. sound pickup of choirs or on theatre stages or school stages
Microphone cartridge with supercardioid polar pattern
Integrated phantom power supply adapter
Easy installation and alignment due to supplied mounting plate for ceiling suspension and spring holder
Supplied with windshield

CM-502WT: white version

Manufacturer information:

JTS PROFESSIONAL CO., LTD.
No. 148, Gongye 9th Rd., Dali Dist.
41280 Taichung City
Taiwan
jts@jts.com.tw

EU-Representative:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Description	overhead hanging microphone
Transmission method	cable
Polar pattern	supercardioid
System	electret
Audio frequency range	100-18,000 Hz
Nominal impedance	220 Ω
Sensitivity	4 mV/Pa
Max. sound pressure	125 dB
Power supply	DC 12-48 V, phantom power
Housing material	metal
Admiss. ambient temp.	0-40 °C
Weight	190 g
Cable	7.5 m
Connection	XLR, bal.
Packaging dimensions (W x H x L)	0.16 x 0.065 x 0.16 m
Gross weight	0.395 kg
Net weight	0.265 kg
