Order no.: 0235900

CM-801F

Order no.: 0235900

CM-801F

Electret earband microphone

Ultra-light earband microphone for stage and podium
Optimum speech intelligibility
Movable drip ring
Screwed-on cable, easy to replace
Clip for strain relief; makes microphone more comfortable to wear and enhances stable positioning
Connection cable 801TG with 3.5 mm plug for use with our tour guide systems is available at option
Supplied with bag and windshield

Manufacturer information:

JTS PROFESSIONAL CO., LTD.
No. 148, Gongye 9th Rd., Dali Dist.
41280 Taichung City
Taiwan
jts@jts.com.tw

EU-Representative:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

continue

About

Electret earband microphone

Ultra-light earband microphone for stage and podium
Optimum speech intelligibility
Movable drip ring
Screwed-on cable, easy to replace
Clip for strain relief; makes microphone more comfortable to wear and enhances stable positioning
Connection cable 801TG with 3.5 mm plug for use with our tour guide systems is available at option
Supplied with bag and windshield

Manufacturer information:

JTS PROFESSIONAL CO., LTD.
No. 148, Gongye 9th Rd., Dali Dist.
41280 Taichung City
Taiwan
jts@jts.com.tw

EU-Representative:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Specifications

Description	earband microphone
Transmission method	cable
Polar pattern	omnidir.
System	electret

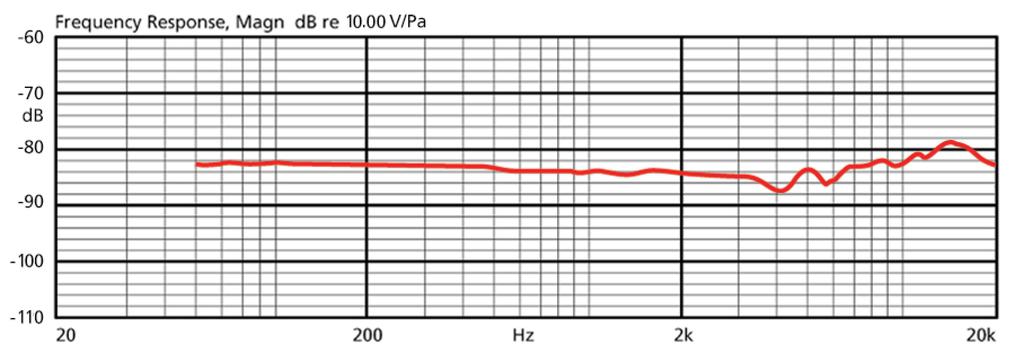

Audio frequency range	60-15,000 Hz
Nominal impedance	1.8 kΩ
Sensitivity	6.3 mV/Pa
Max. sound pressure	130 dB
Power supply	pocket transmitters of the IN/PT/UF series or PS-500
Admiss. ambient temp.	0-40 °C
Weight	16 g
Connection	4-pole mini XLR (optional: 3.5 mm stereo plug, 3-pole mini XLR or 4-pole Hirose connector)
Packaging dimensions (W x H x L)	0.12 x 0.03 x 0.215 m
Gross weight	0.105 kg
Net weight	0.059 kg

EAN code	4007754218398
Net weight	0.059 kg
