Order no.: 1001509

CM-825IF

Order no.: 1001509

CM-825IF

This headset microphone offers versatile customisation options for the best fit and recording. The ergonomic design provides the ultimate unobtrusive profile.
The CM-825IF is equipped with a 2.5 mm diameter condenser cartridge representing JTS' advanced ECM technology and is ideally suited for theatre, production and broadcast.
Electret headband microphone
  • Flexible microphone arm
  • Slip joint
  • Adjustable ear clip
  • Detachable cable
  • Adjustable headband
  • 4-pole mini XLR inline jack
Manufacturer information:
JTS PROFESSIONAL CO., LTD.
No. 148, Gongye 9th Rd., Dali Dist.
41280 Taichung City
Taiwan
jts@jts.com.tw

EU-Representative:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

About

This headset microphone offers versatile customisation options for the best fit and recording. The ergonomic design provides the ultimate unobtrusive profile.
The CM-825IF is equipped with a 2.5 mm diameter condenser cartridge representing JTS' advanced ECM technology and is ideally suited for theatre, production and broadcast.
Electret headband microphone
  • Flexible microphone arm
  • Slip joint
  • Adjustable ear clip
  • Detachable cable
  • Adjustable headband
  • 4-pole mini XLR inline jack
Manufacturer information:
JTS PROFESSIONAL CO., LTD.
No. 148, Gongye 9th Rd., Dali Dist.
41280 Taichung City
Taiwan
jts@jts.com.tw

EU-Representative:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Specifications

Description headband microphone
Transmission method cable

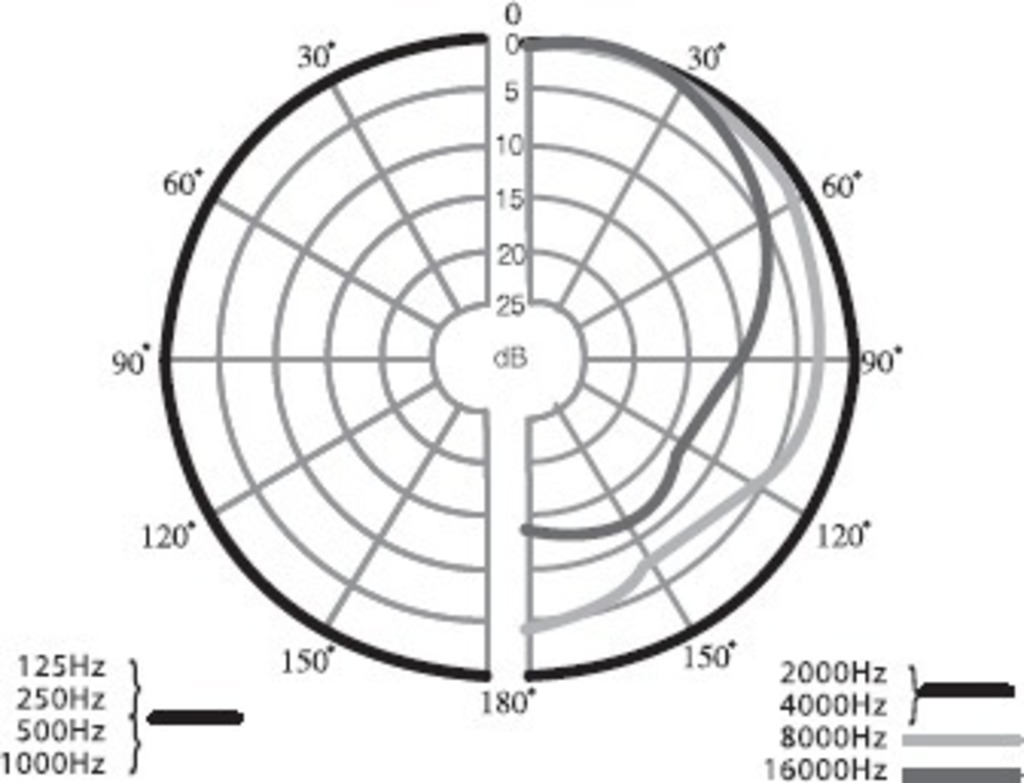

Polar pattern omnidirectional
System electret

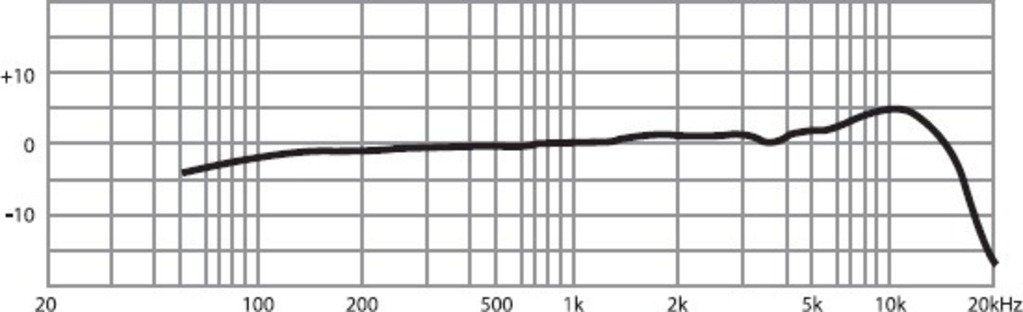

Audio frequency range 50-18,000 Hz
Nominal impedance 1.2 kΩ
Sensitivity 2.24 mV/Pa
Max. sound pressure 130 dB
Power supply pocket transmitter

IN/PT/UF series or PS-500

Admiss. ambient temp. 0-40 °C
Connection 4-pole mini XLR
Packaging dimensions (W x H x L) m
Gross weight 0.15 kg
Net weight 0.1 kg
EAN code 4007754430387
Net weight 0.1 kg
