Order no.: 0235980

CX-500FHW

Order no.: 0235980

CX-500FHW

Electret headband microphone,

for sound pickup of flutes.

High-quality microphone cartridge with omnidirectional polar pattern
Very comfortable to wear
Adjustable headband
Microphone boom adjustable in length
Suitable for kids
Drip ring (protects cartridge from moisture)
4-pole mini XLR inline jack for connection to pocket transmitter of the IN/PT/UF series
Other connection cables 801CS, 801TG, 801C3, 801C4, 801CR, 801CS/B, 801C3/B, 801C4/B, 801CR/B are available at option
Supplied with phantom power supply adapter MA-500 for wired connection to a mixer
Supplied with bag, clip and windshield

Manufacturer information:

JTS PROFESSIONAL CO., LTD.
No. 148, Gongye 9th Rd., Dali Dist.
41280 Taichung City
Taiwan
jts@jts.com.tw

EU-Representative:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

continue

About

Electret headband microphone,

for sound pickup of flutes.

High-quality microphone cartridge with omnidirectional polar pattern
Very comfortable to wear
Adjustable headband
Microphone boom adjustable in length
Suitable for kids
Drip ring (protects cartridge from moisture)
4-pole mini XLR inline jack for connection to pocket transmitter of the IN/PT/UF series
Other connection cables 801CS, 801TG, 801C3, 801C4, 801CR, 801CS/B, 801C3/B, 801C4/B, 801CR/B are available at option
Supplied with phantom power supply adapter MA-500 for wired connection to a mixer
Supplied with bag, clip and windshield

Manufacturer information:

JTS PROFESSIONAL CO., LTD.
No. 148, Gongye 9th Rd., Dali Dist.
41280 Taichung City
Taiwan
jts@jts.com.tw

EU-Representative:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Specifications

Description	headband microphone
Transmission method	cable
Polar pattern	omnidir.
System	electret

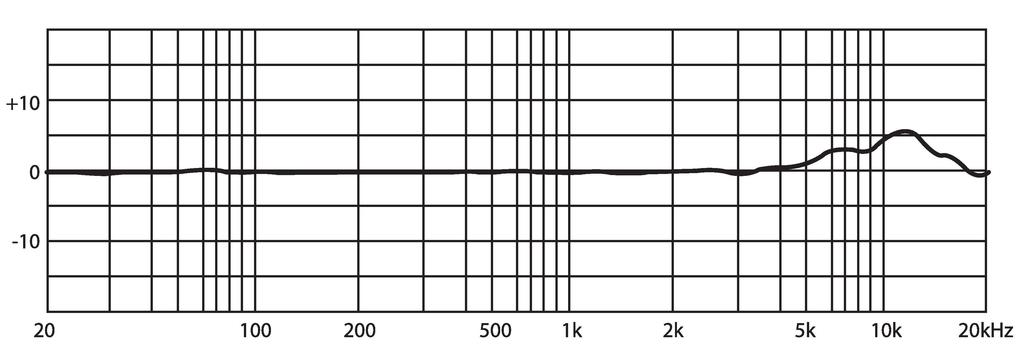

Audio frequency range	20-20,000 Hz
Nominal impedance	1.5 kΩ
Sensitivity	12.5 mV/Pa
Max. sound pressure	130 dB
Power supply	pocket transmitter IN/PT/UF series or DC 12-48 V, phantom power via MA-500
Admiss. ambient temp.	0-40 °C
Weight	6.5 g
Connection	4-pole mini XLR
Packaging dimensions (W x H x L)	0.12 x 0.03 x 0.21 m
Gross weight	0.161 kg
Net weight	0.062 kg

EAN code	4007754248104
Net weight	0.062 kg
