Order no.: 0234590

CX-505

Order no.: 0234590

CX-505

Electret instrument microphone

State-of-the-art microphone for drummers and percussionists
Brilliant sound which is always accentuated and powerful, even at great dynamic gaps
Clamp with rubber jaws, to be attached to the rim of drums
Miniature gooseneck, can be turned by 230°
Suppression of structure-borne noise
Supplied in a robust transport case

DrumHeads 2006

“Cool! The special clamp of the filigreed CX-505 allows for an easy attachment to any clamping ring. Surprisingly, even the fine buzzing of the snare wires can be heard as brilliant as crisp attacks.”

Manufacturer information:

JTS PROFESSIONAL CO., LTD.
No. 148, Gongye 9th Rd., Dali Dist.
41280 Taichung City
Taiwan
jts@jts.com.tw

EU-Representative:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

continue

About

Electret instrument microphone

State-of-the-art microphone for drummers and percussionists
Brilliant sound which is always accentuated and powerful, even at great dynamic gaps
Clamp with rubber jaws, to be attached to the rim of drums
Miniature gooseneck, can be turned by 230°
Suppression of structure-borne noise
Supplied in a robust transport case

DrumHeads 2006

“Cool! The special clamp of the filigreed CX-505 allows for an easy attachment to any clamping ring. Surprisingly, even the fine buzzing of the snare wires can be heard as brilliant as crisp attacks.”

Manufacturer information:

JTS PROFESSIONAL CO., LTD.
No. 148, Gongye 9th Rd., Dali Dist.
41280 Taichung City
Taiwan
jts@jts.com.tw

EU-Representative:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Specifications

Description	instrument microphone
Transmission method	cable
Polar pattern	cardioid
System	electret

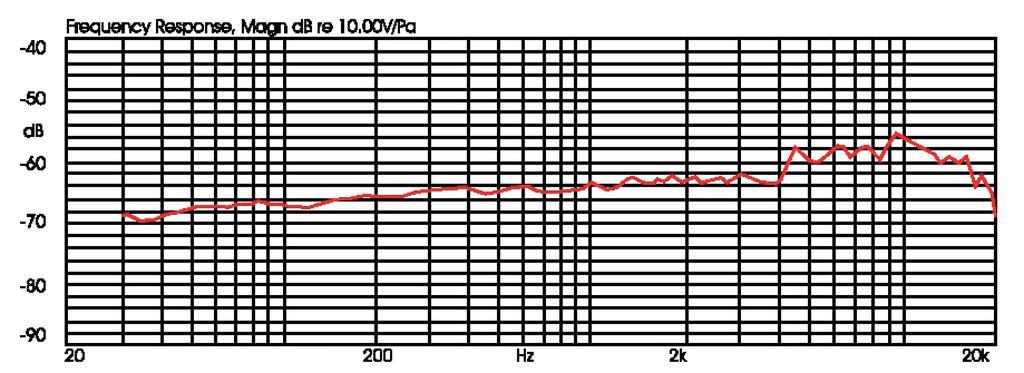

Audio frequency range	50-18,000 Hz
Nominal impedance	220 Ω
Sensitivity	5.6 mV/Pa
Max. sound pressure	130 dB
Power supply	DC 48 V, phantom power
Housing material	plastic
Admiss. ambient temp.	0-40 °C
Weight	187 g
Connection	XLR, bal.
Packaging dimensions (W x H x L)	0.17 x 0.085 x 0.37 m
Gross weight	0.893 kg
Net weight	0.187 kg

EAN code	4007754193978
Net weight	0.187 kg

Downloads

Accessories for CX-505

Order no.: 0233820

EMA-3

48 V phantom power supply

Category:
phantom power

Input voltage:
via encl.

plug-in power supply

Output voltage:
+48 V

Order no.: 0233820

EMA-3

48 V phantom power supply

Order no.: 0066000

MECN-600/SW

XLR cable, 6 m, NEUTRIK

Intended use:
audio, microphone

Connectors:
1 x NEUTRIK XLR plug,

1 x NEUTRIK XLR inline jack

Length:
6 m

Order no.: 0066000

MECN-600/SW

XLR cable, 6 m, NEUTRIK
