Order no.: 0234640

CX-516

Order no.: 0234640

CX-516

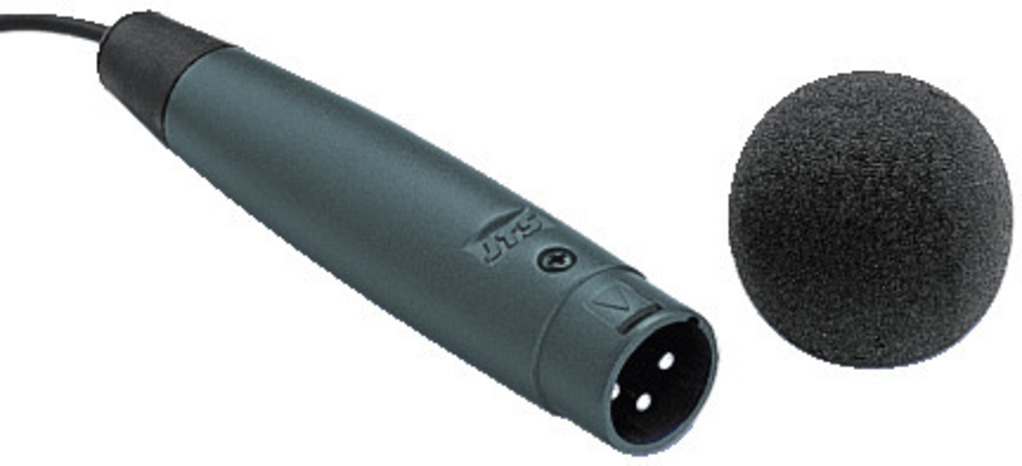

Electret instrument microphone
  • For sound pickup of accordions, pianos or wind instruments

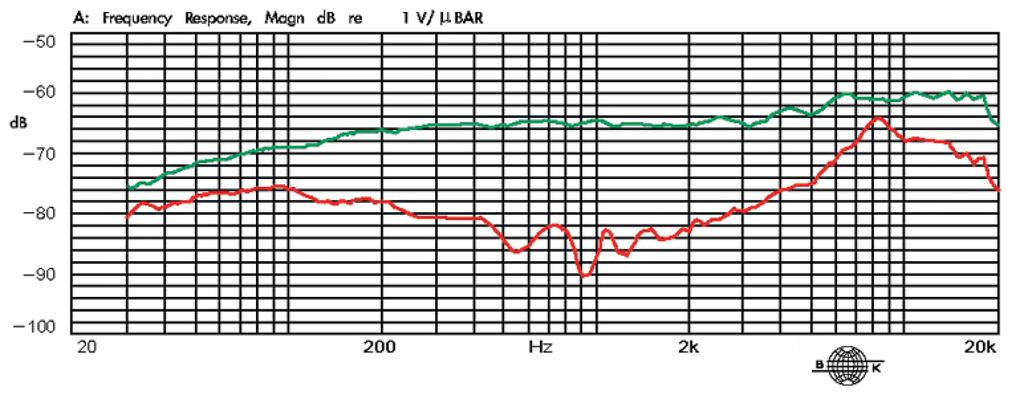

  • Well-balanced frequency response for a genuine and brilliant sound
  • Structure-borne noise isolated cartridge
  • Flexible gooseneck

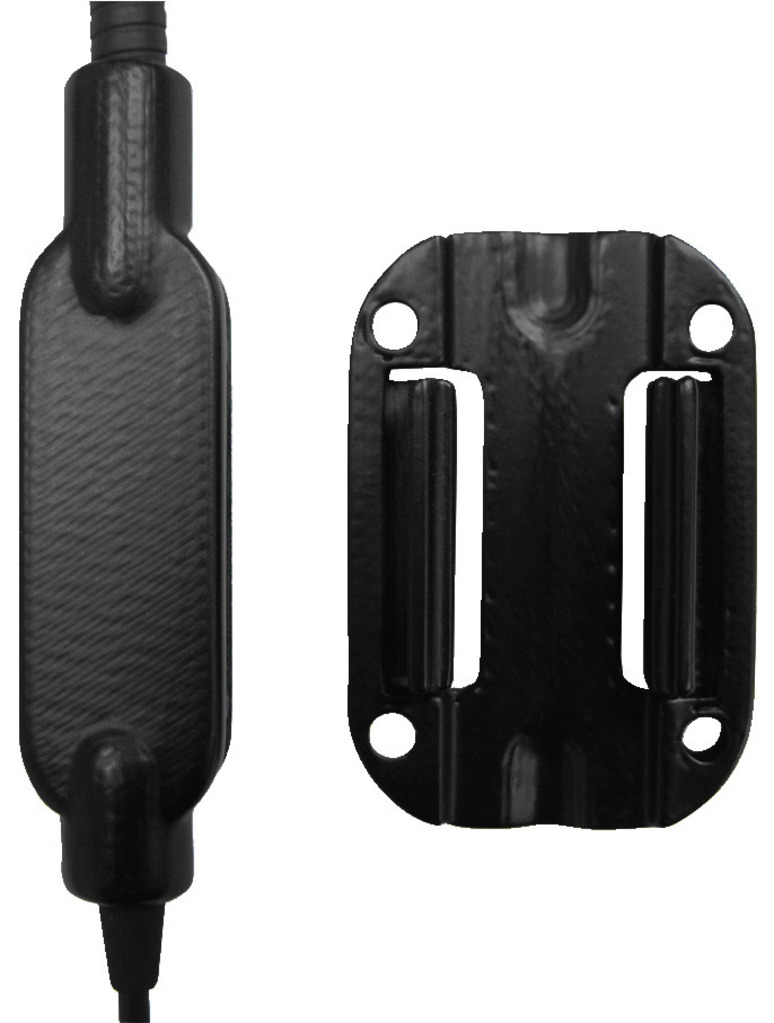

  • Quick-acting holder of special design
  • 3.3 m cable with fitted 3-pole XLR phantom power supply adapter for connection to a corresponding microphone input
  • Supplied in a robust transport case with windshield
Manufacturer information:
JTS PROFESSIONAL CO., LTD.
No. 148, Gongye 9th Rd., Dali Dist.
41280 Taichung City
Taiwan
jts@jts.com.tw

EU-Representative:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

About

Electret instrument microphone
  • For sound pickup of accordions, pianos or wind instruments
  • Well-balanced frequency response for a genuine and brilliant sound
  • Structure-borne noise isolated cartridge
  • Flexible gooseneck
  • Quick-acting holder of special design
  • 3.3 m cable with fitted 3-pole XLR phantom power supply adapter for connection to a corresponding microphone input
  • Supplied in a robust transport case with windshield
Manufacturer information:
JTS PROFESSIONAL CO., LTD.
No. 148, Gongye 9th Rd., Dali Dist.
41280 Taichung City
Taiwan
jts@jts.com.tw

EU-Representative:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Specifications

Description instrument microphone
Transmission method cable
Polar pattern supercardioid
System electret
Audio frequency range 20-20,000 Hz
Nominal impedance 220 Ω ± 30%
Sensitivity 5.6 mV/Pa
Max. sound pressure 130 dB
Power supply 48 V phantom power
Housing material plastic
Admiss. ambient temp. 0-40 °C
Weight 63 g
Cable 3.3 m
Connection 3-pole XLR
Packaging dimensions (W x H x L) 0.17 x 0.085 x 0.37 m
Gross weight 0.85 kg
Net weight 0.63 kg
EAN code 4007754194029
Net weight 0.63 kg

Accessories for CX-516

Category:
phantom power
Input voltage:
via encl.

plug-in power supply

Output voltage:
+48 V
Order no.: 0233820
48 V phantom power supply
