Order no.: 0241140

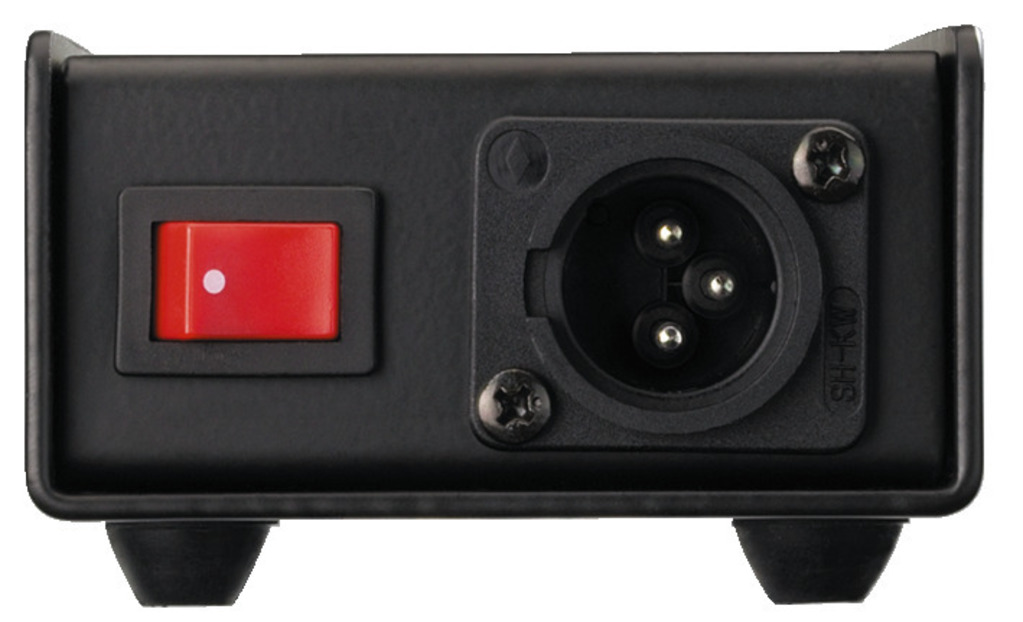

DIB-100

Order no.: 0241140

DIB-100

DI Boxes For an optimum signal transmission from musical instruments to a mixer or amplifier. By using a transformer coupling, interferences due to matching problems, e.g. hum loops, are prevented to a large extent. Input and output are galvanically isolated. For adapting line levels, please use units of the LTR series! DI box 3-fold attenuation switch (0/-20/-40 dB)Ground lift switchInstrument feed-through outputWideband balancing transformerRobust metal housing PRODUCTION PARTNER 04/2013 “The measured values and workmanship give no reason for criticism. When considering the price, too, you can't go wrong.”

continue

About

DI Boxes

For an optimum signal transmission from musical instruments to a mixer or amplifier. By using a transformer coupling, interferences due to matching problems, e.g. hum loops, are prevented to a large extent. Input and output are galvanically isolated.

For adapting line levels, please use units of the LTR series!

DI box

3-fold attenuation switch (0/-20/-40 dB)
Ground lift switch
Instrument feed-through output
Wideband balancing transformer
Robust metal housing

PRODUCTION PARTNER 04/2013

“The measured values and workmanship give no reason for criticism. When considering the price, too, you can't go wrong.”

Specifications

Description	DI box
Frequency range	15-30,000 Hz
Input impedance	50 kΩ
Output impedance	600 Ω (bal.), 50 kΩ (unbal.)
Gain	0/-20/-40 dB
Transmission ratio	10:1
Admiss. ambient temp.	0-40 °C
Dimensions	74 x 45 x 130 mm
Weight	560 g
Inputs	1 x 6.3 mm jack, unbal
Outputs	1 x 6.3 mm jack, unbal., par. out XLR, bal.
