Order no.: 0231700

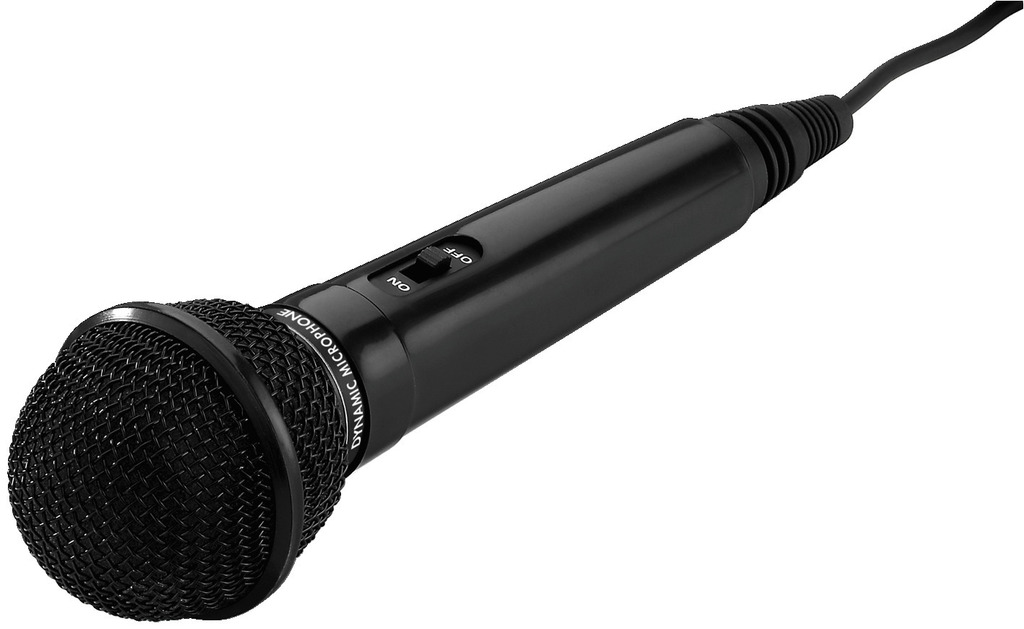

DM-70/SW

Order no.: 0231700

DM-70/SW

Dynamic microphone,

for general PA applications.

Cardioid polar pattern
Plastic version
On/off switch

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

continue

About

Dynamic microphone,

for general PA applications.

Cardioid polar pattern
Plastic version
On/off switch

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Specifications

Description	universal microphone
Transmission method	cable
Polar pattern	cardioid
System	dynamic
Audio frequency range	100-10,000 Hz
Nominal impedance	600 Ω
Sensitivity	1.4 mV/Pa
Housing material	plastic
Admiss. ambient temp.	0-40 °C
Dimensions	Ø 53 mm x 205 mm
Weight	126 g
Cable	3 m, low-noise, 6.3 mm plug
Connection	fitted cable
Packaging dimensions (W x H x L)	0.075 x 0.245 x 0.06 m
Gross weight	0.17 kg
Net weight	0.126 kg

EAN code	4007754094039
Net weight	0.126 kg

Downloads

Accessories for DM-70/SW

Order no.: 0230970

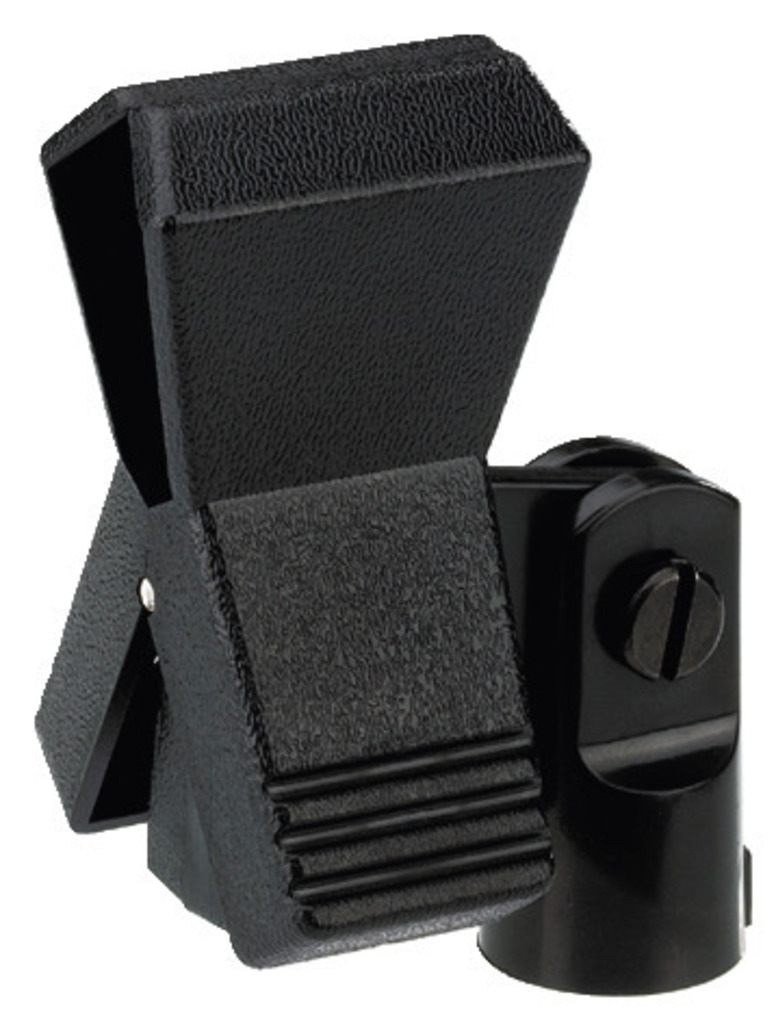

MH-99/SW

Spring-loaded microphone clamp

Description:
spring-loaded microphone clamp

Suitable for:
Ø 19-32 mm

Material:
plastic

Order no.: 0230970

MH-99/SW

Spring-loaded microphone clamp
