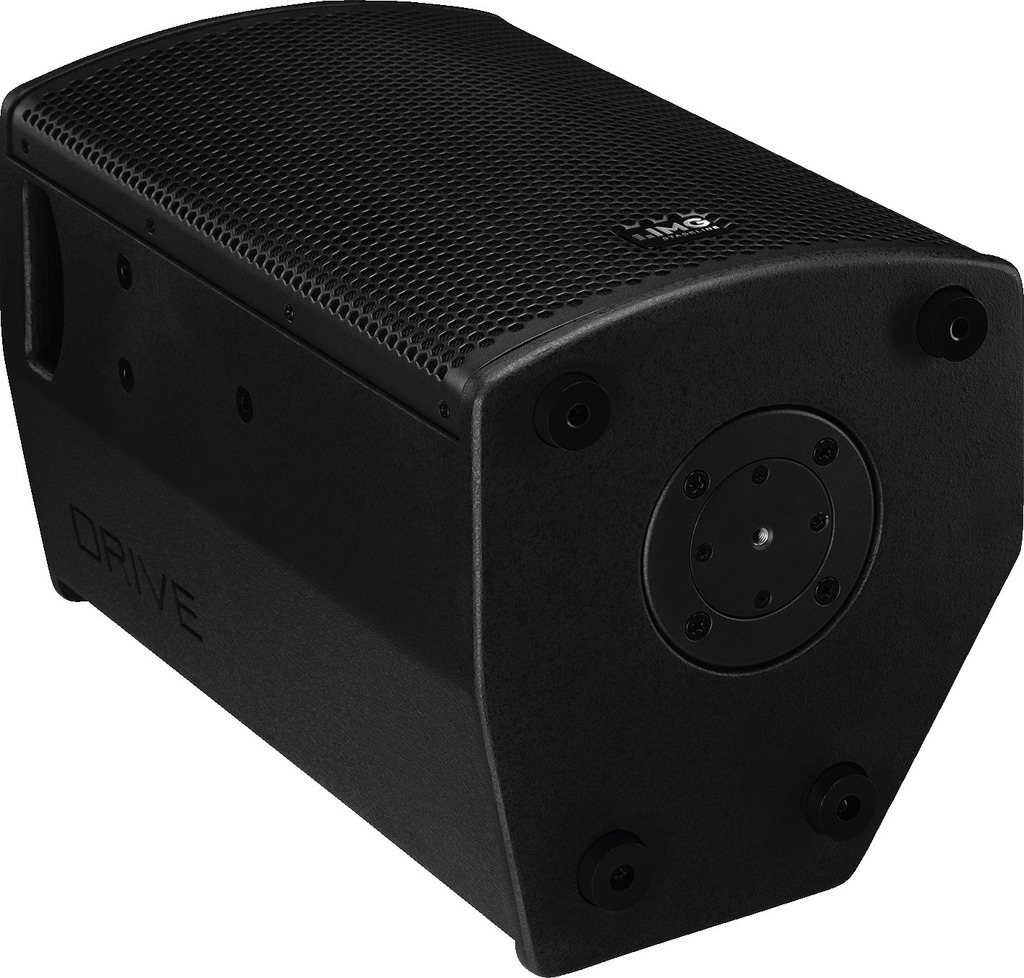

Order no.: 1000196

DRIVE-08P

P191 P560
Order no.: 1000196

DRIVE-08P

With the passive speaker systems of the DRIVE series,
you will get robust and easy-to-use PA speakers which are suitable for versatile applications. These robust and high-quality cabinets made of birch plywood are suitable for general use. The arrangement of the handles allow for easy manageability.
Professional PA speaker system, 300 W
  • Compact 8/2 fulll range system with cabinet made of birch plywood
  • 20 cm (8") bass speaker and 25 mm (1") horn tweeter, can be turned by 90°
  • Protective circuit for the tweeter
  • Excellent sound characteristics
  • High-quality coating and neat workmanship
  • Multi-purpose positioning and installation options
  • Horn tweeter with consistent radiation pattern
  • M8 threaded inserts for suspended installation
  • 2 x SPEAKER terminal IN/OUT
  • Stand sleeve
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
continue

About

With the passive speaker systems of the DRIVE series,
you will get robust and easy-to-use PA speakers which are suitable for versatile applications. These robust and high-quality cabinets made of birch plywood are suitable for general use. The arrangement of the handles allow for easy manageability.
Professional PA speaker system, 300 W
  • Compact 8/2 fulll range system with cabinet made of birch plywood
  • 20 cm (8") bass speaker and 25 mm (1") horn tweeter, can be turned by 90°
  • Protective circuit for the tweeter
  • Excellent sound characteristics
  • High-quality coating and neat workmanship
  • Multi-purpose positioning and installation options
  • Horn tweeter with consistent radiation pattern
  • M8 threaded inserts for suspended installation
  • 2 x SPEAKER terminal IN/OUT
  • Stand sleeve
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Specifications

Active/passive passive
Transmission technology cable
Total power rating 300 W
Power rating (RMS) 150 W
Impedance 8 Ω
Frequency range 60-20,000 Hz
System 8/2 full range
Bass speaker 20 cm (8") bass speaker
Tweeter 25 mm (1") horn tweeter
Number of speakers 2
Speaker size 20 cm (8")
SPL 98 dB/W/m
Max. rated SPL 121 dB
Radiation angle/beam angle H: 90°/V: 60°, horn can be turned
Radiation angle, horizontal 90°
Radiation angle, vertical 60°
Housing material birch plywood
Colour black
Mounting device M8 threaded inserts, stand sleeve
Admiss. ambient temp. 0-40 °C
Dimensions 270 x 460 x 290 mm
Width 270 mm
Height 460 mm
Depth 290 mm
Weight 8.43 kg

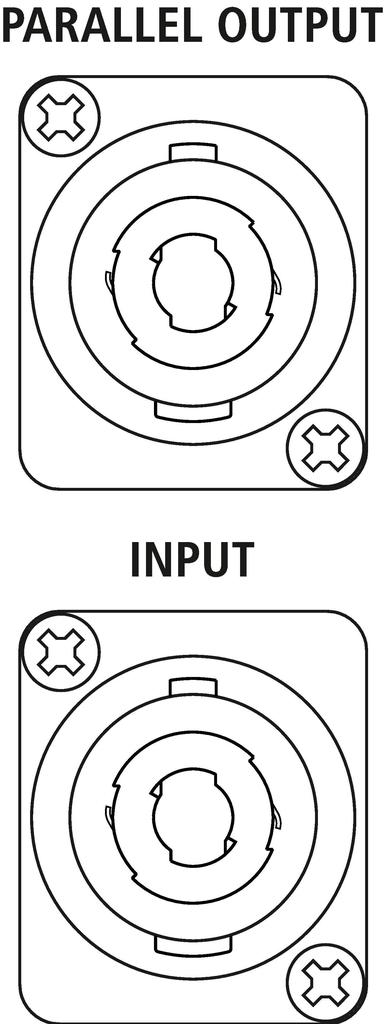

Inputs 1 x SPEAKER jack
Outputs 1 x SPEAKER jack par. out
Packaging dimensions (W x H x L) 0.4 x 0.58 x 0.39 m
Gross weight 11.5 kg
Net weight 8.43 kg
EAN code 4007754276299
Net weight 8.43 kg
