Order no.: 1000199

DRIVE-15P

P161 P620
Order no.: 1000199

DRIVE-15P

With the passive speaker systems of the DRIVE series,
you will get robust and easy-to-use PA speakers which are suitable for versatile applications. These robust and high-quality cabinets made of birch plywood are suitable for general use. The arrangement of the handles allow for easy manageability.
Professional PA speaker system, 700 W
  • Compact 15/2 fulll range system with cabinet made of birch plywood
  • 38 cm (15") bass speaker and 25 mm (1") horn tweeter, can be turned by 90°
  • Protective circuit for the tweeter
  • Excellent sound characteristics
  • High-quality coating and neat workmanship
  • Multi-purpose positioning and installation options
  • Horn tweeter with consistent radiation pattern
  • M8 threaded inserts for suspended installation
  • 2 x SPEAKER terminal IN/OUT
  • Stand sleeve
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
continue

About

With the passive speaker systems of the DRIVE series,
you will get robust and easy-to-use PA speakers which are suitable for versatile applications. These robust and high-quality cabinets made of birch plywood are suitable for general use. The arrangement of the handles allow for easy manageability.
Professional PA speaker system, 700 W
  • Compact 15/2 fulll range system with cabinet made of birch plywood
  • 38 cm (15") bass speaker and 25 mm (1") horn tweeter, can be turned by 90°
  • Protective circuit for the tweeter
  • Excellent sound characteristics
  • High-quality coating and neat workmanship
  • Multi-purpose positioning and installation options
  • Horn tweeter with consistent radiation pattern
  • M8 threaded inserts for suspended installation
  • 2 x SPEAKER terminal IN/OUT
  • Stand sleeve
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Specifications

Active/passive passive
Transmission technology cable
Total power rating 700 W
Power rating (RMS) 350 W
Impedance 8 Ω
Frequency range 40-20,000 Hz
System 15/2 full range
Bass speaker 38 cm (15") bass speaker
Tweeter 25 mm (1") horn tweeter
Number of speakers 2
Speaker size 38 cm (15")
SPL 98 dB/W/m
Max. rated SPL 124 dB
Radiation angle/beam angle H: 90°/V: 60°, horn can be turned
Radiation angle, horizontal 90°
Radiation angle, vertical 60°
Housing material birch plywood
Colour black

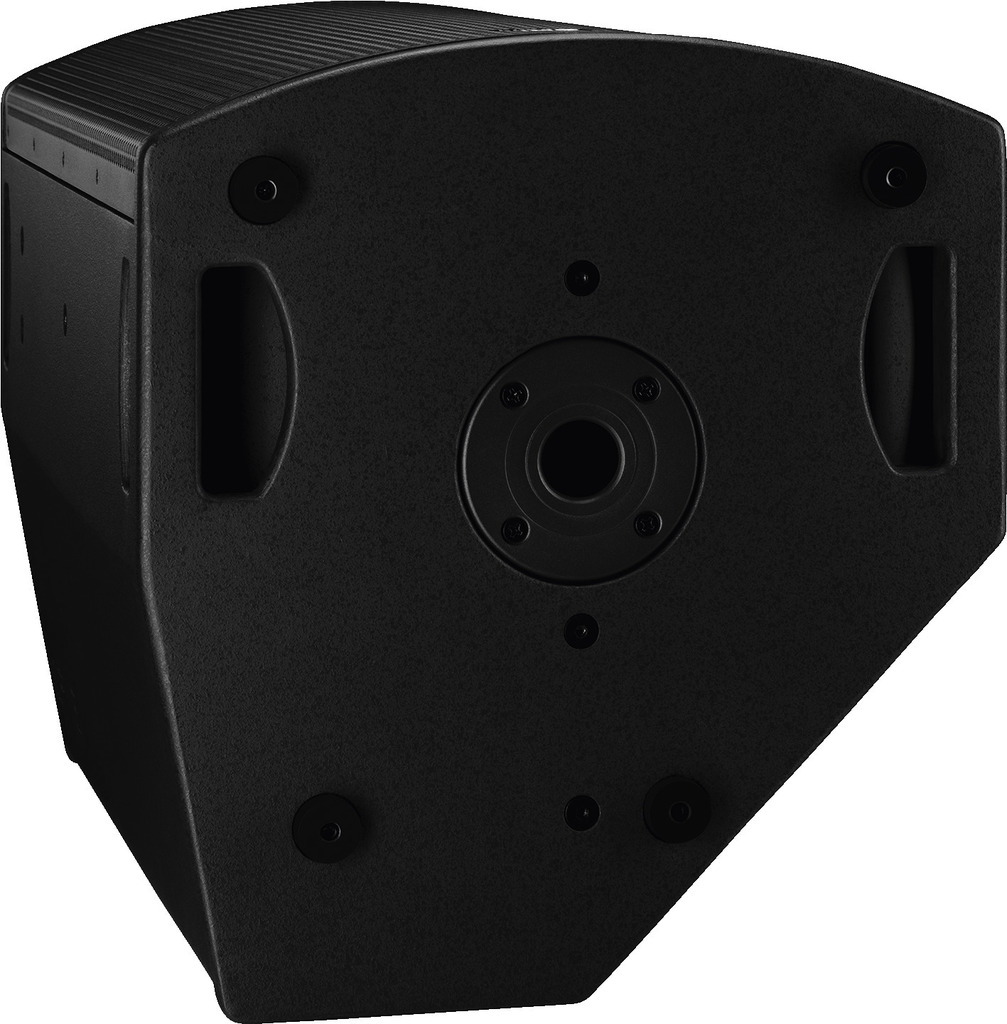

Mounting device M8 threaded inserts, stand sleeve
Admiss. ambient temp. 0-40 °C
Dimensions 415 x 695 x 455 mm
Width 415 mm
Height 695 mm
Depth 455 mm
Weight 20.72 kg

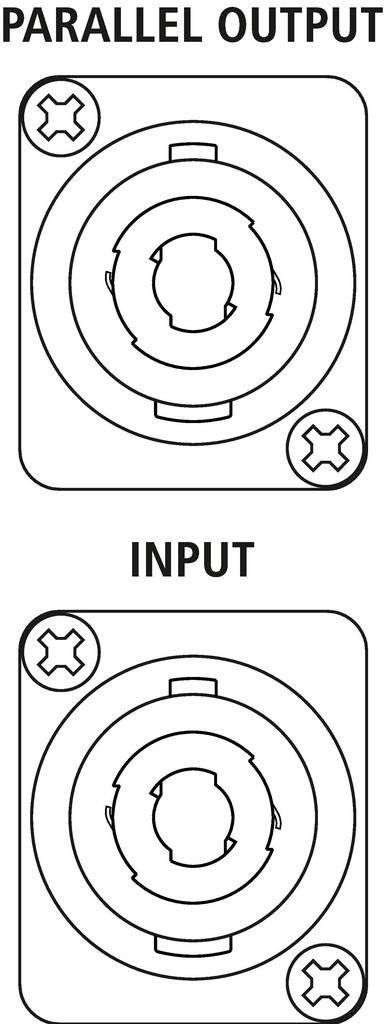

Inputs 1 x SPEAKER jack
Outputs 1 x SPEAKER jack par. out
Packaging dimensions (W x H x L) 0.58 x 0.84 x 0.54 m
Gross weight 26.71 kg
Net weight 20.72 kg
EAN code 4007754276329
Net weight 20.72 kg

Downloads

Accessories for DRIVE-15P

Description:
eye bolt
Suitable for:
suspended system
Features:
M8 x 30 mm
Order no.: 0118990
FLS-190L
Eye bolt, M8 x 30 mm
Login
Intended use:
speakers
Connectors:
2 x NEUTRIK SPEAKON plug NC-2FX
Length:
10 m
Order no.: 0125640
MSC-110/SW
Speaker cable, 10 m, 2-pole NEUTRIK SPEAKON plug
Login
Intended use:
speakers
Connectors:
2 x NEUTRIK SPEAKON plug NC-4FX
Length:
10 m
Order no.: 0125700
MSC-210/SW
Speaker cable, 10 m, 4-pole NEUTRIK SPEAKON plug
Login
Description:
speaker stand
Features:
speaker stand set with nylon bag
Material:
aluminium
Order no.: 0111970
PAST-164SET
Speaker stand set
Login
Description:
wall bracket
Suitable for:
PA speaker systems
Features:
mandrel
Order no.: 0129810
PAST-500/SW
Wall bracket for PA speaker systems
Login
