Order no.: 0231390

DRUMSET-1

Order no.: 0231390

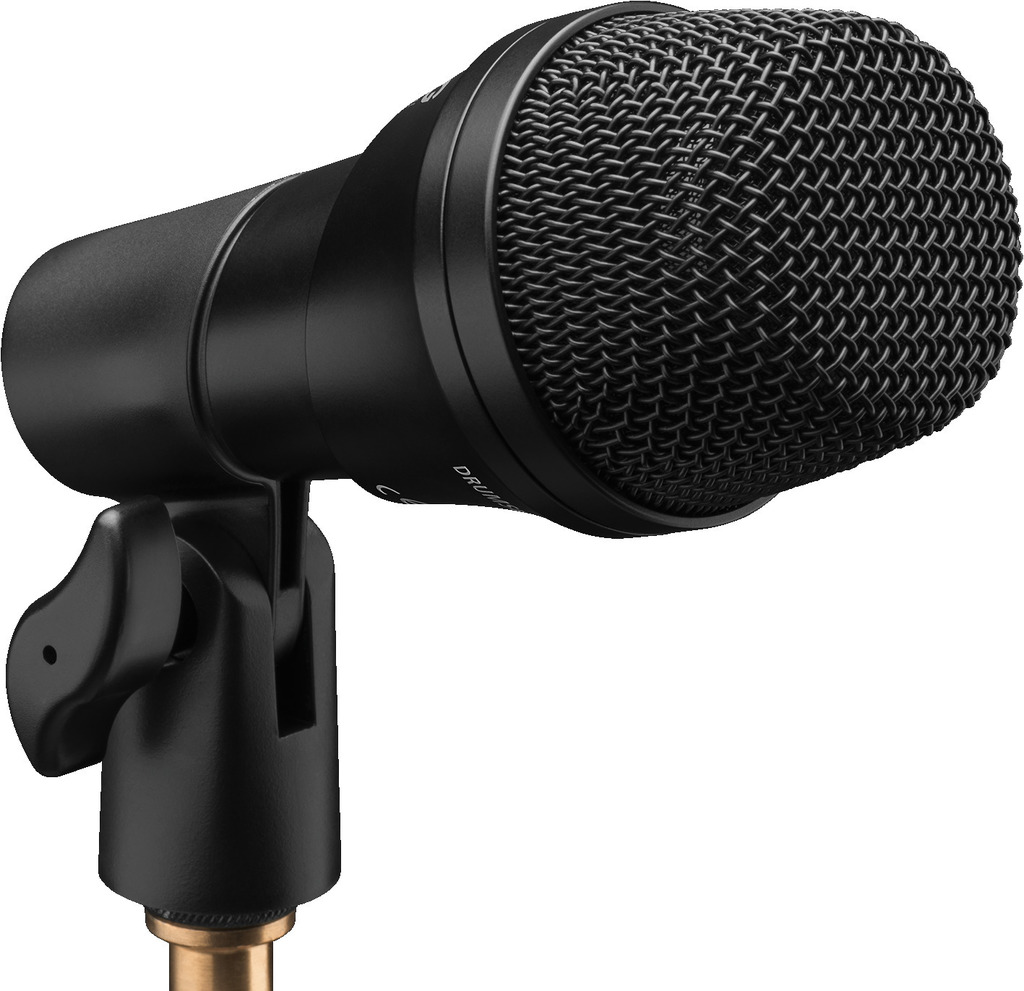

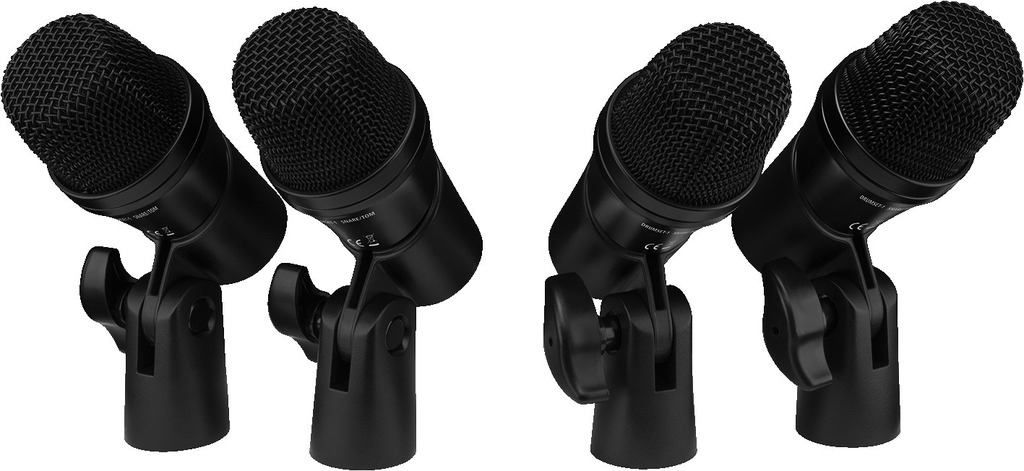

7-piece drum microphone set,

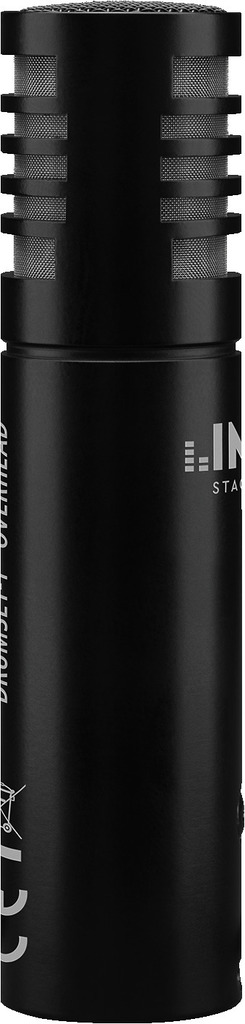

consisting of a dynamic bass drum microphone, four dynamic snare drum/tom-tom microphones and two overhead condenser microphones.

Optimised for sound pickup of drums
Short-bodied microphones
Including microphone holder with 16 mm (⅝") tripod socket and 9 mm (⅜") adapter screw for every microphone

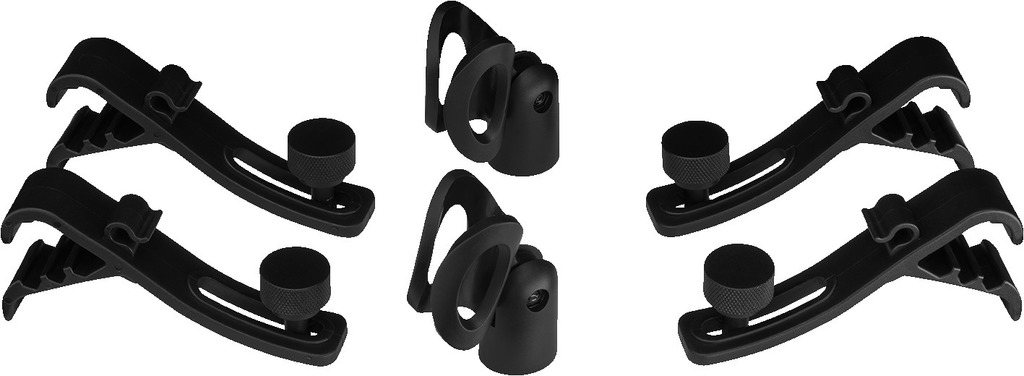

Additional clamps for the snare drum/tom-tom microphones
Supplied in a practical plastic case

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

continue

7-piece drum microphone set,

consisting of a dynamic bass drum microphone, four dynamic snare drum/tom-tom microphones and two overhead condenser microphones.

Optimised for sound pickup of drums
Short-bodied microphones
Including microphone holder with 16 mm (⅝") tripod socket and 9 mm (⅜") adapter screw for every microphone
Additional clamps for the snare drum/tom-tom microphones
Supplied in a practical plastic case

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Description	drum microphones
Transmission method	cable
Polar pattern	bi-directional (bass drum) supercardioid (snare drum/tom-tom) cardioid (overhead)
System	dynamic (bass drum) dynamic (snare drum/tom-tom) electret (overhead)
Audio frequency range	50-10,000 Hz (bass drum) 50-15,000 Hz (snare drum/tom-tom) 50-15,000 Hz (overhead)
Nominal impedance	200 Ω
Sensitivity	1.6 mV/Pa (bass drum) 2.5 mV/Pa (snare drum/tom-tom) 5.6 mV/Pa (overhead)
S/N ratio	66 dB
Max. sound pressure	158 dB (bass drum) 157 dB (snare drum/tom-tom) 161 dB (overhead)
Power supply	DC 48 V, phantom power (overhead)
Admiss. ambient temp.	0-40 °C
Dimensions	Ø 50 mm x 113 mm (bass drum) Ø 40 mm x 93 mm (snare drum/tom-tom) Ø 22 mm x 90 mm (overhead) 430 x 135 x 320 mm (set)
Weight	1.5 kg

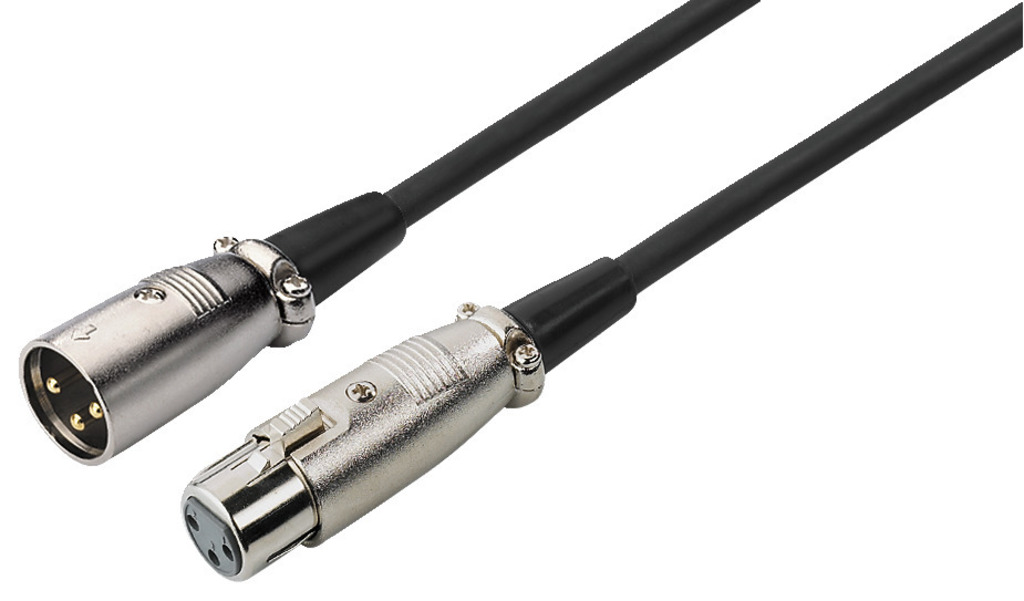

Connection	XLR, bal.
Packaging dimensions (W x H x L)	0.42 x 0.315 x 0.125 m
Gross weight	2.79 kg
Net weight	2.6 kg
