Order no.: 0100040

DT-100

P330

P460

P1430

Order no.: 0100040

DT-100

Hi-fi dome tweeter, 30 W, 8 Ω

Soft dome of high power capability, classic rectangular size
Ferrofluid
Good linearity with extra brilliant characteristics
Reproduction rich in detail

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

continue

About

Hi-fi dome tweeter, 30 W, 8 Ω

Soft dome of high power capability, classic rectangular size
Ferrofluid
Good linearity with extra brilliant characteristics
Reproduction rich in detail

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Specifications

Impedance (Z)	8 Ω
Transmission technology	cable

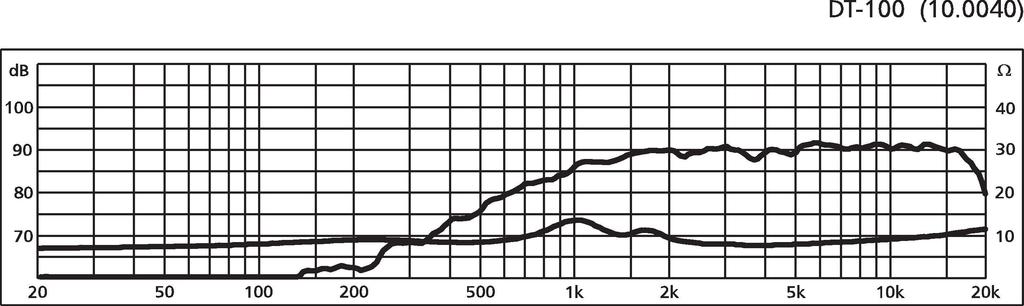

Frequency range	fx-20,000 Hz
Resonant frequency (fs)	1,500 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.)	2,500 Hz
Power rating (RMS)	30 W
Peak music power output (MAX)	60 W
SPL	92 dB/W/m

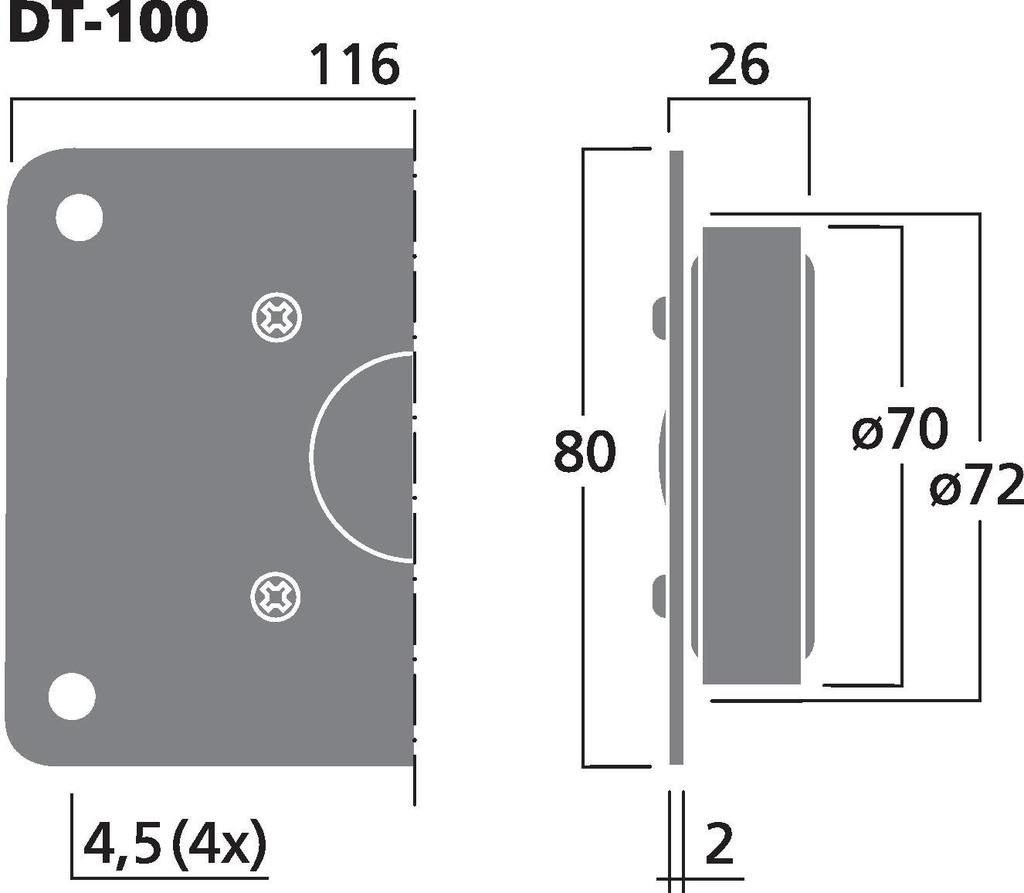

Voice coil diameter	Ø 25 mm
Magnet diameter	Ø 70 mm
Mounting cutout	Ø 72 mm
Mounting depth	26 mm
Dimensions	116 x 80 x 26 mm
Width	116 mm
Height	80 mm
Depth	26 mm
Colour	black
Admiss. ambient temp.	0-40 °C
Weight	0.525 kg
Packing unit	1
Type of speaker	1"
Packaging dimensions (W x H x L)	0.09 x 0.05 x 0.125 m
Gross weight	0.58 kg
Net weight	0.525 kg

EAN code	4007754005264
Net weight	0.525 kg
