Order no.: 0259613

E-7HHSETD/5

Order no.: 0259613

E-7HHSETD/5

UHF PLL audio transmission set, consisting of: 2-channel diversity UHF PLL receiver E-7DU/5 Hand-held UHF PLL condenser transmitter (set of 2) E-7THD/5 Carrier frequency range: 504-542 MHzFor specifications, please refer to the individual items. There are restrictions or requirements within the EU! Please read the notes regarding wireless systems in the section “IMPORTANT INFORMATION”!

continue

About

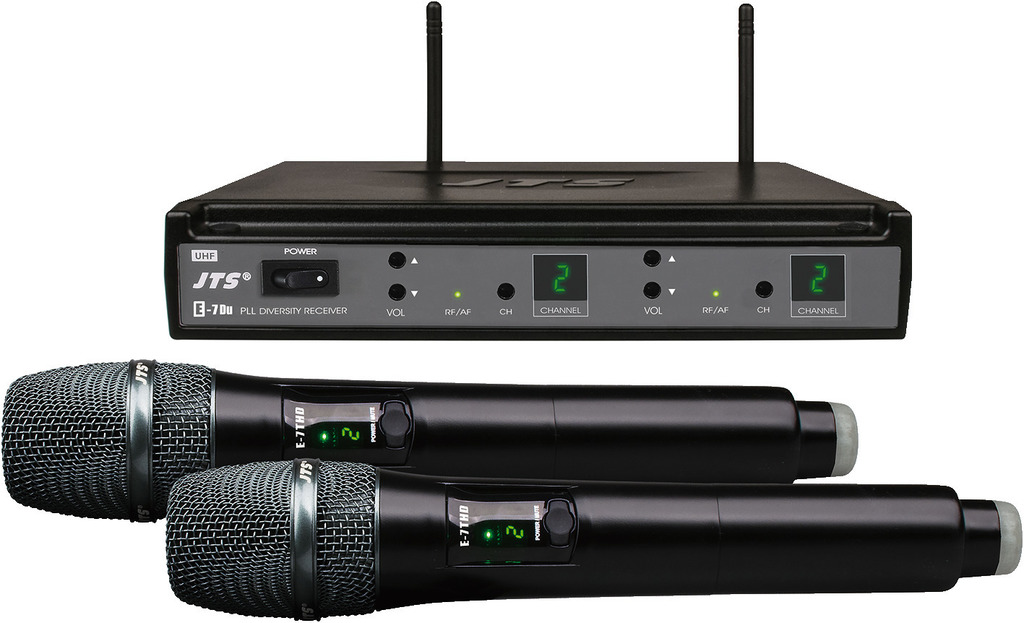

UHF PLL audio transmission set,

consisting of:

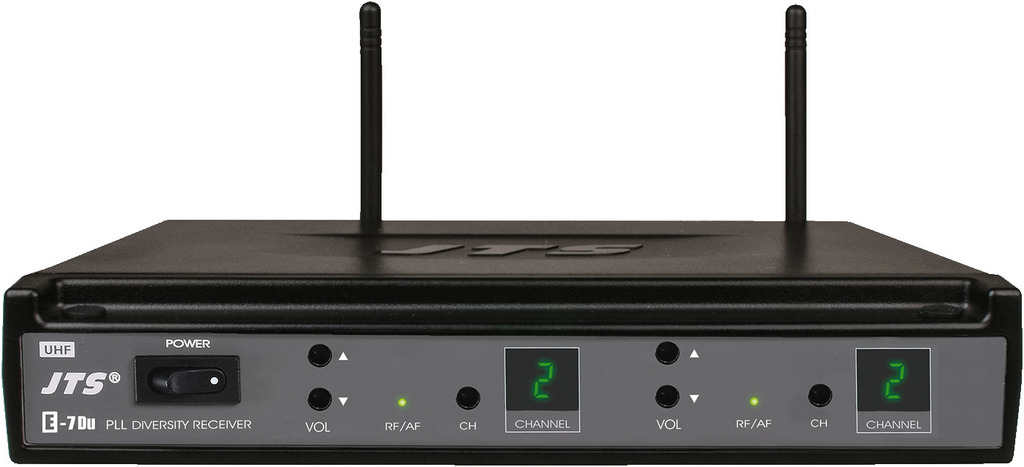

2-channel diversity UHF PLL receiver E-7DU/5

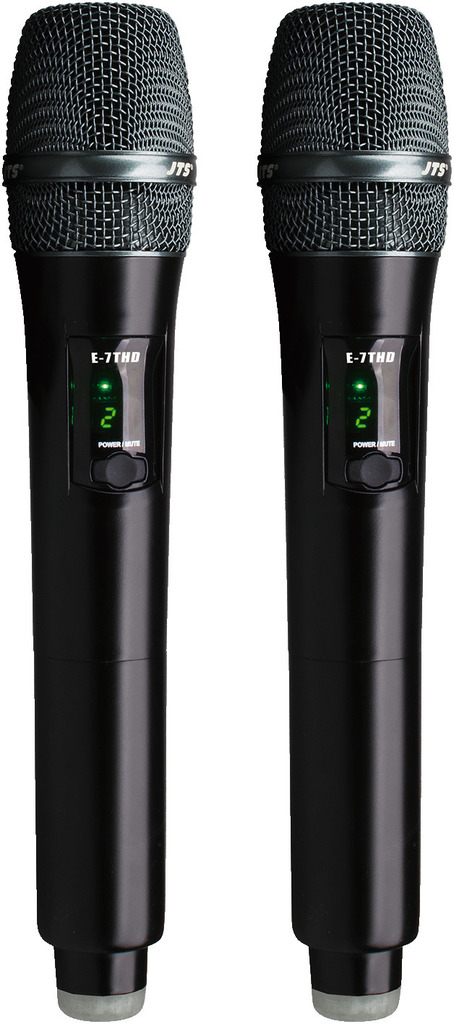

Hand-held UHF PLL condenser transmitter (set of 2) E-7THD/5

Carrier frequency range: 504-542 MHz
For specifications, please refer to the individual items.

There are restrictions or requirements within the EU!

Please read the notes regarding wireless systems in the section “IMPORTANT INFORMATION”!

Specifications

Description	UHF PLL audio transmission set
Carrier frequency range	506-542 MHz
Audio frequency range	40-18,000 Hz
Channels	2
THD	< 0.6%
Dynamic range	> 100 dB
Admiss. ambient temp.	0-40 °C
Power supply transmitter	2 x batt. AA size, alkaline (not supplied)
Audio signal receiver	180 mV jack
Power supply receiver	via encl. power supply
Width receiver	221 mm
Height receiver	40 mm
Depth receiver	152 mm
Connections receiver	1 x 6.3 mm jack, bal.
