Order no.: 1000903

EAM-17DT

Order no.: 1000903

EAM-17DT

PA desktop microphone (push-to-talk) with integrated Dante® module Back electret (array with 17 cartridges) Supercardioid polar pattern Silent electronic push-button Selectable operating modes: PTM, PTT, ON, OFF RJ45 jack for connection to a Dante® network Power supply via PoE (Power over Ethernet) Configuration software is available via MONACOR ACADEMY System requirements Dante®: Windows 7/8/10 or MacOS The brand Dante® as well as any Dante® software which may have been integrated into these products are licensed by Audinate Pty Ltd. RJ45 connection is only possible with short body plug. Standard RJ45 plugs are not suitable.

continue

About

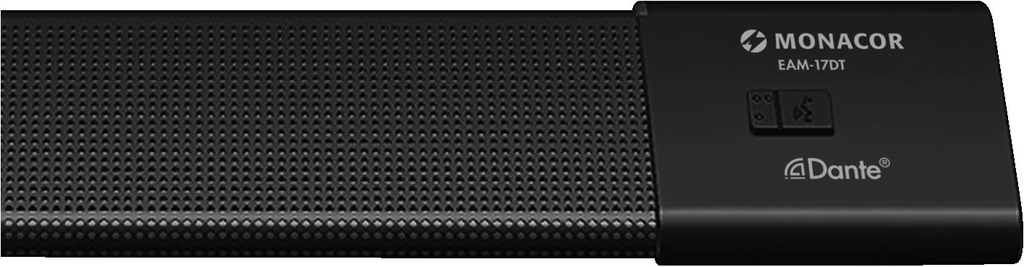

PA desktop microphone (push-to-talk) with integrated Dante^® module

Back electret (array with 17 cartridges)
Supercardioid polar pattern
Silent electronic push-button
Selectable operating modes: PTM, PTT, ON, OFF
RJ45 jack for connection to a Dante^® network
Power supply via PoE (Power over Ethernet)
Configuration software is available via MONACOR ACADEMY

System requirements Dante^®: Windows 7/8/10 or MacOS

The brand Dante^® as well as any Dante^® software which may have been integrated into these products are licensed by Audinate Pty Ltd.

RJ45 connection is only possible with short body plug. Standard RJ45 plugs are not suitable.

Specifications

Description	PA desktop microphone (push-to-talk)
Transmission method	Dante^® network
Polar pattern	supercardioid
System	back electret (array with 17 cartridges)
Audio frequency range	80-20,000 Hz
S/N ratio	65 dB at 1 kHz
Max. sound pressure	106 dB
Power supply	PoE
Housing material	metal/steel
Admiss. ambient temp.	0-40 °C
Dimensions	348 x 31 x 60 mm
Weight	386 g
Connection	RJ45
Packing dimensions (W x H x L)	0.096 x 0.072 x 0.425 m
Gross weight	0.56 kg
Net weight	0.393 kg
