Order no.: 0233480

ECM-250

Order no.: 0233480

ECM-250

Electret microphone set,
consisting of two overhead electret microphones.
  • Optimised for sound pickup of drum combinations and percussion instruments
  • Short-bodied microphones
  • Low cut switch, selectable 10 dB attenuation
  • 48 V phantom power
  • Including microphone holder with 16 mm (⅝") tripod socket and 9 mm (⅜") adapter screw
  • Supplied in a practical plastic case
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
continue

About

Electret microphone set,
consisting of two overhead electret microphones.
  • Optimised for sound pickup of drum combinations and percussion instruments
  • Short-bodied microphones
  • Low cut switch, selectable 10 dB attenuation
  • 48 V phantom power
  • Including microphone holder with 16 mm (⅝") tripod socket and 9 mm (⅜") adapter screw
  • Supplied in a practical plastic case
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Specifications

Description overhead microphone
Transmission method cable
Polar pattern cardioid
System electret
Audio frequency range 50-16,000 Hz
Nominal impedance 200 Ω
Sensitivity 18/5.6 mV/Pa
S/N ratio 66 dB
Max. sound pressure 130 dB
Power supply DC 48 V, phantom power
Admiss. ambient temp. 0-40 °C
Dimensions Ø 19 mm x 80 mm
Weight 25 g
Connection XLR, quasi-balanced
Packaging dimensions (W x H x L) 0.16 x 0.085 x 0.275 m
Gross weight 0.515 kg
Net weight 0.145 kg
EAN code 4007754174427
Net weight 0.145 kg

Downloads

Accessories for ECM-250

Category:
phantom power
Input voltage:
via encl.

plug-in power supply

Output voltage:
+48 V
Order no.: 0233820
EMA-3
48 V phantom power supply
Login
Intended use:
audio, microphone
Connectors:
1 x NEUTRIK XLR plug,

1 x NEUTRIK XLR inline jack

Length:
6 m
Order no.: 0066000
MECN-600/SW
XLR cable, 6 m, NEUTRIK
Login
Description:
microphone preamplifier
Frequency range:
20-20,000 Hz
Input sensitivity:
0.16-150 mV

switchable

Order no.: 0320710
MPA-202
2-channel low-noise microphone preamplifier
Login

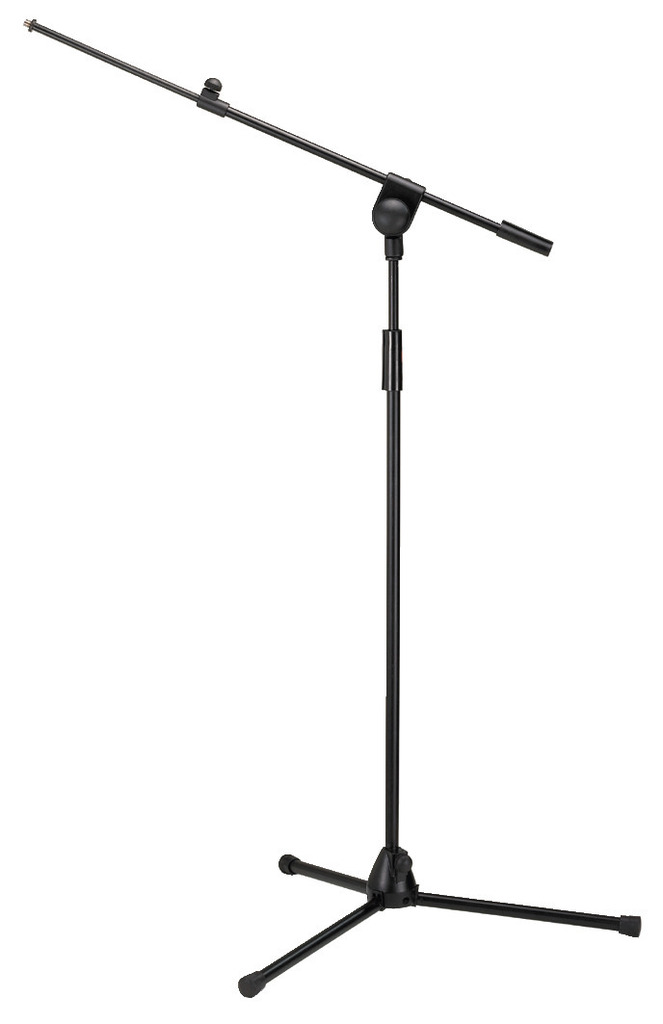

Description:
microphone floor stand
Colour:
black
Adjustable height:
106-242 cm
Order no.: 0232930
MS-60/SW
Microphone floor stand
