Order no.: 0235140

ECM-270

Order no.: 0235140

ECM-270

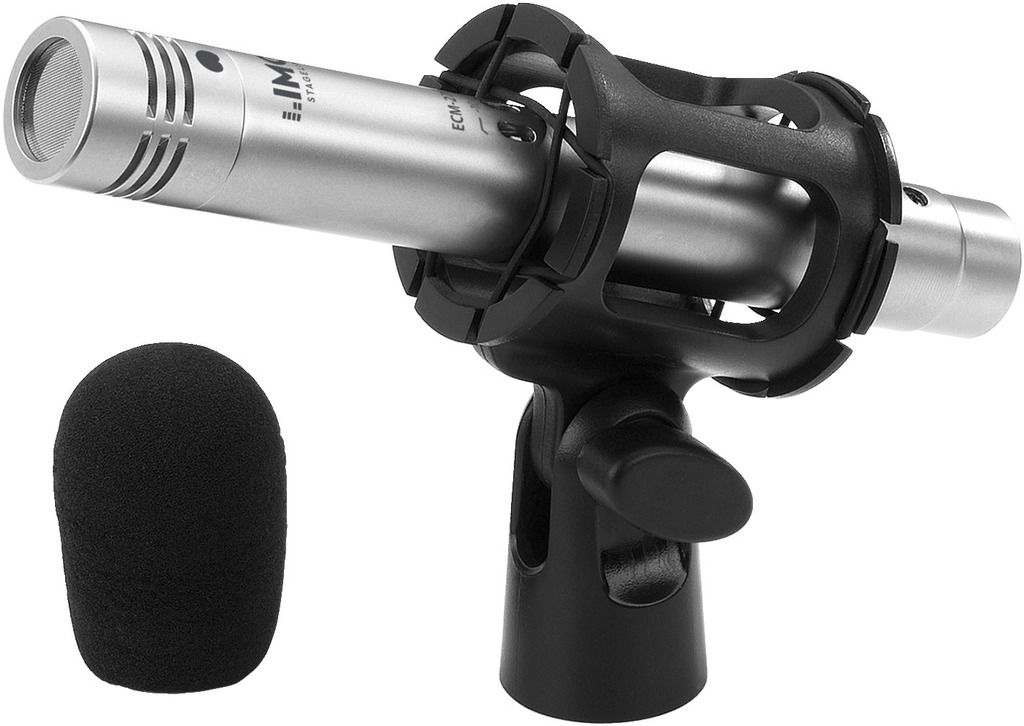

Professional condenser microphone,

for studio applications and live performances. Ideally suited for direct or overhead sound pickup of acoustic instruments and vocals.

Back electret cardridge with cardioid polar pattern
Low cut switch
Selectable 10 dB attenuation
Electronically balanced output
Robust brass body of high quality
Supplied accessories: robust hard-sided case, microphone windshield, microphone support (spider) for 16 mm (⅝") stand

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

continue

About

Professional condenser microphone,

for studio applications and live performances. Ideally suited for direct or overhead sound pickup of acoustic instruments and vocals.

Back electret cardridge with cardioid polar pattern
Low cut switch
Selectable 10 dB attenuation
Electronically balanced output
Robust brass body of high quality
Supplied accessories: robust hard-sided case, microphone windshield, microphone support (spider) for 16 mm (⅝") stand

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Specifications

Description	electret microphone
Transmission method	cable
Polar pattern	cardioid
System	back electret
Audio frequency range	50-18,000 Hz
Nominal impedance	200 Ω
Sensitivity	5.6 mV/Pa
S/N ratio	> 60 dB
Max. sound pressure	135 dB
Power supply	DC 48 V, phantom power
Housing material	brass
Admiss. ambient temp.	0-40 °C
Dimensions	Ø 20 mm x 150 mm
Weight	140 g
Connection	XLR, bal.
Packaging dimensions (W x H x L)	0.285 x 0.08 x 0.22 m
Gross weight	0.621 kg
Net weight	0.191 kg

EAN code	4007754194982
Net weight	0.191 kg

Downloads

Accessories for ECM-270

Order no.: 0233820

EMA-3

48 V phantom power supply

Category:
phantom power

Input voltage:
via encl.

plug-in power supply

Output voltage:
+48 V

Order no.: 0233820

EMA-3

48 V phantom power supply

Order no.: 0066000

MECN-600/SW

XLR cable, 6 m, NEUTRIK

Intended use:
audio, microphone

Connectors:
1 x NEUTRIK XLR plug,

1 x NEUTRIK XLR inline jack

Length:
6 m

Order no.: 0066000

MECN-600/SW

XLR cable, 6 m, NEUTRIK

Order no.: 0320650

MPA-102

1-channel low-noise microphone preamplifier

Description:
microphone preamplifier

Frequency range:
20-20,000 Hz

Input sensitivity:
0.3-150 mV,

switchable

Order no.: 0320650

MPA-102

1-channel low-noise microphone preamplifier

Order no.: 0232930

MS-60/SW

Microphone floor stand

Description:
microphone floor stand

Colour:
black

Adjustable height:
106-242 cm

Order no.: 0232930

MS-60/SW

Microphone floor stand
