Order no.: 0236950

ECMS-60

Order no.: 0236950

ECMS-60

Large diaphragm condenser microphone,
for professional studio applications.
  • Compact design
  • 2.5 cm (1") extra thin gold-plated diaphragm
  • 48 V phantom power

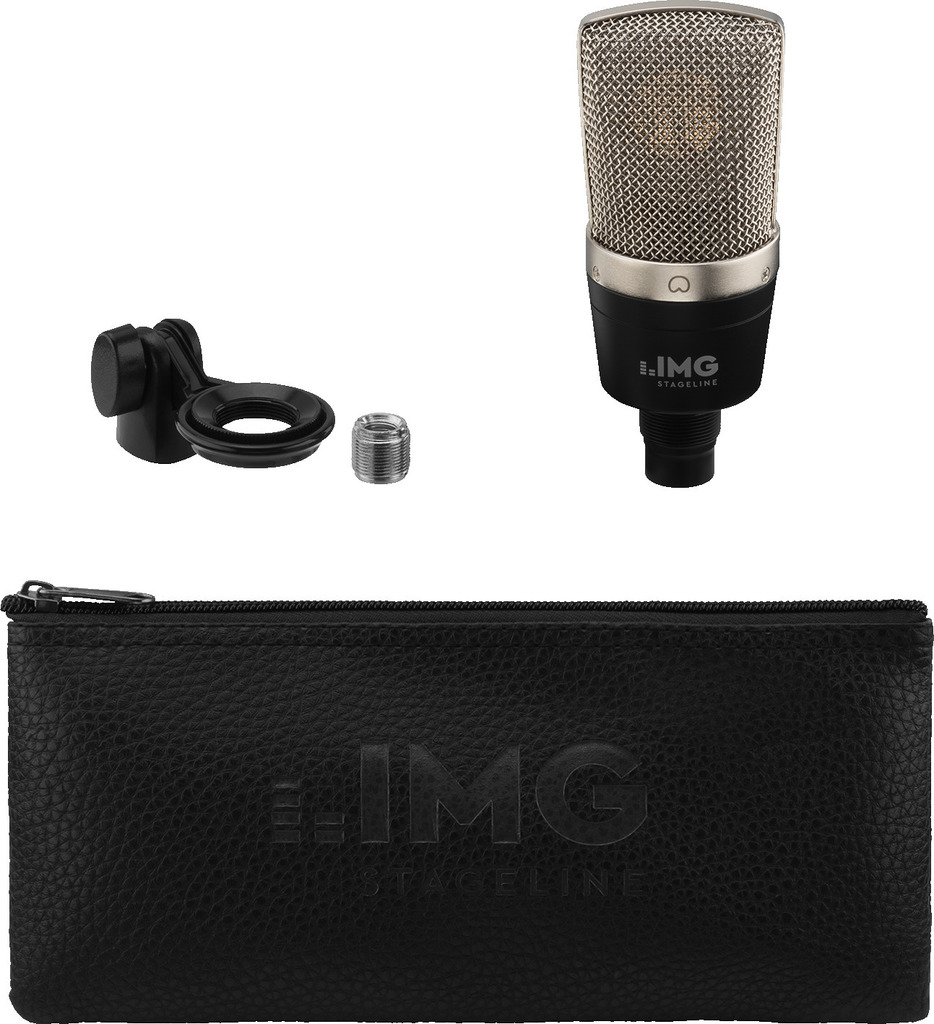

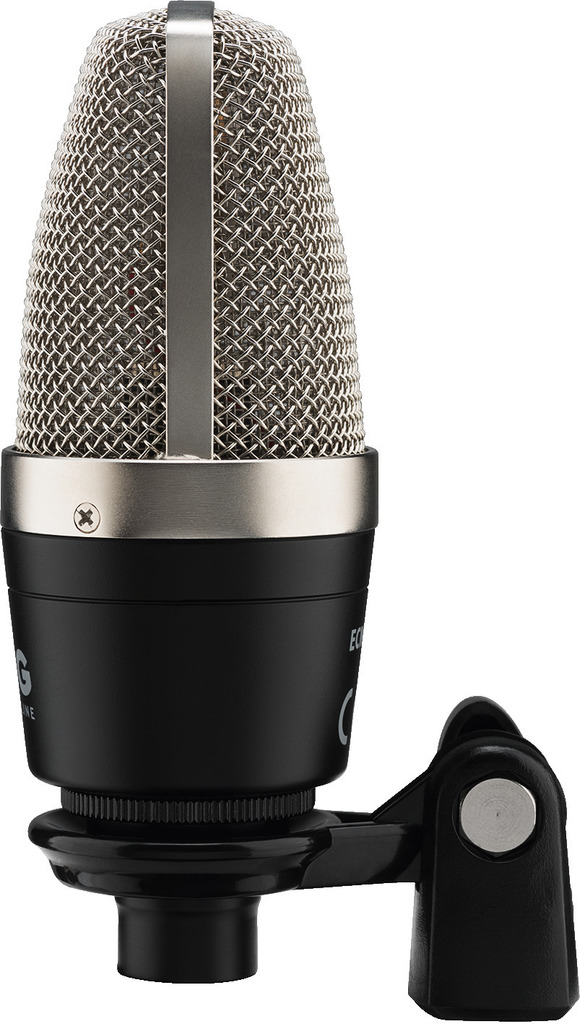

  • Supplied with microphone support with 16 mm (⅝") tripod socket and 9 mm (⅜") adapter screw and leather bag
delamar.de 02/2018
“Large diaphragm condenser microphone of compact size with cardioid polar pattern. The ECMS-60 from IMG STAGELINE is a particularly space-saving microphone which is very well-suited for mounting onto a stand. It provides a flawless sound for this price class: low noise, well-balanced and a great level of detail. The microphone is of neat workmanship and features a well-dosed proximity effect.
Who is it for? It is suitable for beginners up to semi-professionals who are looking for a compact microphone for solo parts and podcasts.”
recording magazin 02/2019

“A fine studio microphone with accessories which is available at an attractive price and, of course, suitable for stage applications. The excellent workmanship, perfectly satisfying sound quality and the low internal noise are outstanding.”
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

About

Large diaphragm condenser microphone,
for professional studio applications.
  • Compact design
  • 2.5 cm (1") extra thin gold-plated diaphragm
  • 48 V phantom power
  • Supplied with microphone support with 16 mm (⅝") tripod socket and 9 mm (⅜") adapter screw and leather bag
delamar.de 02/2018
“Large diaphragm condenser microphone of compact size with cardioid polar pattern. The ECMS-60 from IMG STAGELINE is a particularly space-saving microphone which is very well-suited for mounting onto a stand. It provides a flawless sound for this price class: low noise, well-balanced and a great level of detail. The microphone is of neat workmanship and features a well-dosed proximity effect.
Who is it for? It is suitable for beginners up to semi-professionals who are looking for a compact microphone for solo parts and podcasts.”
recording magazin 02/2019

“A fine studio microphone with accessories which is available at an attractive price and, of course, suitable for stage applications. The excellent workmanship, perfectly satisfying sound quality and the low internal noise are outstanding.”
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Specifications

Description large diaphragm microphone
Transmission method cable
Polar pattern cardioid
System FET condenser
Audio frequency range 20-20,000 Hz
Nominal impedance 200 Ω
Sensitivity 17.8 mV/Pa
S/N ratio > 70 dB
Max. sound pressure 125 dB
Power supply DC 48 V, phantom power
Housing material metal
Admiss. ambient temp. 0-40 °C
Dimensions Ø 50 mm x 130 mm
Weight 290 g

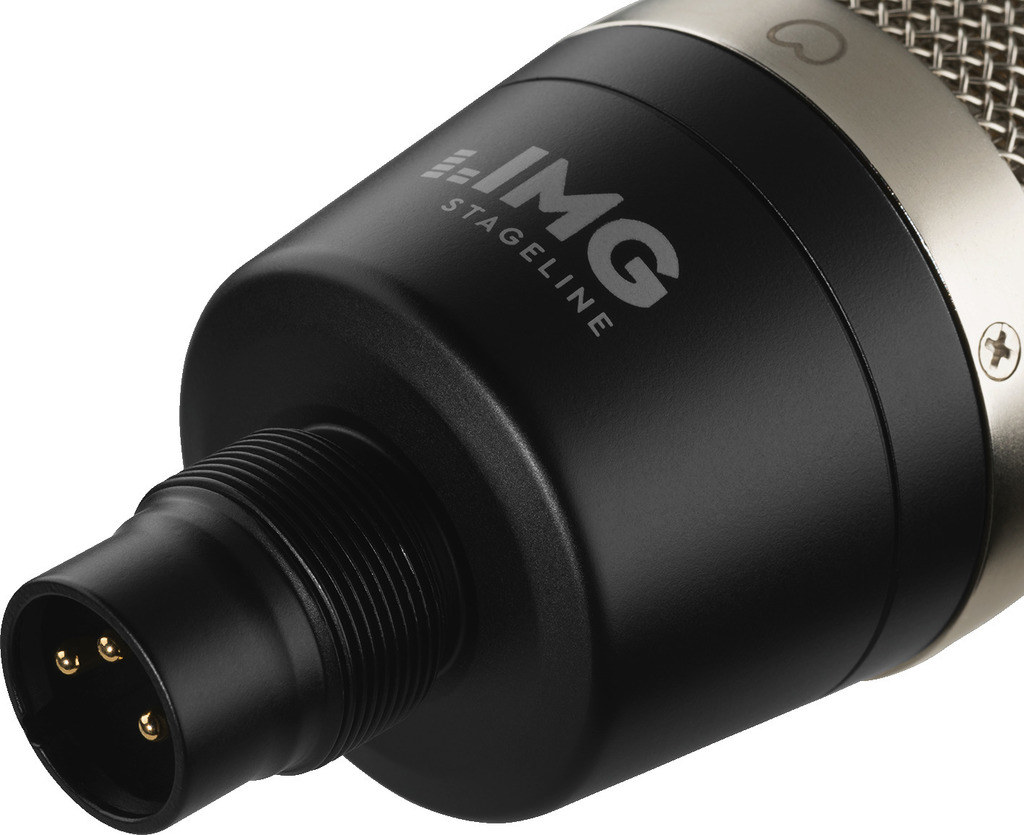

Connection XLR, bal.
Packaging dimensions (W x H x L) 0.16 x 0.065 x 0.195 m
Gross weight 0.476 kg
Net weight 0.365 kg
EAN code 4007754259971
Net weight 0.365 kg
