Order no.: 0236960

ECMS-70

Order no.: 0236960

ECMS-70

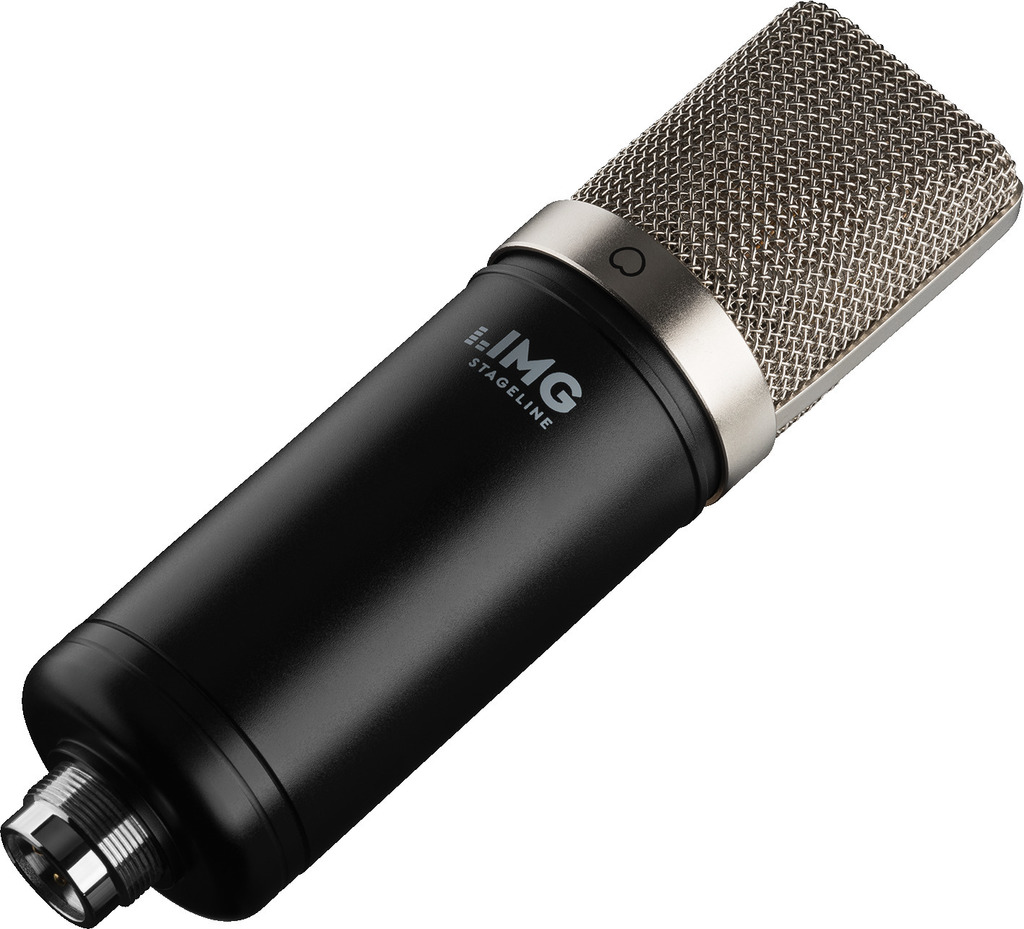

Large diaphragm condenser microphone,

for professional studio applications.

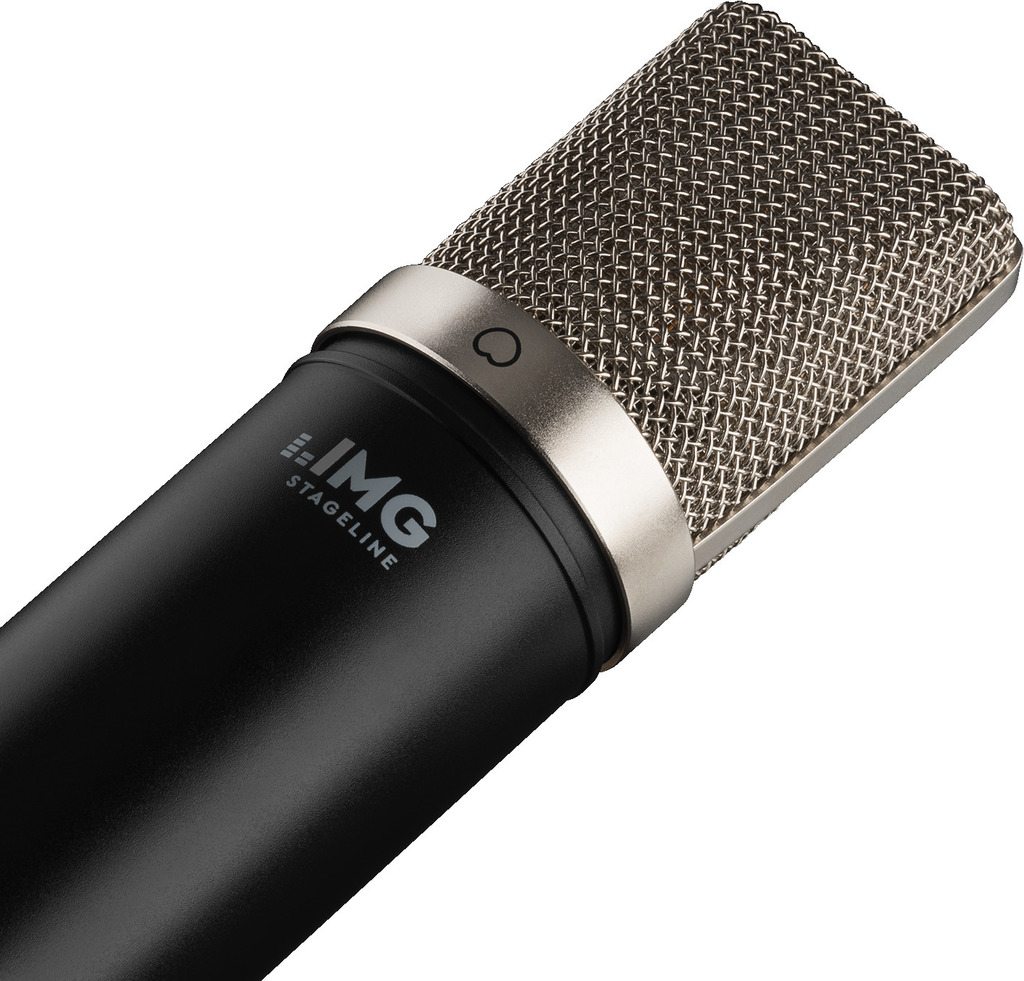

2.5 cm (1") extra thin gold-plated diaphragm
48 V phantom power

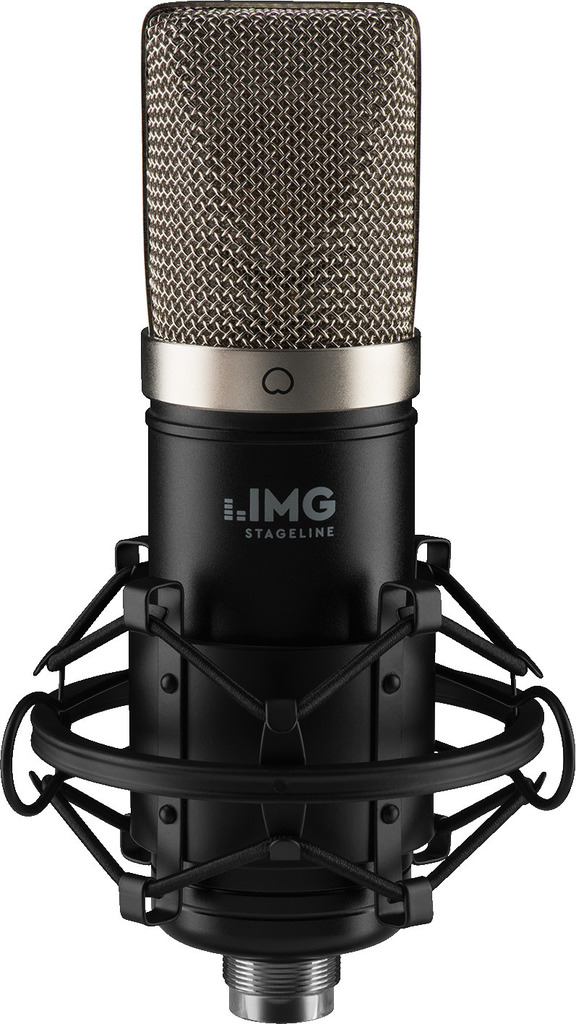

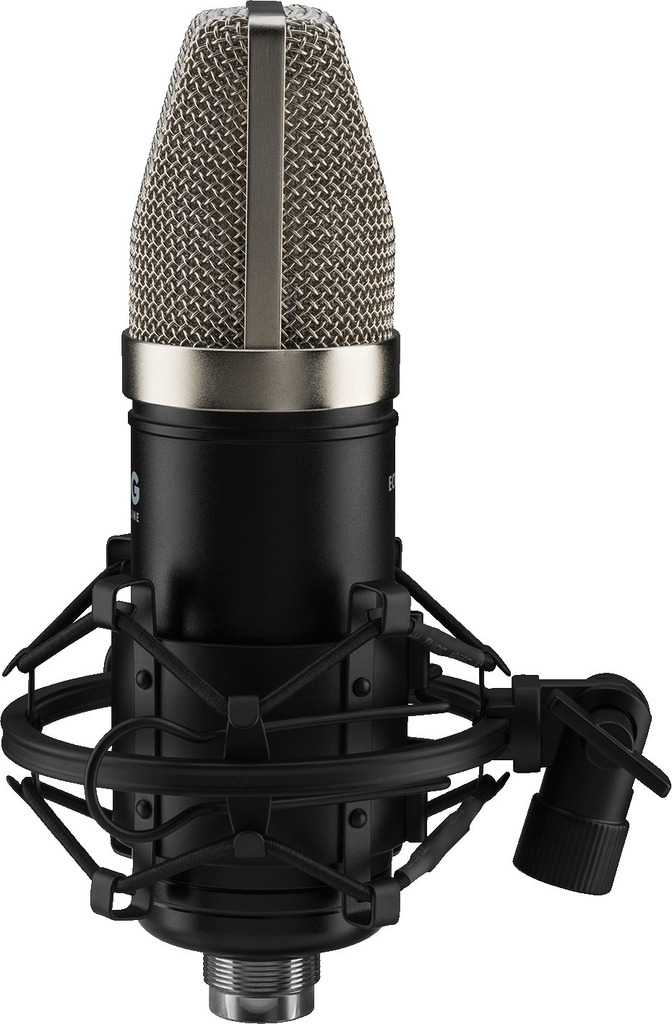

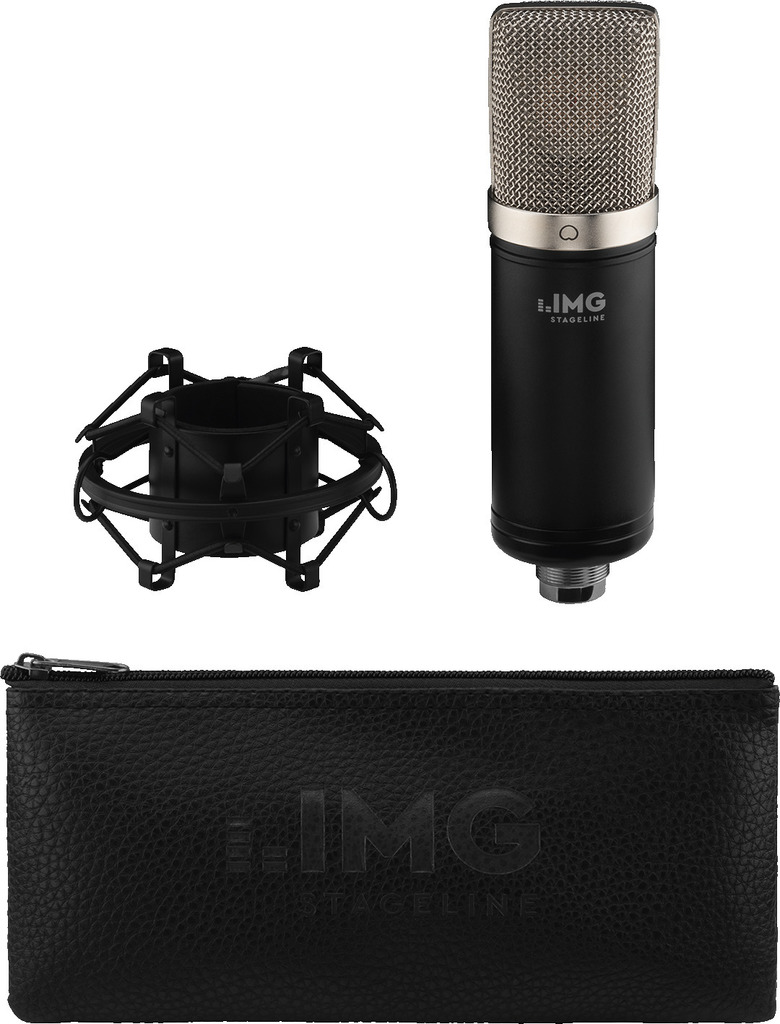

Supplied with vibration absorbing support (spider) with 16 mm (⅝") tripod socket and 9 mm (⅜") adapter screw, microphone windshield and leather bag

delamar.de 03/2018

“Easy-to-use large diaphragm condenser microphone with cardioid polar pattern at an attractive price. The ECMS-70 from IMG STAGELINE provides an excellent sound ... a full-bodied, relaxing sound with subtle treble boost, sufficient detail and almost non-existent background noise. It features a low weight and is of neat workmanship. ... all in all, a top microphone for the intended target group. Who is it for? It is suitable for people who want more when they start with home recording of vocals and co. and for advanced users up to semi-professionals.”

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

continue

About

Large diaphragm condenser microphone,

for professional studio applications.

2.5 cm (1") extra thin gold-plated diaphragm
48 V phantom power
Supplied with vibration absorbing support (spider) with 16 mm (⅝") tripod socket and 9 mm (⅜") adapter screw, microphone windshield and leather bag

delamar.de 03/2018

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Specifications

Description	large diaphragm microphone
Transmission method	cable
Polar pattern	cardioid
System	condenser
Audio frequency range	20-20,000 Hz
Nominal impedance	150 Ω
Sensitivity	20 mV/Pa
S/N ratio	78 dB
Max. sound pressure	132 dB
Power supply	DC 48 V, phantom power
Housing material	metal
Admiss. ambient temp.	0-40 °C
Dimensions	Ø 50 mm x 185 mm
Weight	310 g

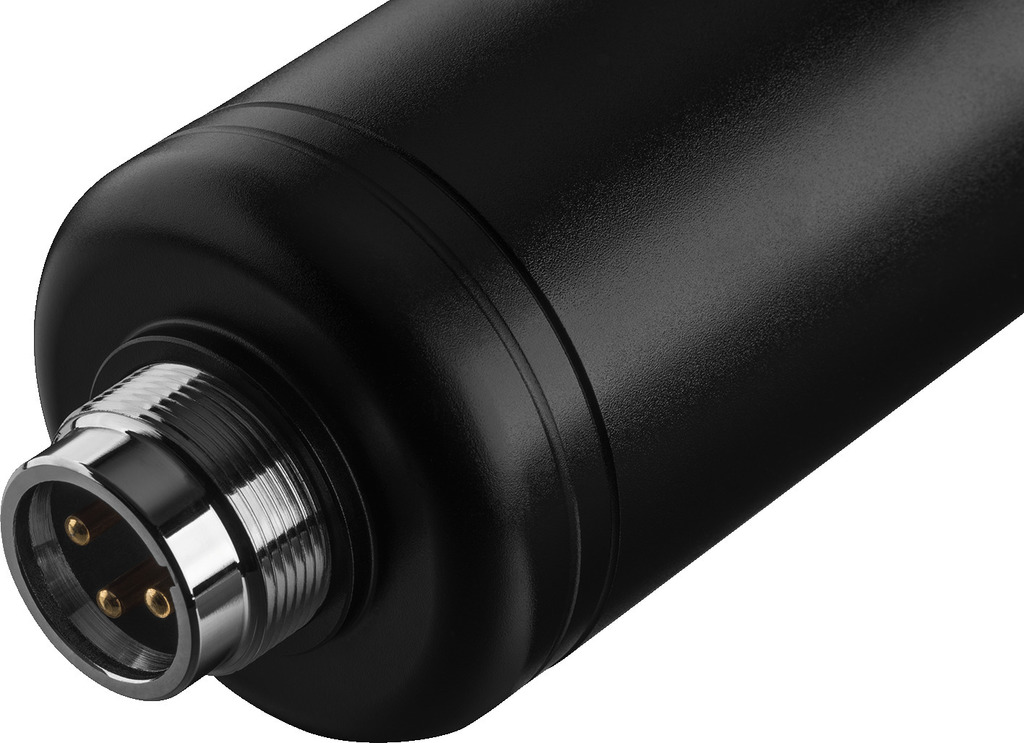

Connection	XLR, bal.
Packaging dimensions (W x H x L)	0.12 x 0.085 x 0.305 m
Gross weight	0.649 kg
Net weight	0.533 kg

EAN code	4007754259988
Net weight	0.533 kg

Downloads
