Order no.: 0163840

EDL-116TW

P2000

Order no.: 0163840

EDL-116TW

PA ceiling speaker

100 V transmission technology
15 cm (6") 2-way coaxial speaker
Metal housing with protective speaker grille
Power taps: 10/6/3/1.5 W
Quick-mounting facility with spring clips
Connection via spring-loaded terminal
For a ceiling thickness from 10 to 40 mm

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

continue

About

PA ceiling speaker

100 V transmission technology
15 cm (6") 2-way coaxial speaker
Metal housing with protective speaker grille
Power taps: 10/6/3/1.5 W
Quick-mounting facility with spring clips
Connection via spring-loaded terminal
For a ceiling thickness from 10 to 40 mm

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Specifications

Transmission technology	100 V
Frequency range	90-20,000 Hz
Power rating (RMS)	10/6/3/1.5 W
SPL	92 dB/W/m
Max. rated SPL	102 dB

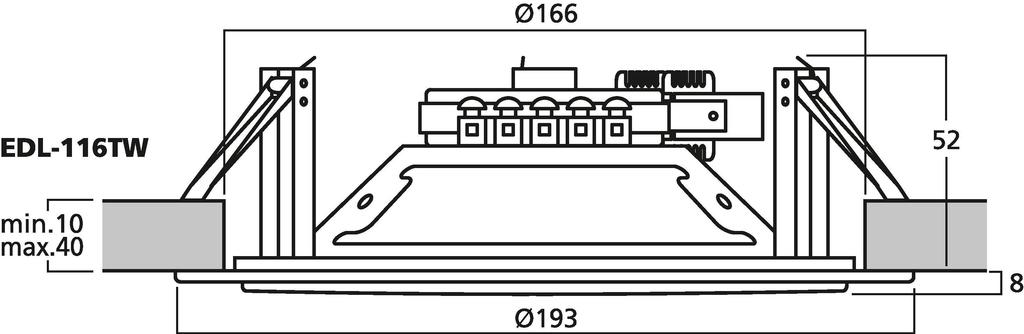

Mounting cutout	Ø 166 mm
Mounting depth	55 mm
Dimensions	Ø 195 mm x 55 mm
Outside diameter	Ø 195 mm
Width	Ø 195 mm
Height	Ø 195 mm
Depth	55 mm
Colour	white
Admiss. ambient temp.	0-40 °C
Weight	0.82 kg
Packing unit	1
Type of speaker	150
Packaging dimensions (W x H x L)	0.215 x 0.07 x 0.215 m
Gross weight	0.918 kg
Net weight	0.821 kg

EAN code	4007754266436
Net weight	0.821 kg
