Order no.: 0163850

EDL-118TW

P2000
Order no.: 0163850

EDL-118TW

PA ceiling speaker,
with integrated tweeter.
  • 100 V transmission technology
  • 20 cm (8") 2-way coaxial speaker
  • Metal housing with protective speaker grille
  • Power taps: 15/10/6/3 W
  • Quick-mounting facility with spring clips
  • Connection via spring-loaded terminal
  • For a ceiling thickness from 10 to 40 mm
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
continue

About

PA ceiling speaker,
with integrated tweeter.
  • 100 V transmission technology
  • 20 cm (8") 2-way coaxial speaker
  • Metal housing with protective speaker grille
  • Power taps: 15/10/6/3 W
  • Quick-mounting facility with spring clips
  • Connection via spring-loaded terminal
  • For a ceiling thickness from 10 to 40 mm
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Specifications

Transmission technology 100 V
Frequency range 90-20,000 Hz
Power rating (RMS) 15/10/6/3 W
SPL 94 dB/W/m
Max. rated SPL 106 dB

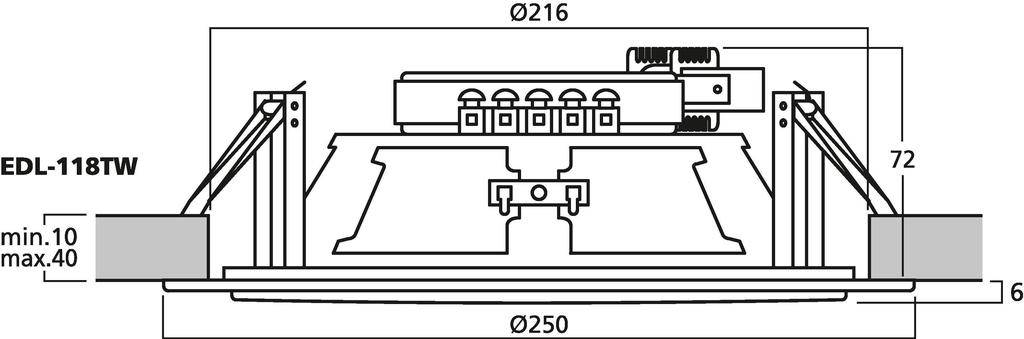

Mounting cutout Ø 216 mm
Mounting depth 85 mm
Dimensions Ø 252 mm x 85 mm
Outside diameter Ø 252 mm
Width Ø 252 mm
Height Ø 252 mm
Depth 85 mm
Colour white
Admiss. ambient temp. 0-40 °C
Weight 1.21 kg
Packing unit 1
Type of speaker 200er
Packaging dimensions (W x H x L) 0.255 x 0.08 x 0.265 m
Gross weight 1.34 kg
Net weight 1.208 kg
EAN code 4007754266443
Net weight 1.208 kg
