Order no.: 0162410

EDL-11TW/SW

P2000

Order no.: 0162410

EDL-11TW/SW

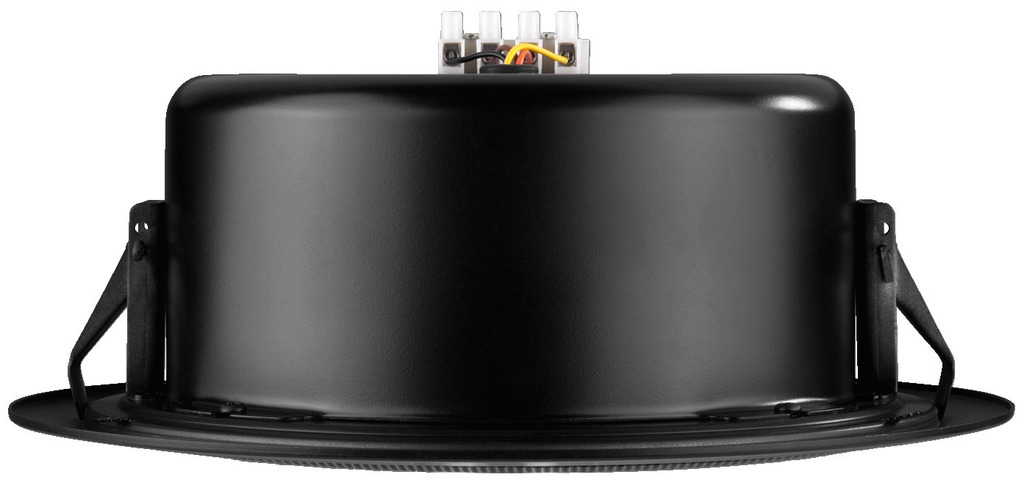

PA ceiling speaker

100 V transmission technology
Black metal housing
Including fire protection cover for a high safety level
Additional integrated tweeter
Quick-mounting facility
For a ceiling thickness from 3 to 20 mm

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

continue

About

PA ceiling speaker

100 V transmission technology
Black metal housing
Including fire protection cover for a high safety level
Additional integrated tweeter
Quick-mounting facility
For a ceiling thickness from 3 to 20 mm

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Specifications

Transmission technology	100 V
Frequency range	60-20,000 Hz
Power rating (RMS)	10/5/2.5 W
SPL	97 dB/W/m

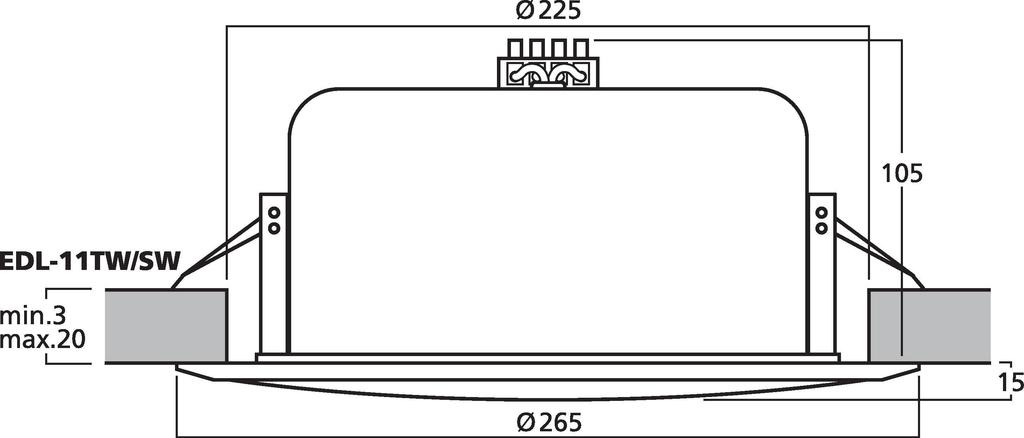

Mounting cutout	Ø 225 mm
Mounting depth	105 mm
Dimensions	Ø 264 mm x 120 mm
Outside diameter	Ø 264 mm
Width	Ø 264 mm
Height	Ø 264 mm
Depth	120 mm
Colour	black
Admiss. ambient temp.	0-40 °C
Weight	1.6 kg
Packing unit	1
Type of speaker	200
Packaging dimensions (W x H x L)	0.305 x 0.14 x 0.305 m
Gross weight	2.148 kg
Net weight	1.669 kg

EAN code	4007754203547
Net weight	1.669 kg

Downloads

Accessories for EDL-11TW/SW

Order no.: 0111340

JYSTY-2208

Signal line, type J-Y(St)Y, 4 x 0.5 mm2, 100 m

Intended use:
signal, 100 V PA, alarm, communication

Cable specification:
J-Y(ST)Y

Length:
100 m

Order no.: 0111340

JYSTY-2208

Signal line, type J-Y(St)Y, 4 x 0.5 mm2, 100 m
