Order no.: 0163830

EDL-18

P2000

Order no.: 0163830

EDL-18

PA ceiling speaker

100 V transmission technology
20 cm (8") full range speaker
Metal housing with protective speaker grille
Power taps: 10/6/3/1.5 W
Quick-mounting facility with spring clips
Connection via spring-loaded terminal
For a ceiling thickness from 10 to 40 mm

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

continue

About

PA ceiling speaker

100 V transmission technology
20 cm (8") full range speaker
Metal housing with protective speaker grille
Power taps: 10/6/3/1.5 W
Quick-mounting facility with spring clips
Connection via spring-loaded terminal
For a ceiling thickness from 10 to 40 mm

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Specifications

Transmission technology	100 V
Frequency range	90-16,000 Hz
Power rating (RMS)	10/6/3/1.5 W
SPL	94 dB/W/m
Max. rated SPL	106 dB

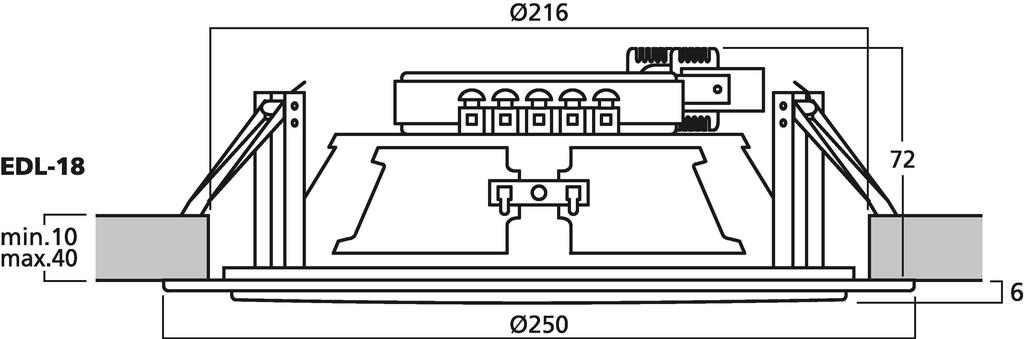

Mounting cutout	Ø 216 mm
Mounting depth	85 mm
Dimensions	Ø 252 mm x 85 mm
Outside diameter	Ø 252 mm
Width	Ø 252 mm
Height	Ø 252 mm
Depth	85 mm
Colour	white
Admiss. ambient temp.	0-40 °C
Weight	1.18 kg
Packing unit	1
Type of speaker	200er
Packaging dimensions (W x H x L)	0.255 x 0.085 x 0.265 m
Gross weight	1.345 kg
Net weight	1.183 kg

EAN code	4007754266115
Net weight	1.183 kg
