Order no.: 0161650

EDL-206

Order no.: 0161650

EDL-206

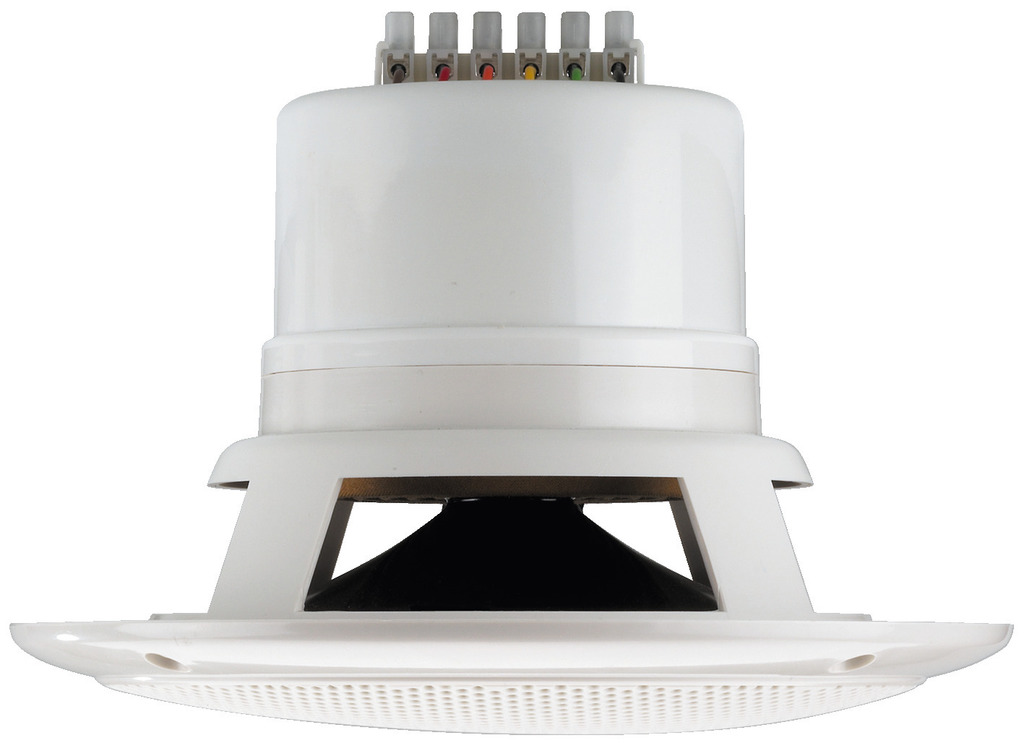

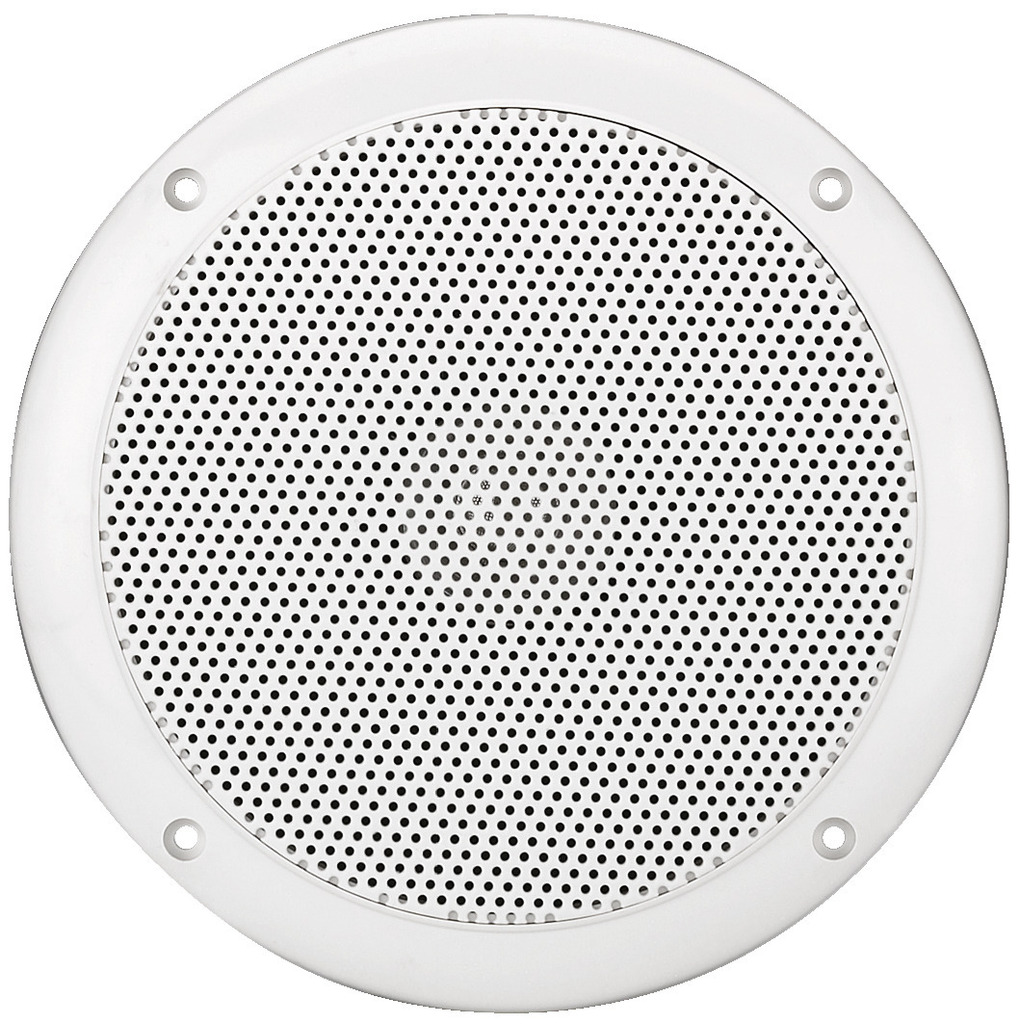

Weatherproof flush-mount PA speaker
  • 100 V transmission technology
  • Type 180 full range speaker with dual cone, perfect sound characteristics
  • Splashproof due to white one-piece plastic design, high-quality polypropylene cone with rubber surround
  • For indoor and outdoor applications
  • Supplied with stainless steel mounting screws
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

About

Weatherproof flush-mount PA speaker
  • 100 V transmission technology
  • Type 180 full range speaker with dual cone, perfect sound characteristics
  • Splashproof due to white one-piece plastic design, high-quality polypropylene cone with rubber surround
  • For indoor and outdoor applications
  • Supplied with stainless steel mounting screws
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Specifications

Transmission technology 100 V
Frequency range 85-18,000 Hz
Power rating (RMS) 20/15/10/5/2.5 W
SPL 90 dB/W/m

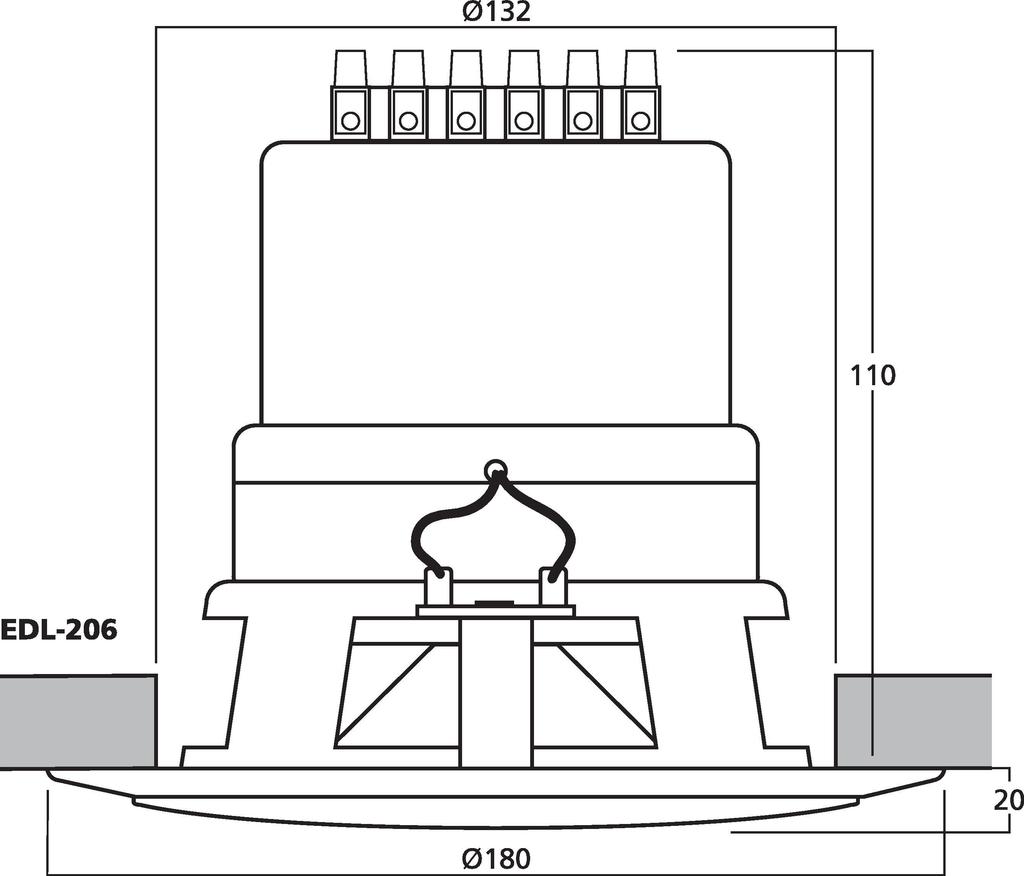

Mounting cutout Ø 132 mm
Mounting depth 110 mm
Dimensions Ø 180 mm x 130 mm
Outside diameter Ø 180 mm
Width Ø 180 mm
Height Ø 180 mm
Depth 130 mm
Colour white
Protective class IP44
Admiss. ambient temp. -30 °C to +40 °C
Weight 900 g
Packing unit 1
Type of speaker 180
Packaging dimensions (W x H x L) 0.19 x 0.155 x 0.185 m
Gross weight 1.048 kg
Net weight 0.9 kg
EAN code 4007754174960
Net weight 0.9 kg

Accessories for EDL-206

Intended use:
signal, 100 V PA, alarm, communication
Cable specification:
J-Y(ST)Y
Length:
100 m
Order no.: 0111340
Signal line, type J-Y(St)Y, 4 x 0.5 mm2, 100 m
