Order no.: 0162770

EDL-22/WS

P2000

Order no.: 0162770

EDL-22/WS

PA ceiling speaker,

small and compact design, with a very wide bandwidth reproduction.

100 V transmission technology
Quick-mounting facility
White plastic housing
For a ceiling thickness from 2 to 10 mm

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

continue

About

PA ceiling speaker,

small and compact design, with a very wide bandwidth reproduction.

100 V transmission technology
Quick-mounting facility
White plastic housing
For a ceiling thickness from 2 to 10 mm

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Specifications

Transmission technology	100 V
Frequency range	130-20,000 Hz
Power rating (RMS)	6/3/1.5 W
SPL	85 dB/W/m

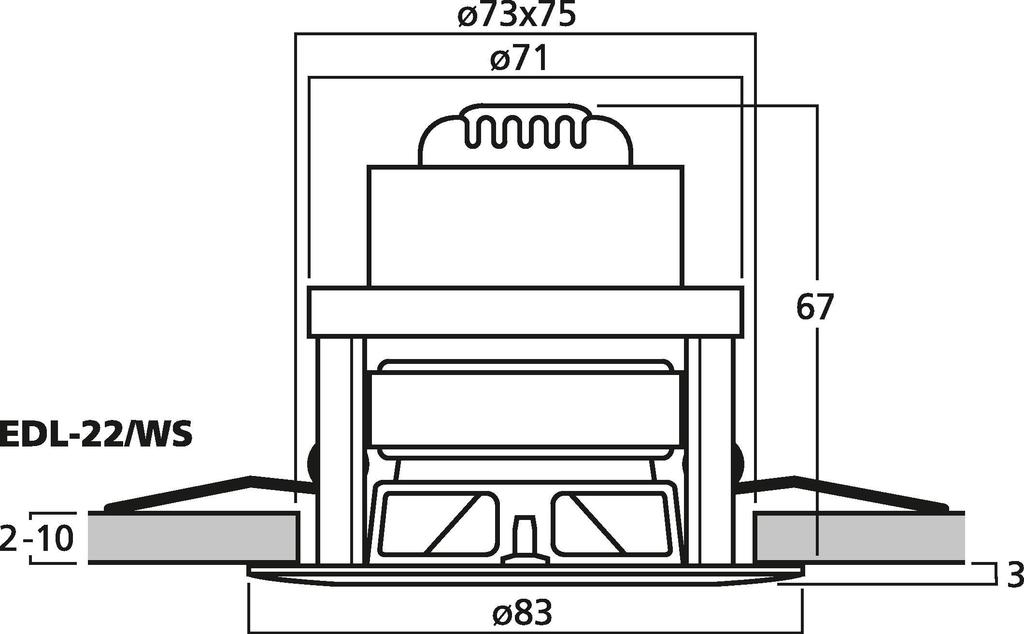

Mounting cutout	Ø 73 mm
Mounting depth	67 mm
Dimensions	Ø 83 mm x 70 mm
Outside diameter	Ø 83 mm
Width	Ø 83 mm
Height	Ø 83 mm
Depth	70 mm
Colour	white
Weight	325 g
Packing unit	1
Type of speaker	50
Packaging dimensions (W x H x L)	0.12 x 0.115 x 0.12 m
Gross weight	0.41 kg
Net weight	0.325 kg

EAN code	4007754217667
Net weight	0.325 kg

Downloads

Accessories for EDL-22/WS

Order no.: 0111340

JYSTY-2208

Signal line, type J-Y(St)Y, 4 x 0.5 mm2, 100 m

Intended use:
signal, 100 V PA, alarm, communication

Cable specification:
J-Y(ST)Y

Length:
100 m

Order no.: 0111340

JYSTY-2208

Signal line, type J-Y(St)Y, 4 x 0.5 mm2, 100 m
