Order no.: 0160860

EDL-255/WS

P2000

P1980

P1544

Order no.: 0160860

EDL-255/WS

PA sound projector

100 V transmission technology or 8 Ω operation
6-step power selector switch for 15/8/4/2 W/off or 8 Ω operation
White plastic housing with pivoting mounting bracket

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

continue

About

PA sound projector

100 V transmission technology or 8 Ω operation
6-step power selector switch for 15/8/4/2 W/off or 8 Ω operation
White plastic housing with pivoting mounting bracket

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Specifications

Active/passive	passive
Transmission technology	100 V or low-impedance
Total power rating	15 W
Power rating (RMS)	15/8/4/2 W
Impedance	8 Ω
Frequency range	100-15,000 Hz
Number of speakers	1
Speaker size	13 cm (5")
SPL	92 dB/W/m

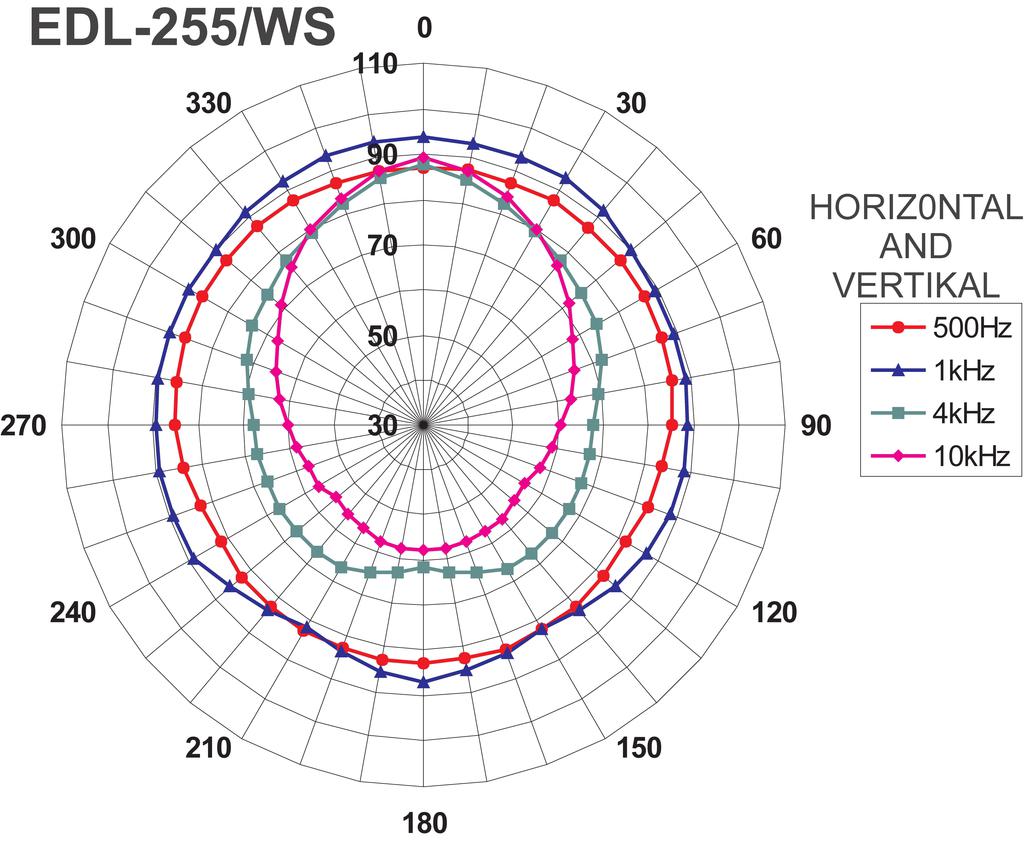

Radiation angle/beam angle	120°
Radiation angle, horizontal	120°
Radiation angle, vertical	120°
Housing material	plastic
Colour	white
Mounting device	mounting bracket
Admiss. ambient temp.	0-40 °C
Dimensions	Ø 180 mm x 280 mm
Width	Ø 180 mm
Height	Ø 180 mm
Depth	280 mm
Weight	2.59 kg
Inputs	cable connection
Packaging dimensions (W x H x L)	0.19 x 0.34 x 0.19 m
Gross weight	2.865 kg
Net weight	2.595 kg

EAN code	4007754064544
Net weight	2.595 kg

Downloads

Accessories for EDL-255/WS

Order no.: 0111340

JYSTY-2208

Signal line, type J-Y(St)Y, 4 x 0.5 mm2, 100 m

Intended use:
signal, 100 V PA, alarm, communication

Cable specification:
J-Y(ST)Y

Length:
100 m

Order no.: 0111340

JYSTY-2208

Signal line, type J-Y(St)Y, 4 x 0.5 mm2, 100 m
