Order no.: 0161450

EDL-26

Order no.: 0161450

EDL-26

PA ceiling speaker
  • 100 V transmission technology via audio transformer with power taps 10/5/2.5/1.25 W
  • Type 165 full range speaker with dual cone
  • Plastic housing with protective metal grille

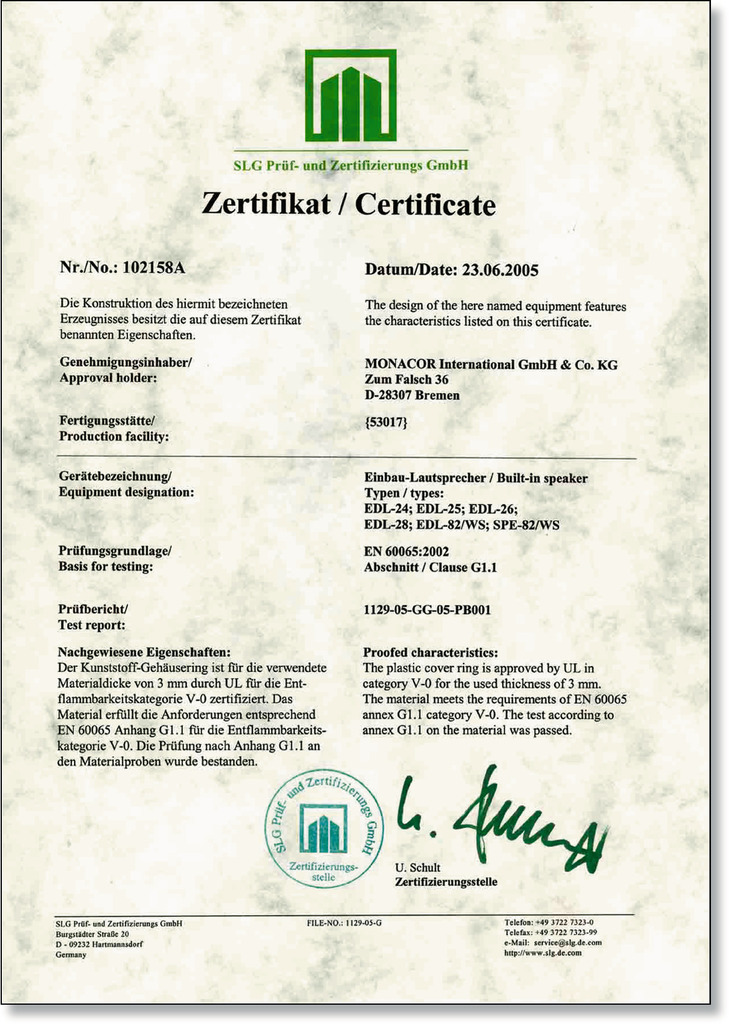

  • ABS plastic material, self-extinguishing according to UL 94V-0
  • For a ceiling thickness from 10 to 40 mm
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

About

PA ceiling speaker
  • 100 V transmission technology via audio transformer with power taps 10/5/2.5/1.25 W
  • Type 165 full range speaker with dual cone
  • Plastic housing with protective metal grille
  • ABS plastic material, self-extinguishing according to UL 94V-0
  • For a ceiling thickness from 10 to 40 mm
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Specifications

Transmission technology 100 V
Frequency range 80-14,000 Hz
Power rating (RMS) 10/5/2.5/1.25 W
SPL 86 dB/W/m
Max. rated SPL 95 dB

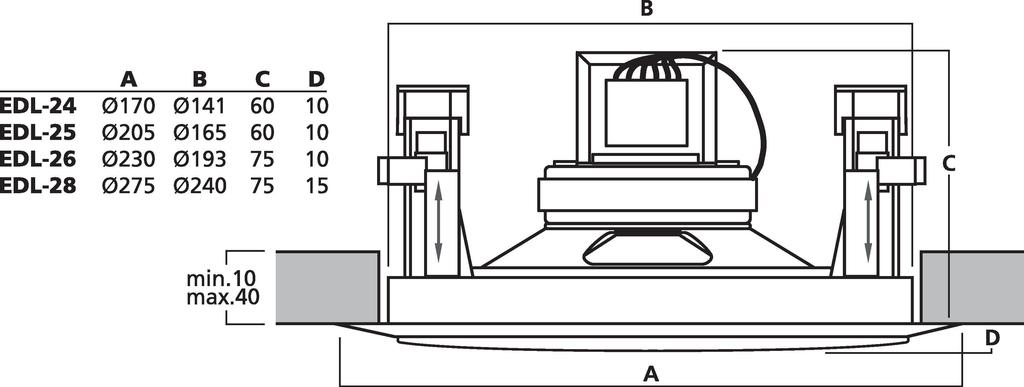

Mounting cutout Ø 200 mm
Mounting depth 75 mm
Dimensions Ø 230 mm x 85 mm
Outside diameter Ø 230 mm
Width Ø 230 mm
Height Ø 230 mm
Depth 85 mm
Colour white
Admiss. ambient temp. 0-40 °C
Weight 0.922 kg
Packing unit 1
Type of speaker 165
Packaging dimensions (W x H x L) 0.23 x 0.09 x 0.23 m
Gross weight 1.07 kg
Net weight 0.922 kg
EAN code 4007754156706
Net weight 0.922 kg

Accessories for EDL-26

Intended use:
signal, 100 V PA, alarm, communication
Cable specification:
J-Y(ST)Y
Length:
100 m
Order no.: 0111340
Signal line, type J-Y(St)Y, 4 x 0.5 mm2, 100 m
