Order no.: 0161880

EDL-420/WS

P2000 P1980 P1330 P1283
Order no.: 0161880

EDL-420/WS

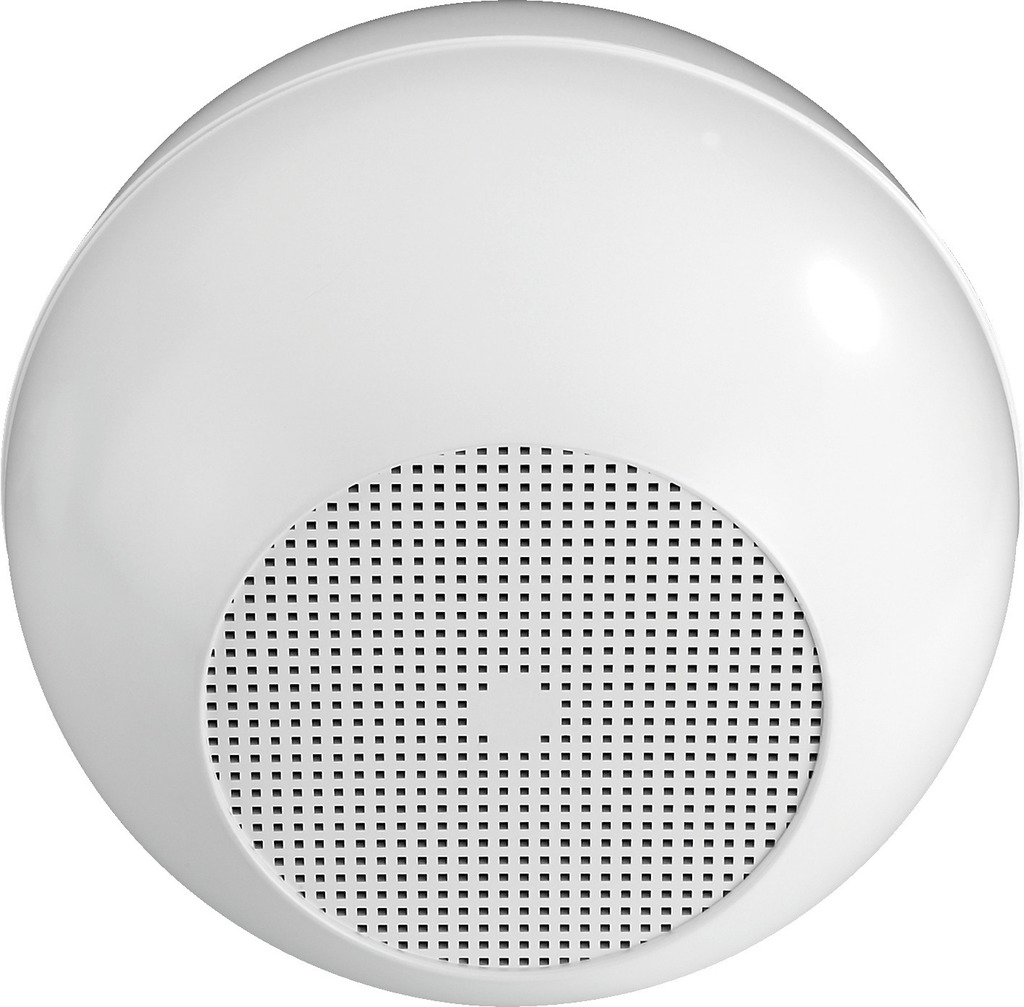

Weatherproof PA ball speaker
  • 100 V transmission technology or 8 Ω operation
  • White ABS housing (self-extinguishing, complies with standard UL 94V-0)
  • Supplied with 480 cm connection cable and canopy
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
continue

About

Weatherproof PA ball speaker
  • 100 V transmission technology or 8 Ω operation
  • White ABS housing (self-extinguishing, complies with standard UL 94V-0)
  • Supplied with 480 cm connection cable and canopy
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Specifications

Active/passive passive
Transmission technology 100 V or low-impedance
Total power rating 20 W
Power rating (RMS) 20/10/5 W
Impedance 8 Ω
Frequency range 120-20,000 Hz
Full range speaker 160 mm (6")
Number of speakers 1
Speaker size 15 cm (6")
SPL 94 dB/W/m

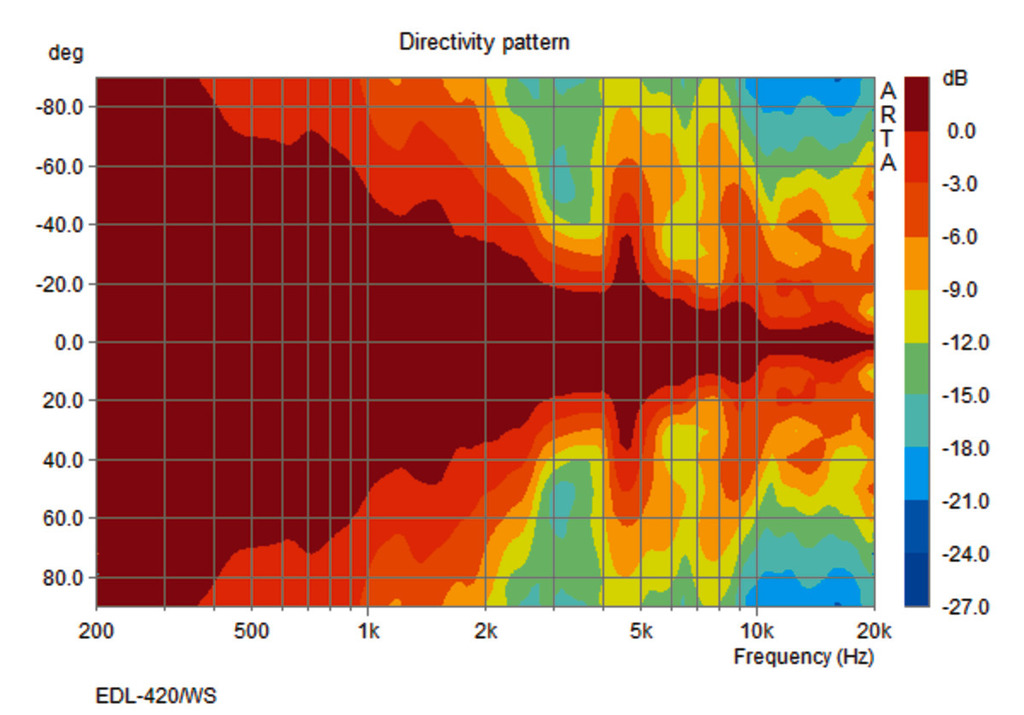

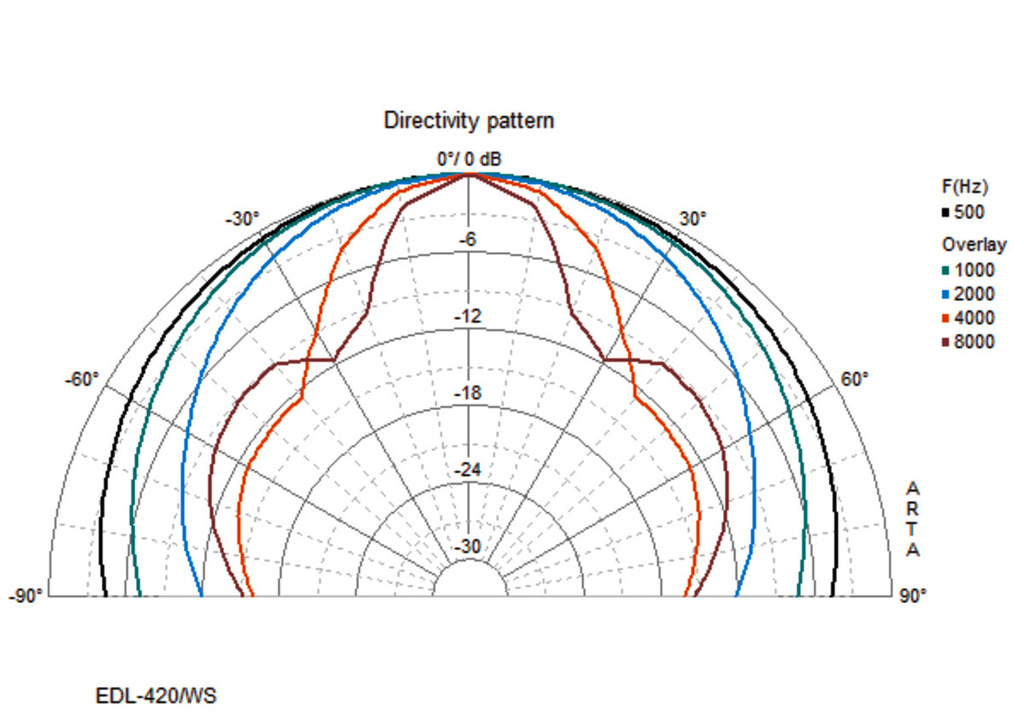

Radiation angle/beam angle 100°
Radiation angle, horizontal 100°
Radiation angle, vertical 100°
Housing material ABS, UL 94 V-0
Colour white
Mounting device cable with canopy
Admiss. ambient temp. -30 °C to +40 °C
Dimensions Ø 265 mm
Width Ø 265 mm
Height Ø 265 mm
Depth 265 mm
Weight 2.3 kg
Inputs cable connection
Packaging dimensions (W x H x L) 0.305 x 0.28 x 0.38 m
Gross weight 2.84 kg
Net weight 2.34 kg
EAN code 4007754189148
Net weight 2.34 kg

Downloads

Accessories for EDL-420/WS

Intended use:
signal, 100 V PA, alarm, communication
Cable specification:
J-Y(ST)Y
Length:
100 m
Order no.: 0111340
JYSTY-2208
Signal line, type J-Y(St)Y, 4 x 0.5 mm2, 100 m
