| Transmission technology | 100 V |
| Frequency range | 90-18,000 Hz |
| Power rating (RMS) | 8 W |
| SPL | 90 dB/W/m |
| Max. rated SPL | 99 dB |
| Radiation angle, horizontal | 90° |
| Radiation angle, vertical | 90° |
| Voice coil diameter | Ø 20 mm |

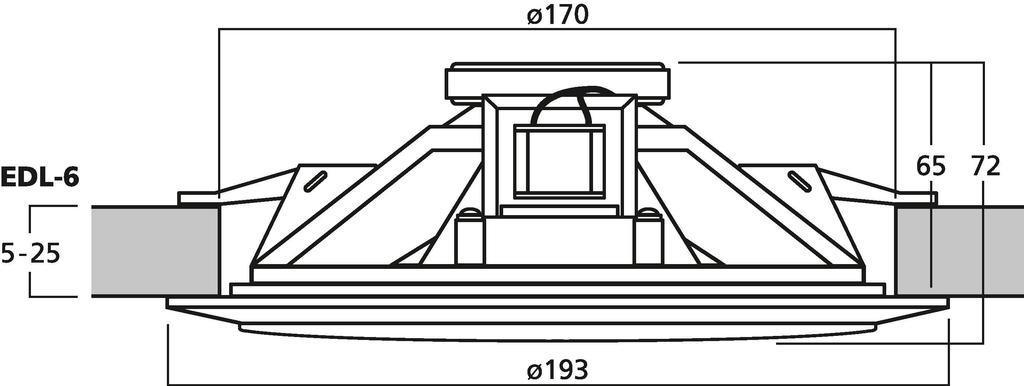

| Mounting cutout | Ø 170 mm |
| Mounting depth | 65 mm |
| Dimensions | Ø 193 mm x 72 mm |
| Outside diameter | Ø 193 mm |
| Width | Ø 193 mm |
| Depth | 72 mm |
| Colour | white |
| Admiss. ambient temp. | 0-40 °C |
| Weight | 476 g |
| Packing unit | 1 |
| Type of speaker | 150 |
| Packaging dimensions (W x H x L) | 0.075 x 0.19 x 0.196 m |
| Gross weight | 0.542 kg |
| Net weight | 0.476 kg |
| EAN code | 4007754276985 |
| Net weight | 0.476 kg |
